Swath XL
Software Version 3.00
3-51 Chapter 3 - Real-Time Guidance
The Headland Pattern Option

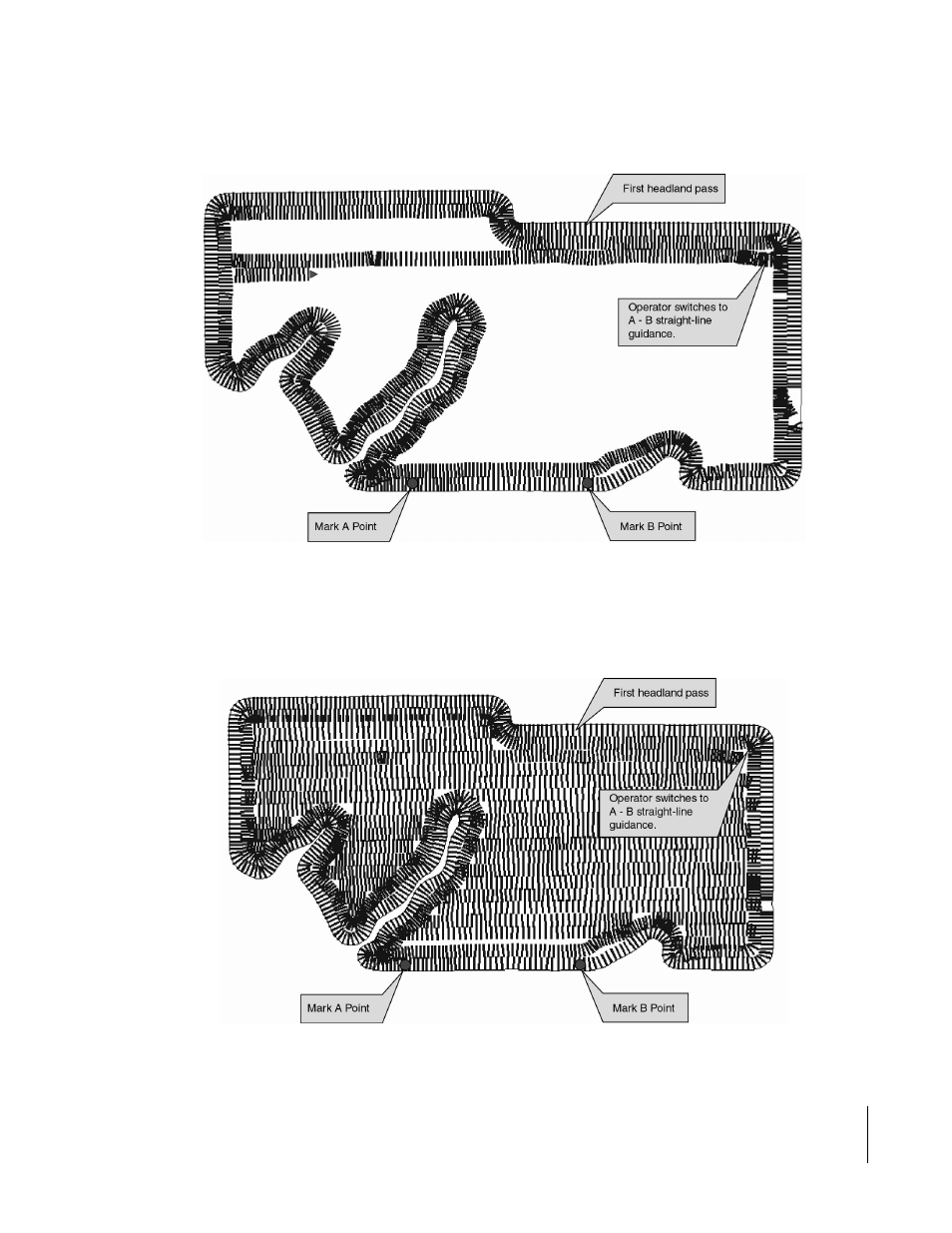

Figure 3-65 shows the completed field. Notice there are several areas of the field where the operator turned spray off
to avoid double application on previously applied areas.
Figure 3-64: Product Application using Straight-line Parallel Guidance.
Figure 3-65: Completed Field Application Using Headland Pattern.
