Swath XL
Software Version 3.00
4-27 Chapter 4 - Waypoint Navigation
Nav 2 Point Real-Time Scenarios
Once the setup process is complete and Nav 2 Point has been started, a file name dialog appears prior to starting the
real-time process and displaying the view page. In this example, the only file name information required is the bound-
ary file name.
Once the boundary file is named the user selects GO and starts the real-time process. Figure 4 -28 shows the real-time
view page. The left side shows the user preparing to start the boundary mapping process. The Map boundary icon is
highlighted and the keys is pressed. The map boundary icon changes and the user starts mapping the field bound-
ary (right side). Notice that the antenna offset is shown with respect to the vehicle.

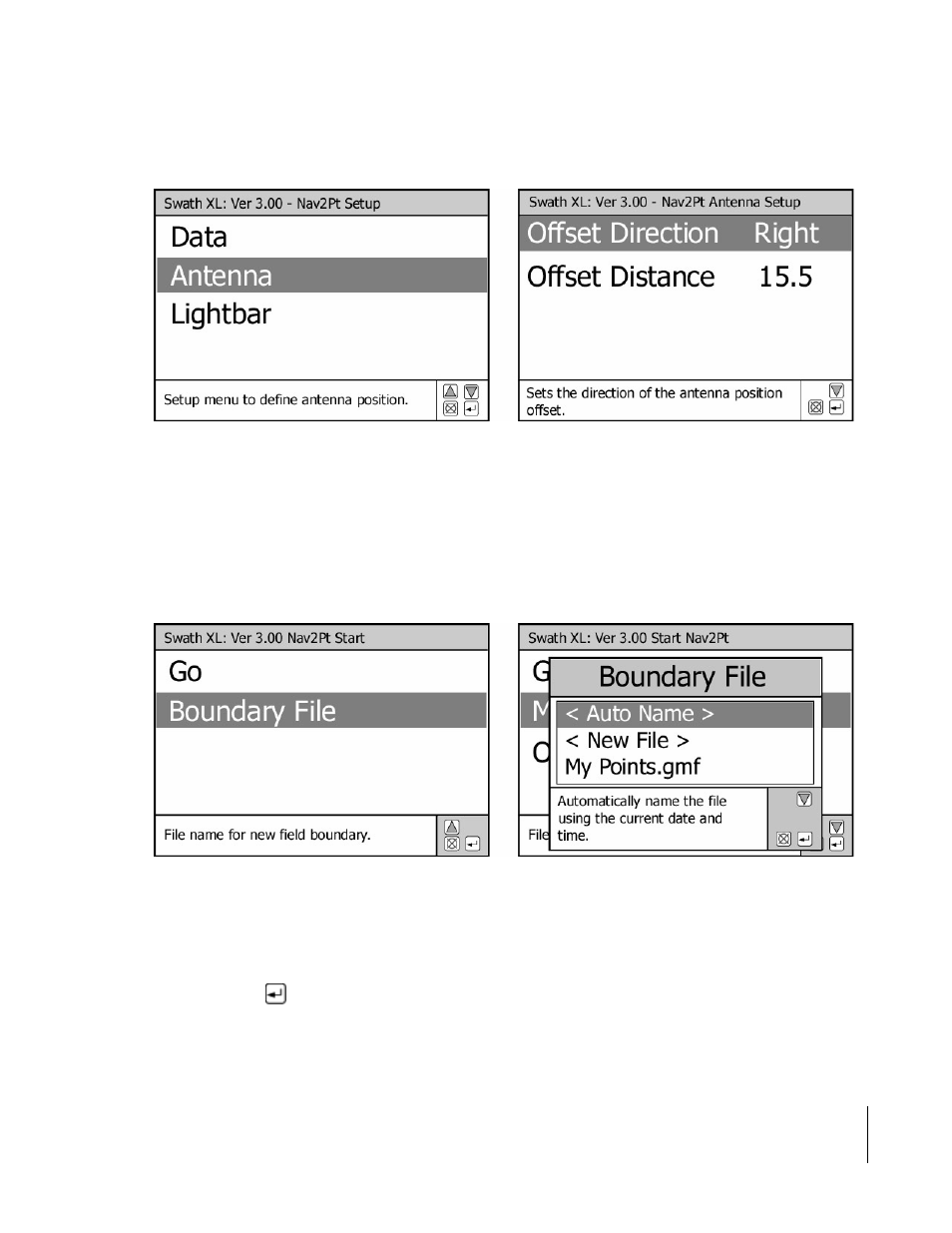

Figure 4-26: Antenna Offset for Mapping a Field Boundary
Figure 4-27: Boundary File Name Dialog
