4-25 Chapter 4 - Waypoint Navigation
About Nav 2 Point Real-Time Navigation
COG View
In the COG view, the vehicle position (anchor point) is 1/3 up and centered in the width of the view portion of the
real-time page and the ground (map) moves beneath the vehicle. The direction of the vehicle is always to the top of
the view. Figure 4 -24 is the same scenario as in Figure 4 -23, now in the COG view. It shows the vehicle navigating
to Sample Point # 12. In this figure the operator is headed directly towards the point.

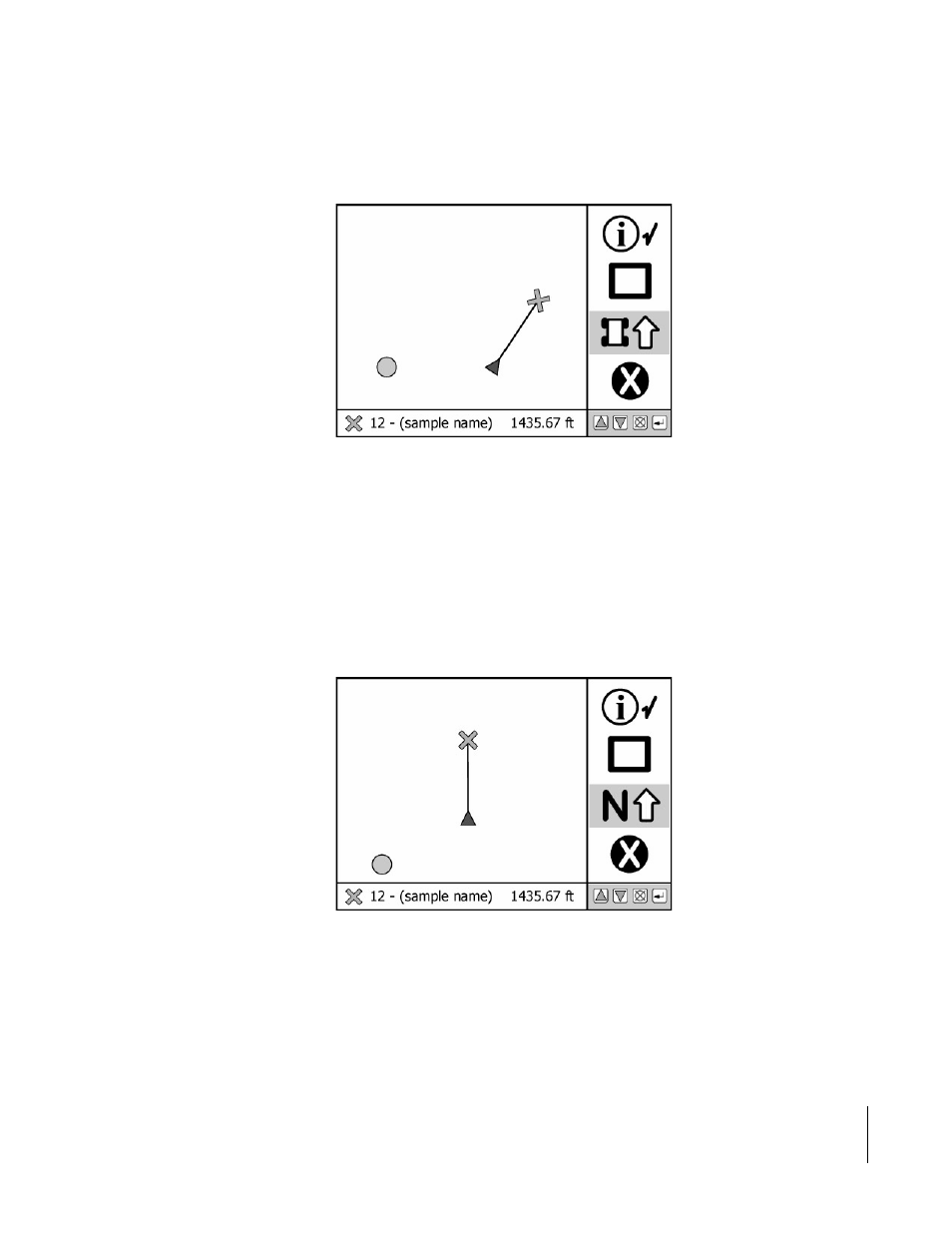

Figure 4-23: North Up View
Figure 4-24: COG View
