Lightbar Setup
Curved MSG
The Lightbar setup menu item Curved MSG allows the user to select from a set of predetermined guidance informa-
tion messages. This message is displayed in the lightbar text window during curved guidance operations only. This
message is activated when the Headland or Circle Pivot guidance pattern is selected. See Table 3-9 for a list of avail-
able messages.
To change the Curved MSG setting, highlight the Curved MSG menu item and press . The Curved MSG dialog
box appears. Select the desired message using the arrow keys . Once the desired message is selected, press
to return to the Lightbar setup menu, see Figure 3-30

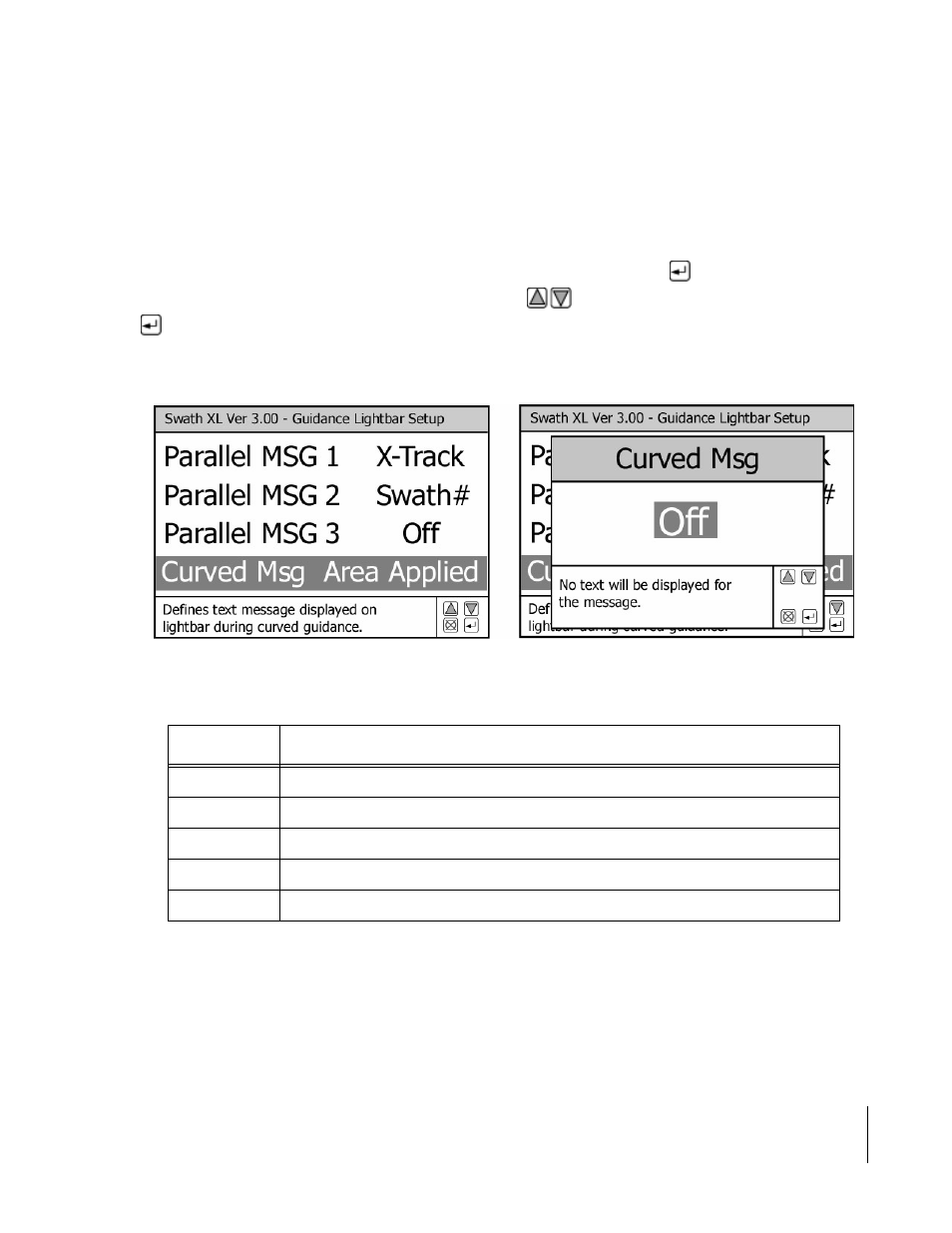

Figure 3-30: The Curved MSG Menu Item
Message Description
X-Track Displays the error (in distance) between the current guideline and the vehicle position.
Ground Speed Displays the vehicles ground speed.
Area Applied Displays the amount of area covered, sprayed or spread in acres or hectares.
COG Course on Ground, displays the vehicle heading in degrees.
Off When Off is selected no message is displayed in this message slot.
Table 3-9: Curved Message Options
