Swath XL
Software Version 3.00
3-27 Chapter 3 - Real-Time Guidance
Data Setup
Data Setup
The Data Setup menu page contains menu items that allow you to set up how you would like to create and store data
during the real - time portion of Swath XL. There are three menu items under data; As Applied, Boundary, and Map
Objects, see Figure 3-33 and Table 3-10. All of these menu fields directly affect how fast the you can start guidance.
For instance, if you decide you do not want to store any data or map any objects and do not want to show a boundary,
then you simply select Start Guidance and press in the main menu and the real time guidance process begins. If
you elect to do any of the three menu items, then you are prompted for a file name or other related information once
the Start Guidance process is implemented. There are some examples of how this process works described below.
Data can not be recorded without a memory card in the Smartpad PC-card slot.
To access the Data menu page, highlight the Setup menu item in the Main menu page and press . This takes you to
the Setup menu page, see Figure 3-32. Within the Setup Menu select the Data menu item using the arrow keys
. Press to enter the Data menu page. Once in the Data menu page, you can change any of the Data menu
items by highlighting the desired menu item and pressing .

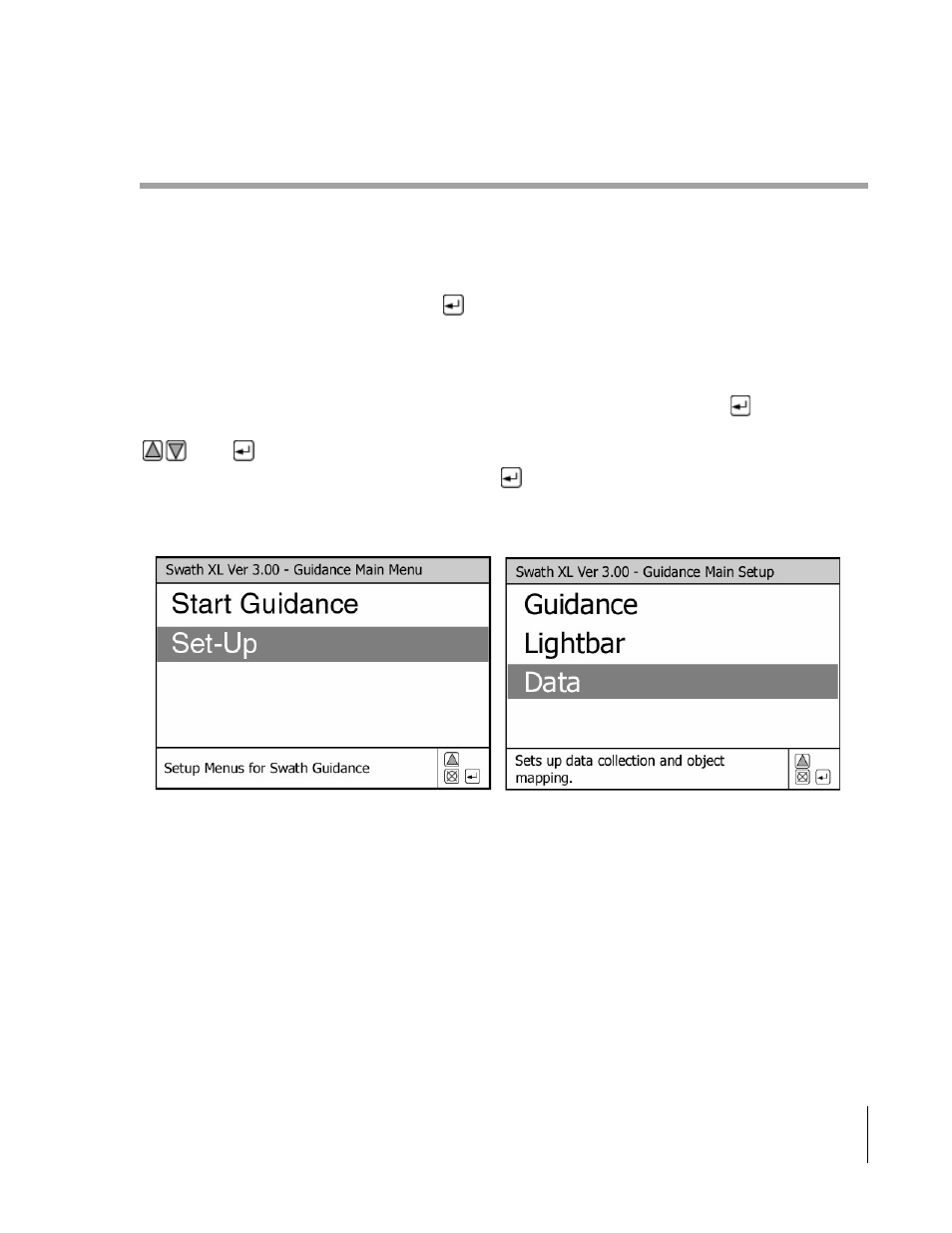

Figure 3-32: The Data Menu Page
