3-71 Chapter 3 - Real-Time Guidance
Lightbar Index
Hazard Detection: The name of the hazard is displayed
when the vehicle is approaching an existing hazard. Note
the Red stop lights are illuminated indicating the final warn-
ing. See “Hazard Detection” on page 3-67.
Mapping Boundary: This message is displayed when the
user is mapping the field boundary. The arrow symbol on
the left indicates the field boundary is on the left side of the
vehicle. See “Creating a Field Boundary” on page 3-61.
Mapping Boundary: This message is displayed when the
user is mapping the field boundary. The arrow symbol on
the right indicates the field boundary is on the right side of
the vehicle. See “Creating a Field Boundary” on page 3-61.
System Warning: The message is displayed when there is
loss of GPS differential corrections. Guidance calculations
are stopped until differential corrections resume.
System Warning: This message is displayed when there is a
complete loss of GPS signal to the GPS receiver or Smart-
pad. Guidance calculations are stopped until DGPS signal
resumes.
Lightbar Version Message: This message is displayed when
the user runs the Lightbar Test. M 4 indicates the lightbar
model number and the 2.0 indicates the lightbar protocol
version number. This number varies and is based on lightbar
version and model.

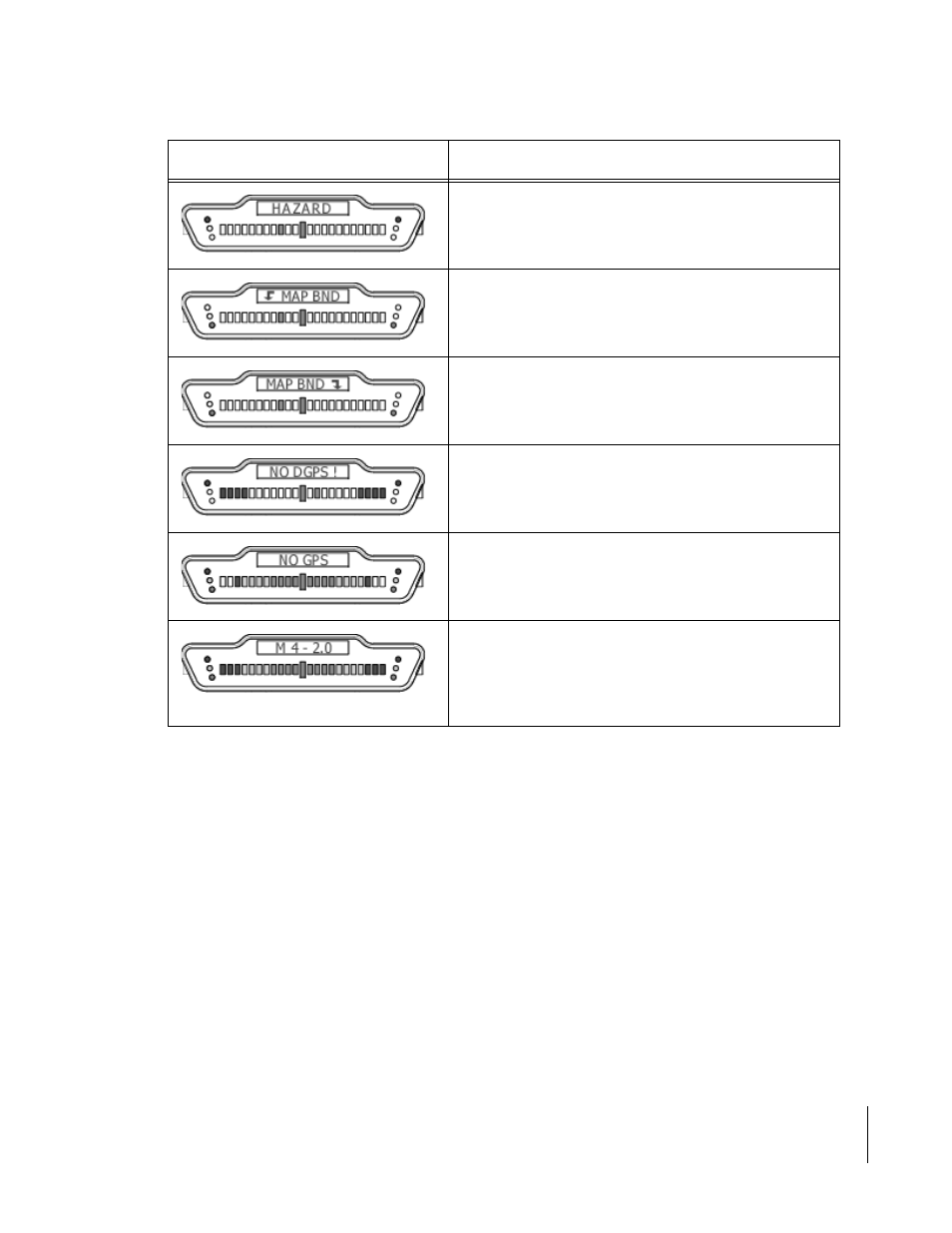

Lightbar State Description
Table 3-15: Swath XL Lightbar Index
