Direction to swath – TeeJet Swath XL User Manual
Page 58

Chapter 3 - Real-Time Guidance
3-10
Guidance Setup
Swath XL
Software Version 3.00
Direction to Swath
The guidance parameters, Direction to Swath and Distance to Swath, are used to define the spatial relationship
between the GPS antenna and the product delivery location. Examples of a product delivery location would be the
boom on a sprayer or the spinner box on a fertilizer spreader. The position of the swath with respect to the GPS
antenna is used to accurately create an As Applied map. The Direction to Swath parameter defines the direction from
the GPS antenna to the delivery location, see Figure 3-10. The GPS antenna should always be mounted on the center-
line of the vehicle.
To change the Direction to Swath value, highlight the Direction to Swath menu item and press
. The Direction to
Swath dialog box appears. Select the desired position value using the arrow keys
. Once the desired position is
selected, press
to return to the Guidance setup menu, see Figure 3-11

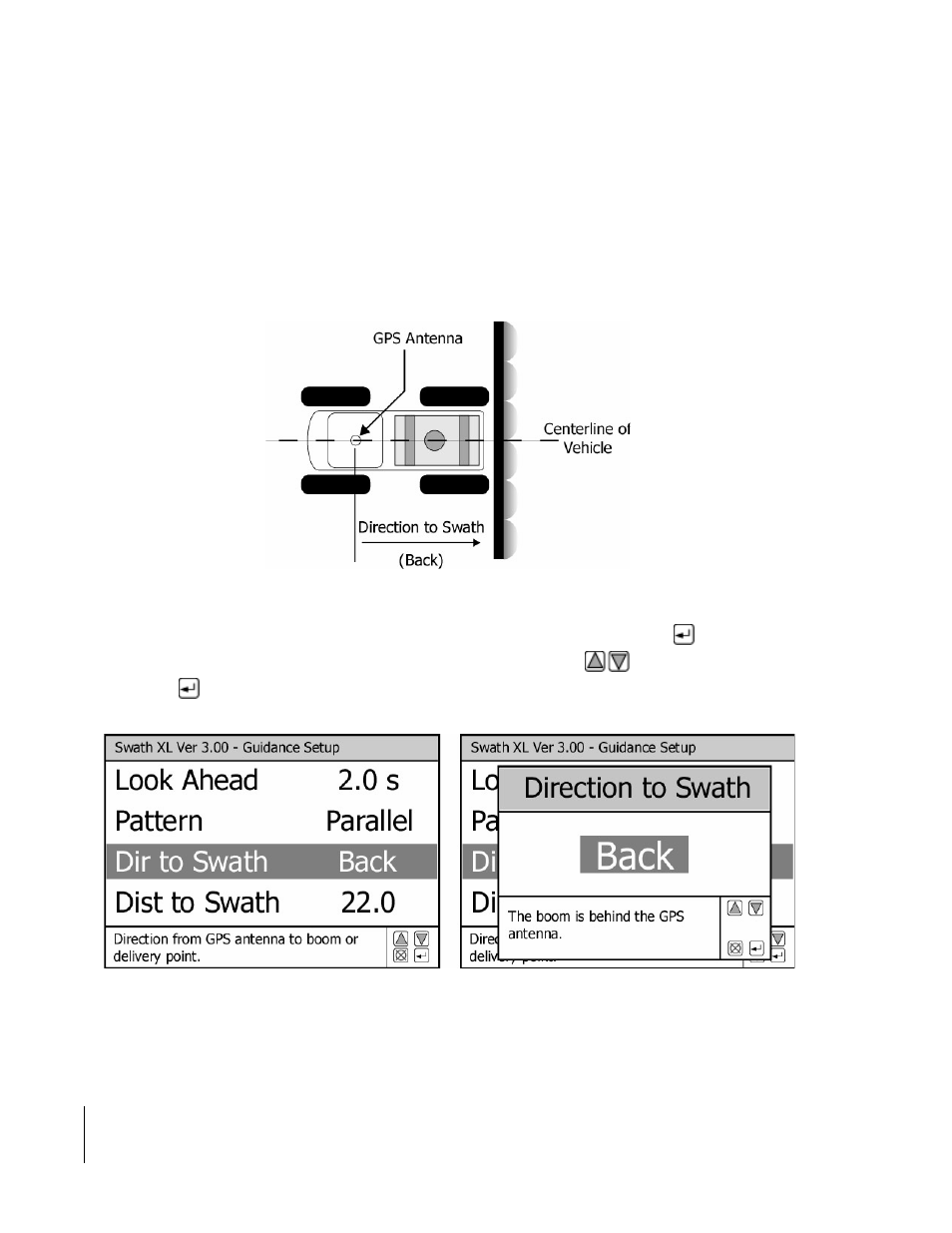

Figure 3-10: Example of Direction to Swath
Figure 3-11: The Direction to Swath Menu Item
