Swath XL
Software Version 3.00
3-17 Chapter 3 - Real-Time Guidance
Lightbar Setup
Display Mode
The Lightbar Display Mode setting defines how the user interprets the row of LEDs located on the lightbar. The cen-
ter stack of Green LEDs can represent either the current guideline or the vehicle, see Table 3-4.
To change the Display Mode setting, highlight the Display Mode menu item and press . The Display Mode dialog
box appears. Select the desired setting using the arrow keys . Once the desired setting is selected, press to
return to the Lightbar setup menu, see Figure 3-20.

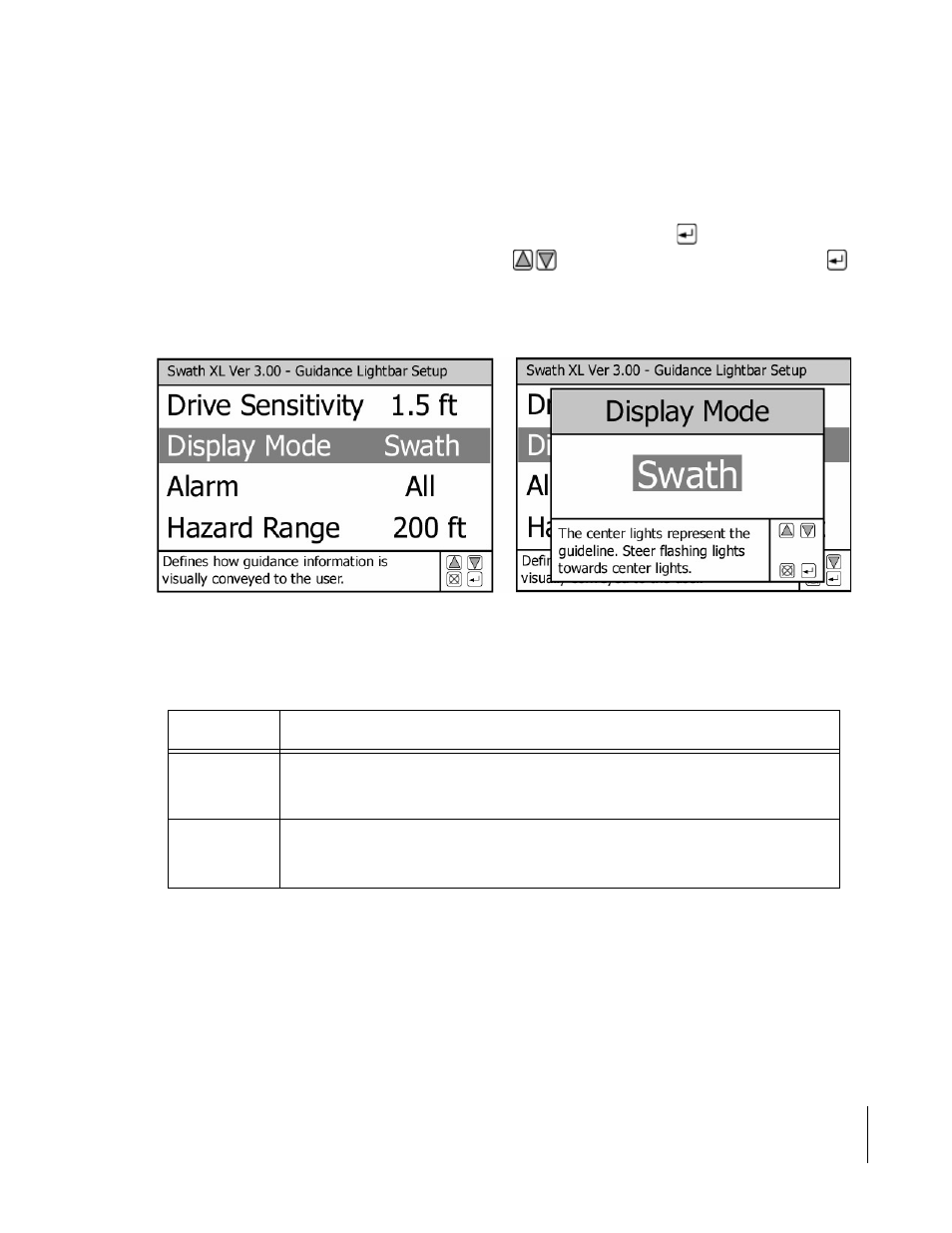

Figure 3-20: The Display Mode Menu Item
Setting Description
Swath When Display Mode is set to Swath, the center stack of Green LEDs represents the cur-
rent guideline. In this mode steer the vehicle to bring the moving LED back to center,
see Figure 3-21.
Vehicle When Display Mode is set to Vehicle, the center stack of Green LEDs represents the
vehicles position. In this mode steer the vehicle to bring the center lights towards the
moving LED, see Figure 3-22.
Table 3-4: Display Mode Settings
