Data Setup
Map Object
The Map Object menu item provides the ability to map points in the field during the real-time guidance process.
There is a selection of several point types, or select Off, see Table 3-13. For object selections, named point and named
hazard, you are prompted for the object name once the Start Guidance menu item is pressed.
To change the Map Object setting, highlight the Map Object menu item and press . The Map Object dialog box
appears. Select the desired setting using the arrow keys . Once the desired setting is selected, press to
return to the Data setup menu, see Figure 3-36.

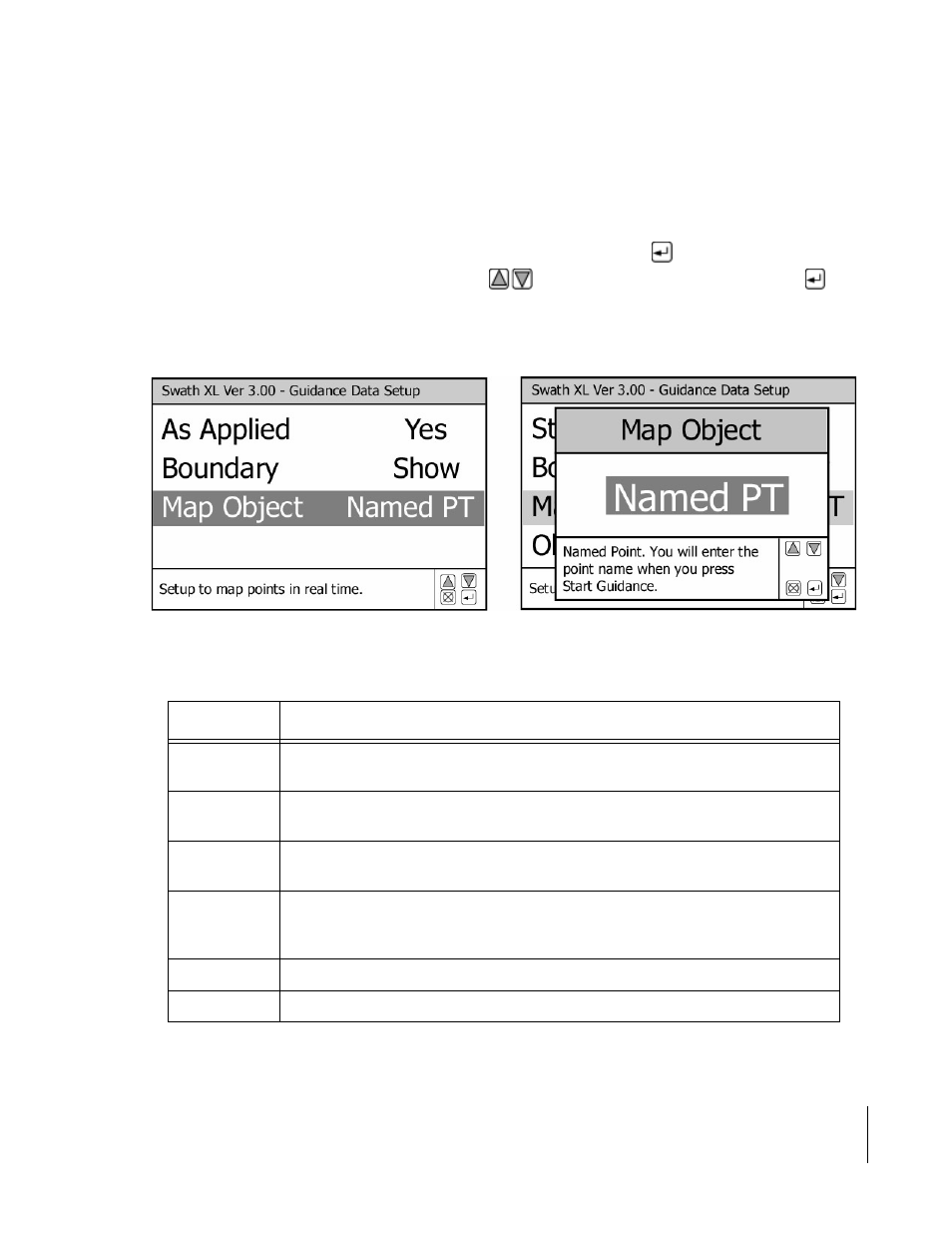

Figure 3-36: The Map Object Menu Item
Setting Description
Point Map points in real time and enter a point name each time a point is mapped. You are
prompted for a file name, existing or new, at the beginning of guidance.
Named Point Enter the point name at the beginning of guidance and map points all named the same.
You are prompted for a file name, existing or new, at the beginning of guidance.
Hazard Map hazards in real time and enter a hazard name each time a hazard is mapped. You
are prompted for a file name, existing or new, at the beginning of guidance.
Named Hazard Enter the name of the hazard object at the beginning of guidance and map hazards all
with the same name. You are prompted for a file name, existing or new, at the begin-
ning of guidance. Hazard name is displayed on lightbar.
Show Shows an existing file containing points and hazards. No object mapping.
Off No object mapping or file viewing.
Table 3-13: The Map Object Menu Item Settings
