Chapter 3 - Real-Time Guidance 3-36
Data Setup
Swath XL
Software Version 3.00
Example 4: Setting up the Point and Hazard Mapping Objects
This example describes how to setup Swath XL to map point objects while running guidance. Refer to “Map Object”
on page 3-31 for a detailed description of what type of objects can be selected and how to select an object in the Data
menu. In this example, a Named Point was selected in the Data menu, as shown in Figure 3-45. Once the type of map-
ping object is selected in the data menu, move to the Main menu page using . From the main menu page highlight
the Start Guidance menu item and press .
Because a Named point object is selected, there are two additional menu items, Map File and Object Name, located in
the Start Guidance menu page, see Figure 3-46.

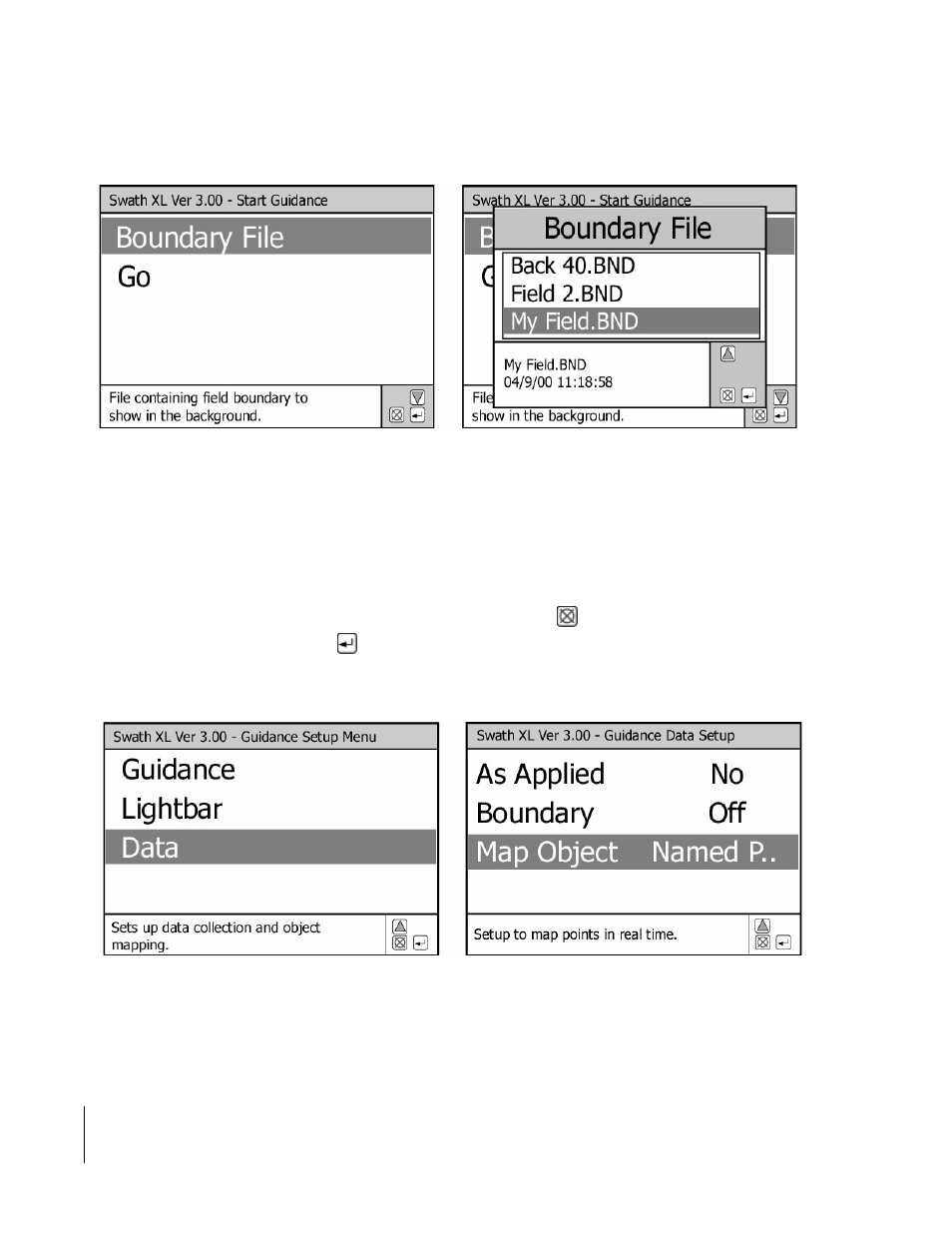

Figure 3-44: Selecting an Existing Boundary File to Show in the Background
Figure 3-45: Selecting a Named Point in Data Setup.
