Chapter 3 - Real-Time Guidance 3-44
The Parallel Pattern Option
Swath XL
Software Version 3.00
The Parallel Pattern Option
This section describes how to run swath guidance when the Parallel pattern option is selected. The first step is to
establish the initial A-B guideline. This initial baseline is used to calculate all other guidelines parallel to it. It is
assumed that the Swath XL setup described in Chapter 2 is complete and the Guidance Setup Pattern option selected
is Parallel.
Mark Point A
To mark the initial point A, begin driving along the first swath path. Typically this would be along a straight edge of a
field boundary. Figure 3-53 shows the vehicle driving along the initial swath. The lightbar in this figure displays the
MARK A message. This message appears until the guideline point A is established. To establish the guideline point
A, highlight the A button in the button bar and press , Figure 3-54.
Figure 3-54 shows the guideline point A in the view page. Note the A button in the button bar automatically changes

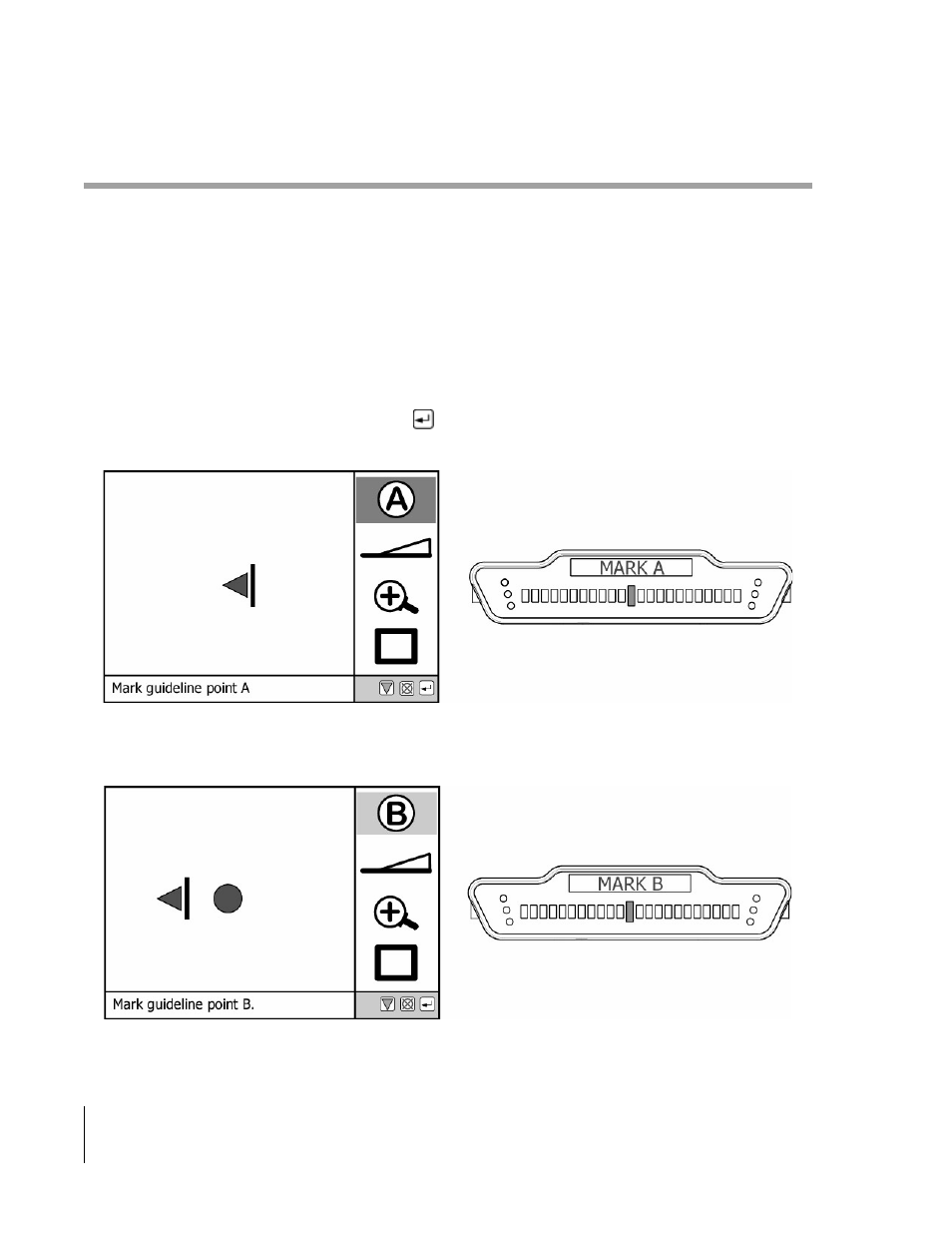

Figure 3-53: Establishing the Initial Guideline
Figure 3-54: Guideline Point A Marked
