TeeJet Swath XL User Manual
Page 110

Chapter 3 - Real-Time Guidance
3-62
Creating a Field Boundary
Swath XL
Software Version 3.00
Typically you also want to apply product and establish the initial guideline while driving the field perimeter. Figure 3-
83 shows the vehicle creating the field boundary while establishing the initial guideline and applying product. Notice
that the Map Boundary button has changed states. If the
is pressed now, Swath XL stops mapping the field
boundary.
Figure 3-84 shows the vehicle just about to complete driving the field perimeter. The initial guideline is established
and a product application map is also being created while mapping the field boundary. When the vehicle approaches
the starting point (within approximately 15 m) of the field boundary the boundary automatically closes and the Map
Boundary button changes back to Off.

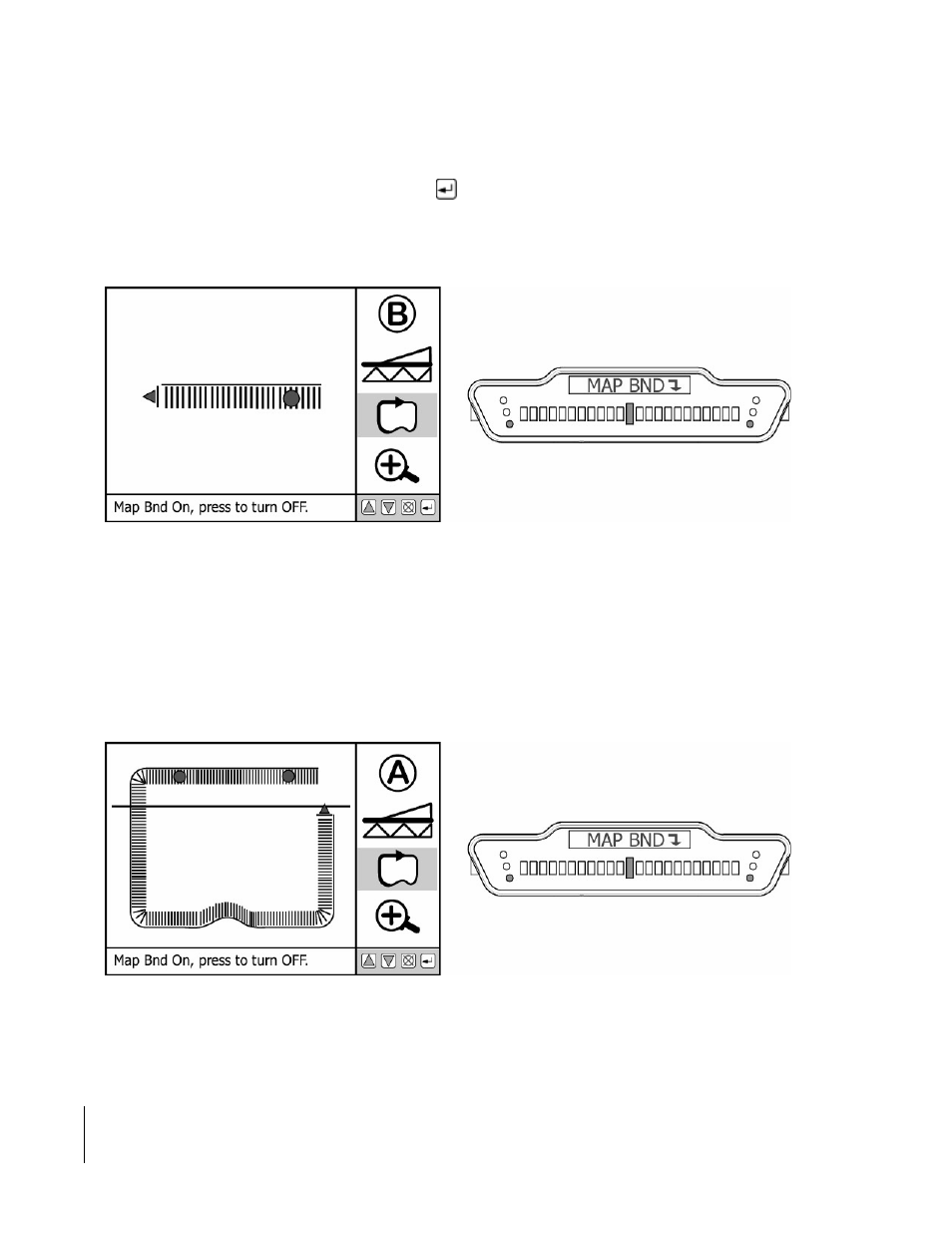

Figure 3-83: Mapping Field Boundary, Applying Product and Establishing Guideline
Figure 3-84: Completing the Field Boundary
