4-29 Chapter 4 - Waypoint Navigation
Nav 2 Point Real-Time Scenarios
Dropping a Sample Point
In this example, the operator wants to drive around in a field and pull soil samples. The only information available is
the field boundary. There is no soil sample grid or previously defined points in a data file. The Data Setup menu page
is shown in Figure 4 -30. The operator would like to automatically increment the sample number and be prompted for
a sample name.
The operator also offsets the antenna over the soil probe located at the back of his pickup truck. See Figure 4 -31 for
the Antenna Offset menu page.
Once the setup process is completed and the operator has selected Start Nav 2 Point they are presented with the Start
Nav 2 Point page shown in Figure 4 -32. In this page the operator must enter a name for the point/grid file as well as
enter the starting sample point number, Figure 4 -33. Once these steps are completed, the operator selects Go and

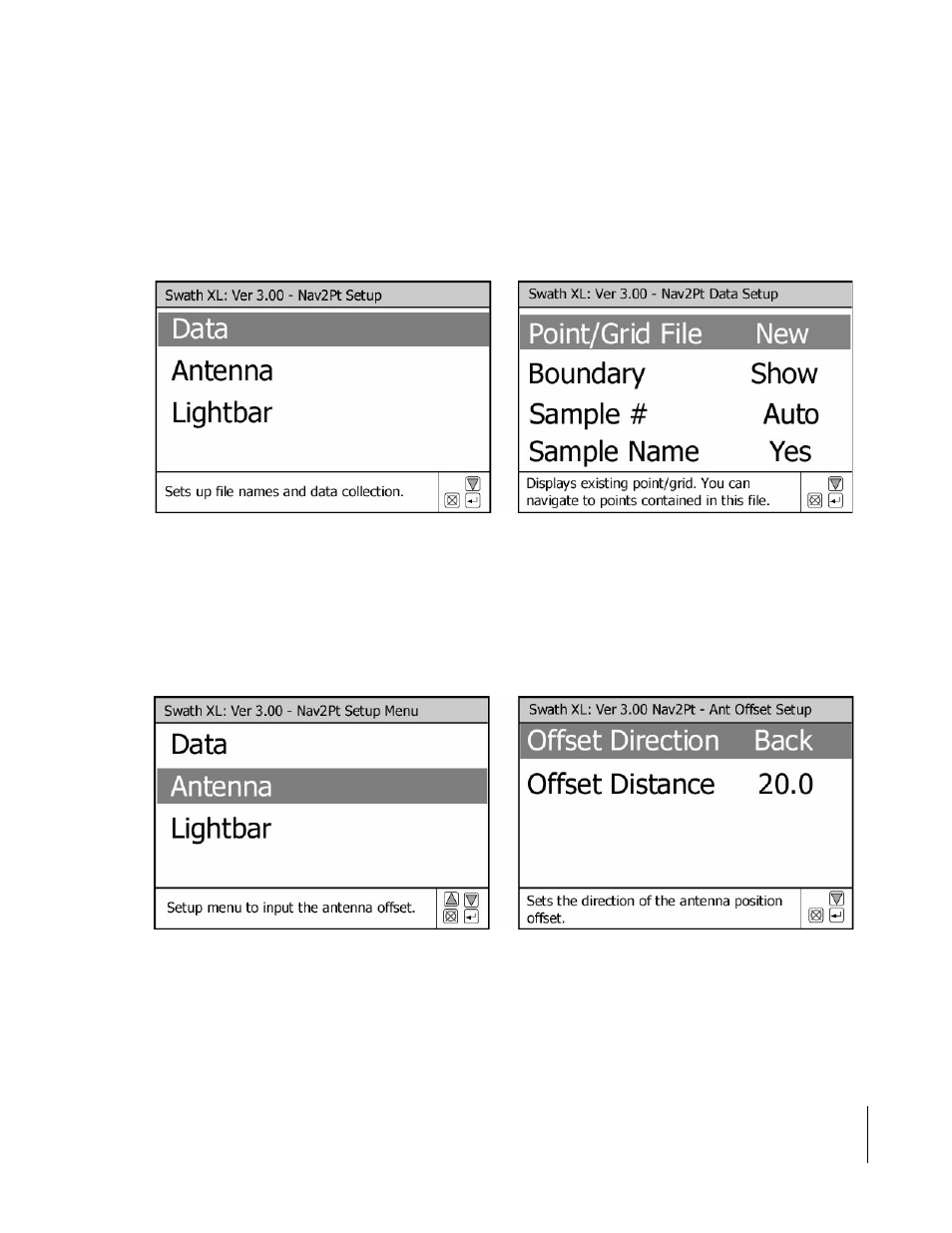

Figure 4-30: Data Setup Menu Page
Figure 4-31: Antenna Offset Menu Page
