Chapter 3 - Real-Time Guidance 3-64
Mapping Points and Hazards
Swath XL
Software Version 3.00
Marking a Named Point
The map object Named Point allows you to mark a named point at the vehicle location. A Named Point is the same as
the Point object except that the name of the point is entered when starting guidance. When Swath XL is setup to map
a Named Point, a point button is added to the view page button bar, see Figure 3-87. To map a Named Point drive to
the location of the object or feature you want to map. This location should coincide with the location of your GPS
antenna. Next, highlight the Point button in the button bar using the keys and press . Notice that when you
highlight the Point button, the name of the point appears in the information box at the bottom of the view page.

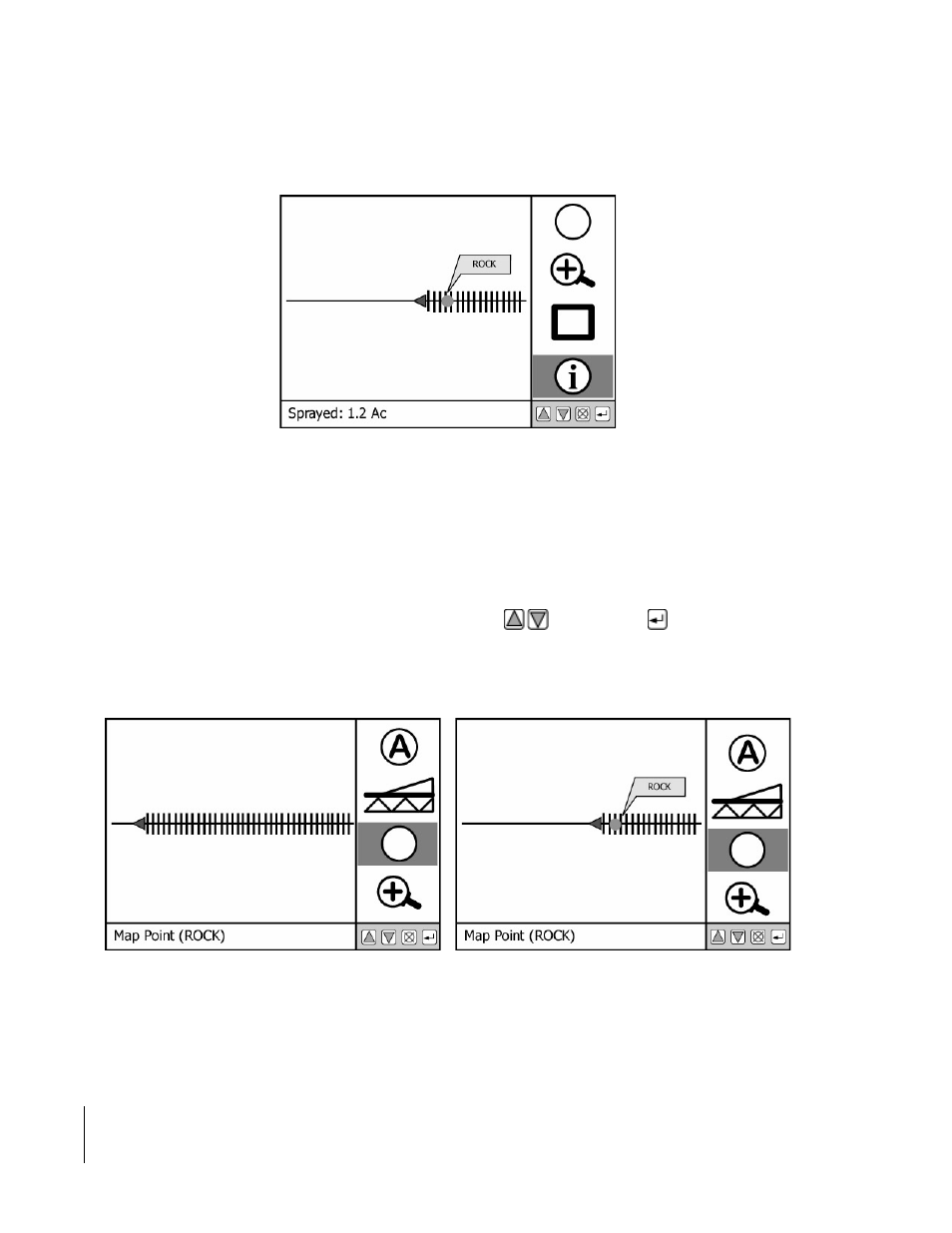

Figure 3-86: Marked Point in the View Page
Figure 3-87: Mapping a Named Point
