Chapter 2 - Software Overview 2-2
Swath XL Software Overview
Swath XL
Software Version 3.00
Swath XL Software Overview
The Swath XL software suite is made up of a Main Launcher and two software applications (programs), Guidance
and Nav2Pt. Each application can be broken down into two main components, Setup and Real-Time Mapping. Each
of these components is described in more detail in following chapters. Figure 2-10 shows a flow diagram of the
Swath XL software suite. All menus and menu items can be accessed and changed using the six keys located on the
Smartpad. For more description on how to use these six keys see “Operating Swath XL Software” on page 2-3.
The first time you run the Swath XL software you may need to set a few system settings such as Date and Time Zone,
Units, Smartpad settings, and possibly Language, to configure the Swath XL software suite the way you prefer it. See
“First Time Setup Process” on page 2-6 for more detail on setting up Swath XL for the first time.
Swath XL Main Launcher
Once the unit has powered up, a Swath XL splash screen briefly appears, displaying the version number of the soft-
ware you have installed on the Smartpad. The Main Launcher menu page follows the splash screen, Figure 2-1. The
Main Launcher is where you can pick an application to run, either Guidance or Nav2Pt. System Settings and Tools
are also located in the Main Launcher page. The Tools component of the Main Launcher contains several diagnostic
tools that may help trouble-shoot problems with your GPS receiver and lightbar, see “Swath XL Tools” on page 2-23
for more details. For more information on the Main Launcher see “Swath XL Main Launcher” on page 2-7.

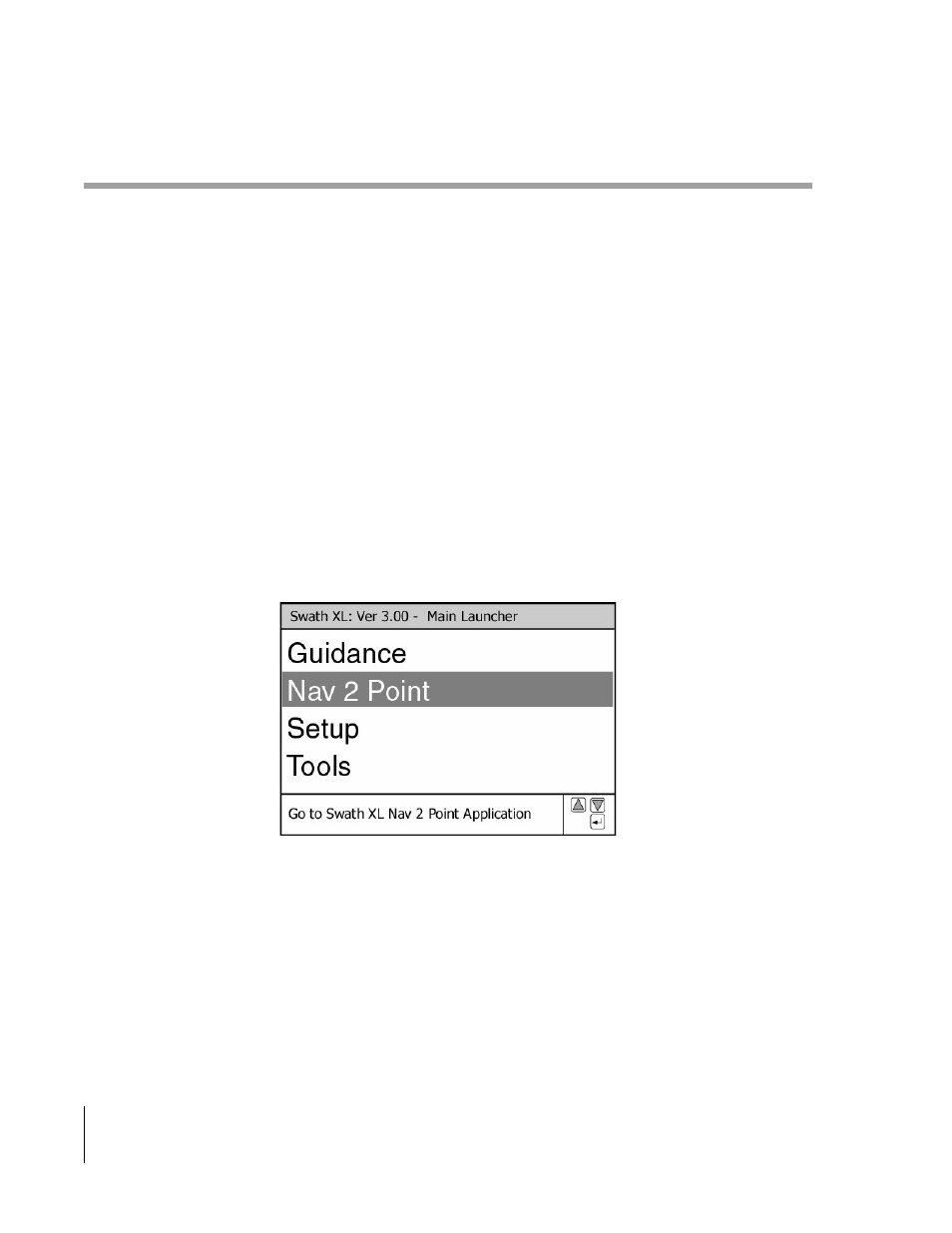

Figure 2-1: The Swath XL Main Launcher Page
