Swath XL
Software Version 3.00
3-3 Chapter 3 - Real-Time Guidance
Guidance Setup
Guidance Setup
Guidance setup allows the user to set up several parameters that pertain to guidance functionality. There are six guid-
ance related menu items: Swath Width, Look Ahead, Pattern, Direction to Swath, Distance to Swath, and Status
Detect, see Figure 3-2 and Table 3-1.
To access the Guidance menu page, highlight the Setup menu item in the Main Menu page and press . This takes
you to the Setup menu page, see Figure 3-1. Within the Setup Menu the Guidance menu item is the first item and
should be highlighted. Press to enter the Guidance menu page. Once in the Guidance menu page, you can change
any of the Guidance menu items by highlighting the desired menu item and pressing .

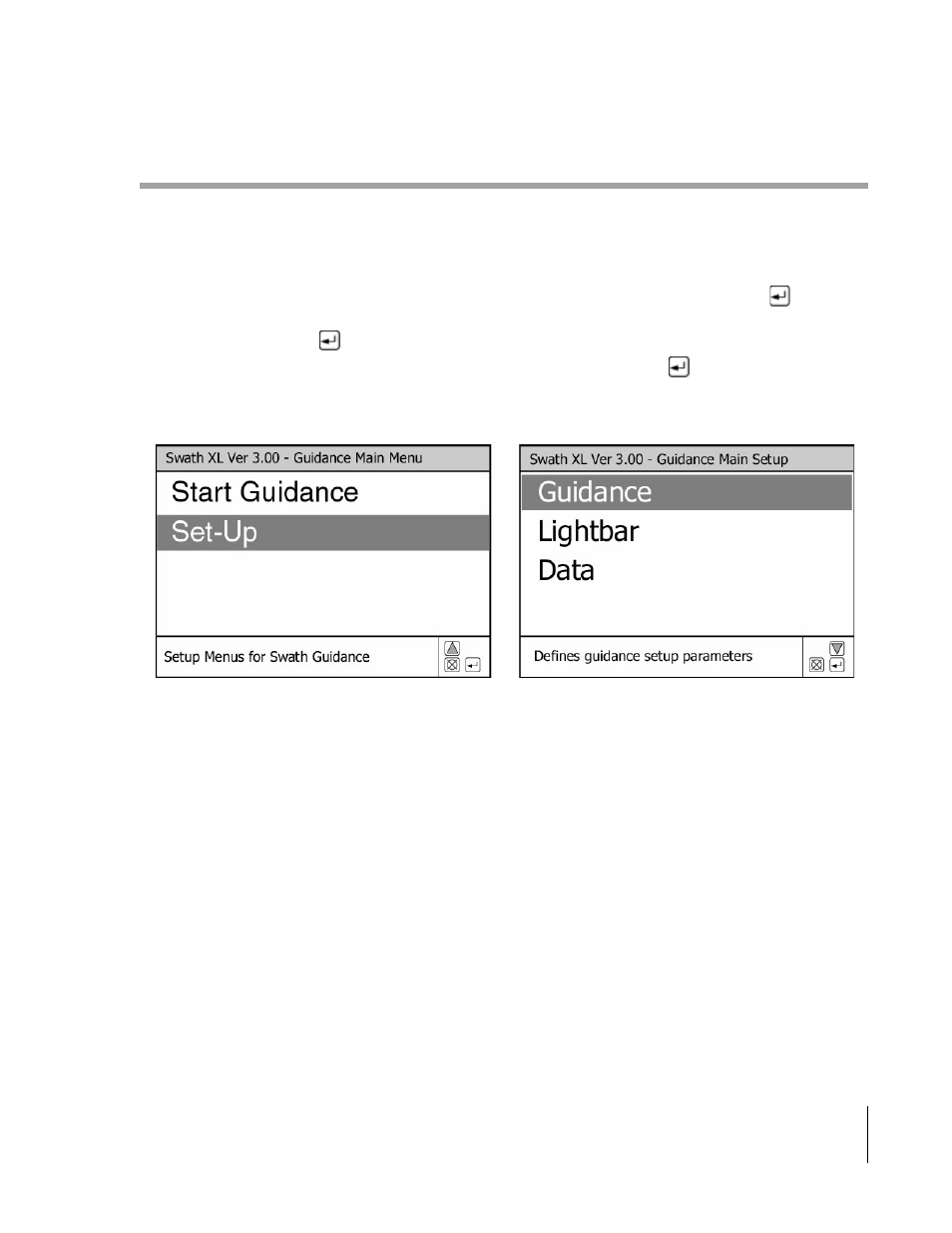

Figure 3-1: Accessing the Guidance Menu Page
