3-19 Chapter 3 - Real-Time Guidance
Lightbar Setup
Alarm
The Alarm menu configures operator warnings that can be shown on the lightbar text display when approaching pre-
mapped hazards and previously applied areas. Alarm settings are Off, Applied Area, Hazard, and All. Each feature is
described below in more detail, see Table 3-5. This menu item is used in conjunction with the Hazard Range menu
item found on page 3-21. Hazard Range is used to define how far in advance of the hazard you are notified.
To change the Alarm setting, highlight the Alarm menu item and press . The Alarm dialog box appears. Select the
desired setting using the arrow keys . Once the desired setting is selected, press to return to the Lightbar
setup menu, see Figure 3-23.
Using the Alarm Setting to Detect a Previously Applied Area
The Alarm menu item allows you to detect when the vehicle has entered a previously sprayed area. If the Alarm menu
item is set to Applied Area or All, any area you spread or spray, including headlands, is considered a previously
applied area. Once you enter a previously applied area the Red stop light on the Lightbar illuminates. If you have sta-

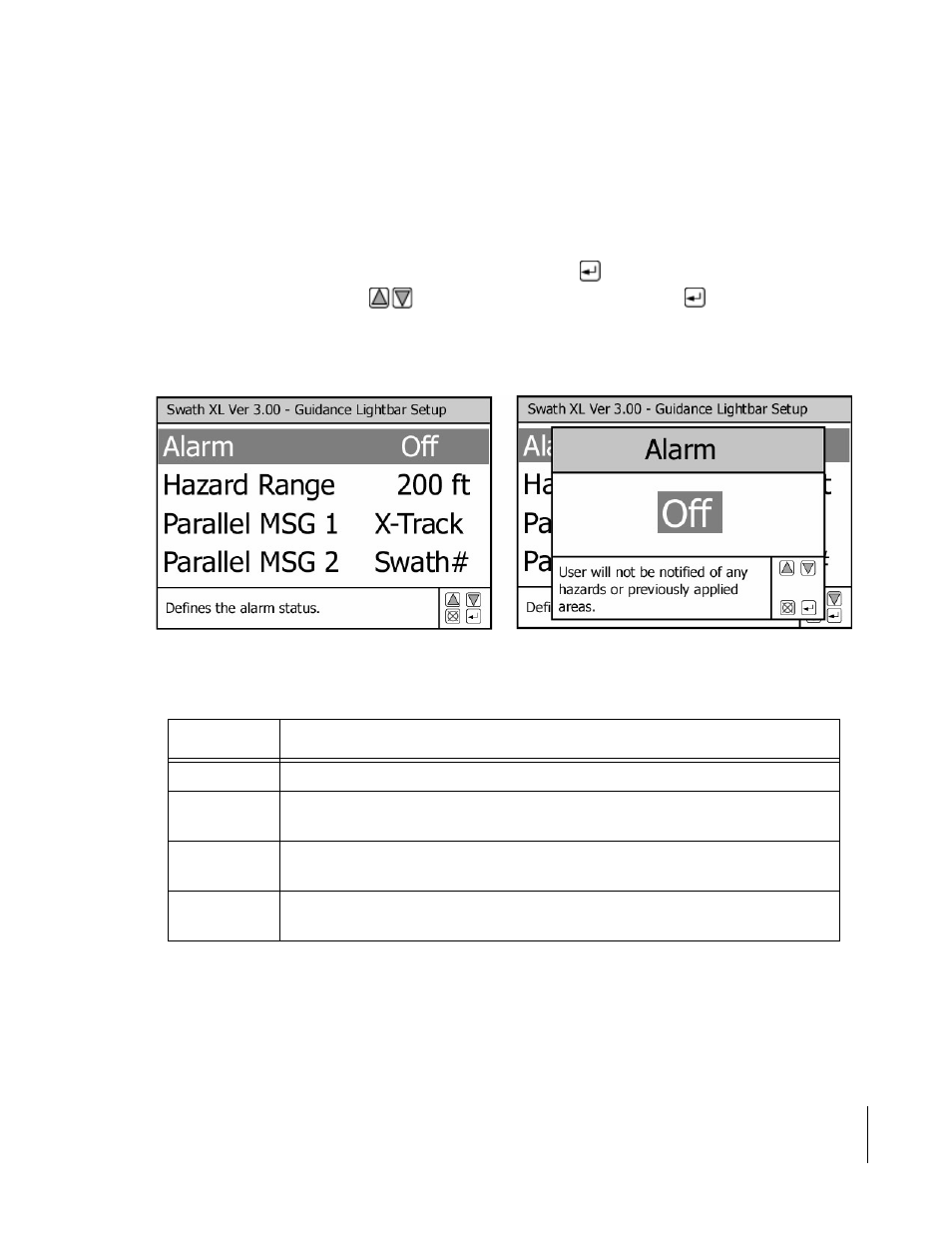

Figure 3-23: The Alarm Menu Item
Setting Description
Off User is not notified of any Hazards or previously sprayed areas.
Applied Area User is notified when entering a previously applied area, see Figure 3-24. Lightbar dis-
plays APPLIED.
Hazard User is notified when approaching an previously mapped hazard. Lightbar displays the
name of the Hazard if named, otherwise displays HAZARD. See Figure 3-25.
All User is notified when approaching hazards and when they have entered a previously
applied areas.
Table 3-5: Lightbar Alarm Options
