3-5 Chapter 3 - Real-Time Guidance
Guidance Setup
Swath Width
The guidance parameter Swath Width is the distance between guidelines. This width is typically determined by the
vehicle swath width or spread area, see Figure 3-3. Setting the swath width slightly smaller than the actual width
reduces skips. Setting the swath width slightly larger than the actual swath width reduces overlap.
To change the Swath Width value, highlight the Swath Width menu item and press . The Swath Width dialog box
appears. Enter the desired width using the arrow keys . Once the desired width is entered, press to
return to the Guidance setup menu, see Figure 3-4.

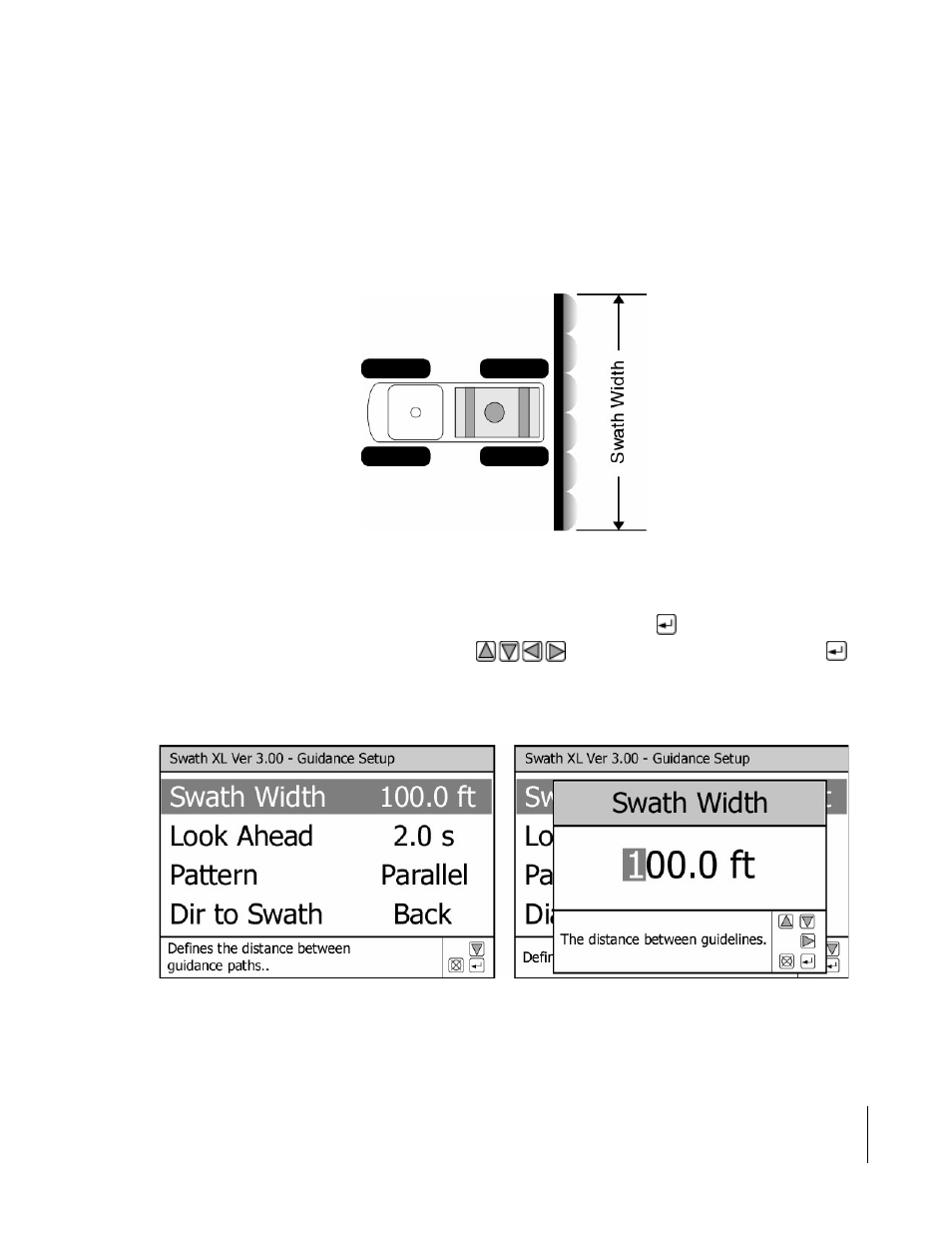

Figure 3-3: Example of Swath Width
Figure 3-4: The Swath Width Menu Item
