TeeJet Swath XL - Manual (Page 128)

Chapter 4 - Waypoint Navigation 4-8
Data Setup
Swath XL
Software Version 3.00
Boundary
This menu item allows you to indicate whether you want to create or show an existing field boundary or turn this
menu item off. If Show is selected, you must select the name of an existing field boundary from a pick list. If Create
is selected the Swath software will use the antenna offset information, described below, to trace out the field bound-
ary. All file naming occurs after you press the Start Nav 2 Point menu item.
To change the Boundary File setting: highlight the Boundary menu item and press . The Field Boundary dialog
box appears. Select the desired setting using the arrow keys . Once the desired setting is selected, press to
return to the Data setup menu, see Figure 4 -7.

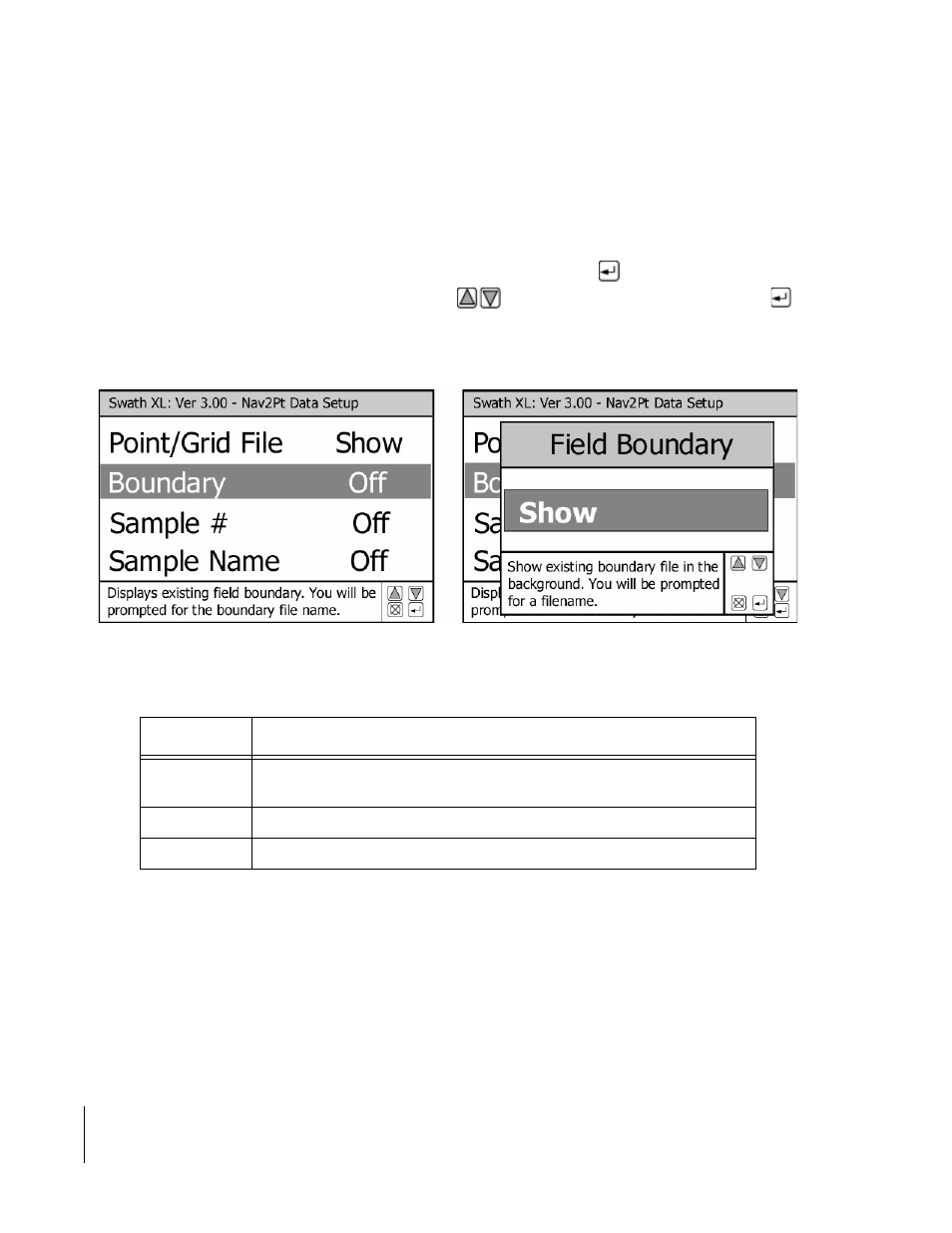

Figure 4-7: The Boundary Menu Field - Show Item Selected
Setting Description
Show Shows an existing boundary file (.BND) in the background of the real-time
map view.
New Creates a new .BND file.
Off No .BND file is used in the real-time portion of Nav 2 Point.
Table 4-3: Boundary File Settings
