Chapter 3 - Real-Time Guidance 3-22
Lightbar Setup
Swath XL
Software Version 3.00
Parallel MSG 1
The Lightbar setup menu item Parallel MSG 1 allows the user to select from a set of predetermined guidance infor-
mation messages. These messages are displayed in the lightbar text window during guidance operations. A maximum
of three messages can be displayed. During a guidance application, the lightbar cycles through these three user
defined messages. See Table 3-6 for a list of available messages.
To change the Parallel MSG 1 setting, highlight the Parallel MSG 1 menu item and press . The Parallel MSG 1
dialog box appears. Select the desired message using the arrow keys . Once the desired message is selected,
press to return to the Lightbar setup menu, see Figure 3-27.

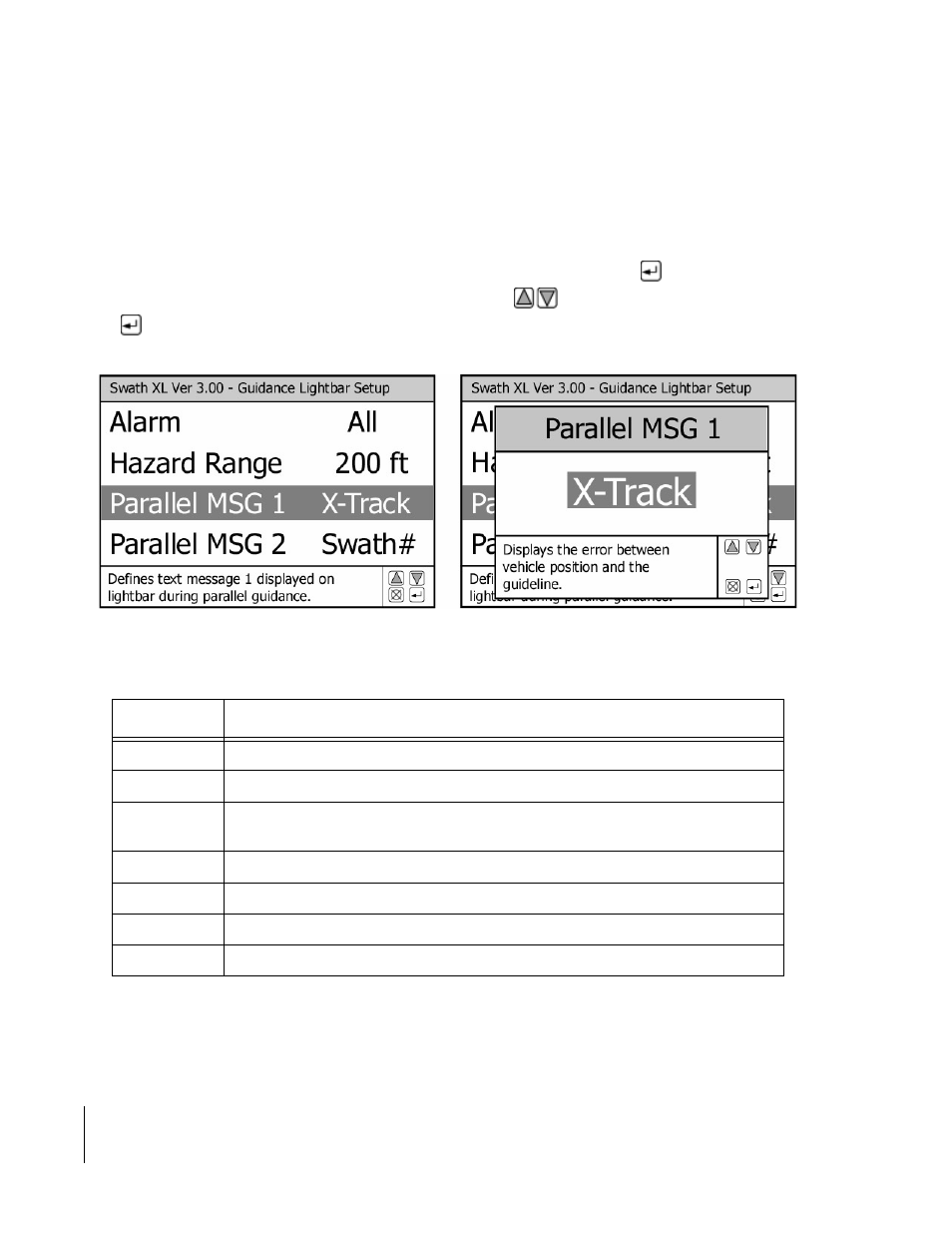

Figure 3-27: The Parallel MSG 1 Menu Item
Message Description
X-Track Displays the error (in distance) between the current guideline and the vehicle position.
Swath # Displays the current guideline number.
Heading Error Displays the difference between the heading of the guideline and the current vehicle
heading.
Ground Speed Displays the vehicles ground speed.
Area Applied Displays the amount of area covered, sprayed or spread in acres or hectares.
COG Course on Ground, displays the vehicle heading in degrees.
Off When Off is selected no message is displayed in this message slot.
Table 3-6: Lightbar Display Message Options
