TeeJet Swath XL - Manual (Page 117)

Swath XL
Software Version 3.00
3-69 Chapter 3 - Real-Time Guidance
Lightbar Index
Lightbar Index
The Swath XL Lightbar is capable of displaying a considerable amount of information to the user. This information
can be represented as text in the display window, illuminated lights on the stop light, cross track LEDs or a combina-
tion of text and lights. Information displayed on the lightbar depends on both user defined settings and system warn-
ings not controlled by the user. Table 3-15, “Swath XL Lightbar Index,” on page 3-69 describes each possible lightbar
state and possible information that could be displayed.

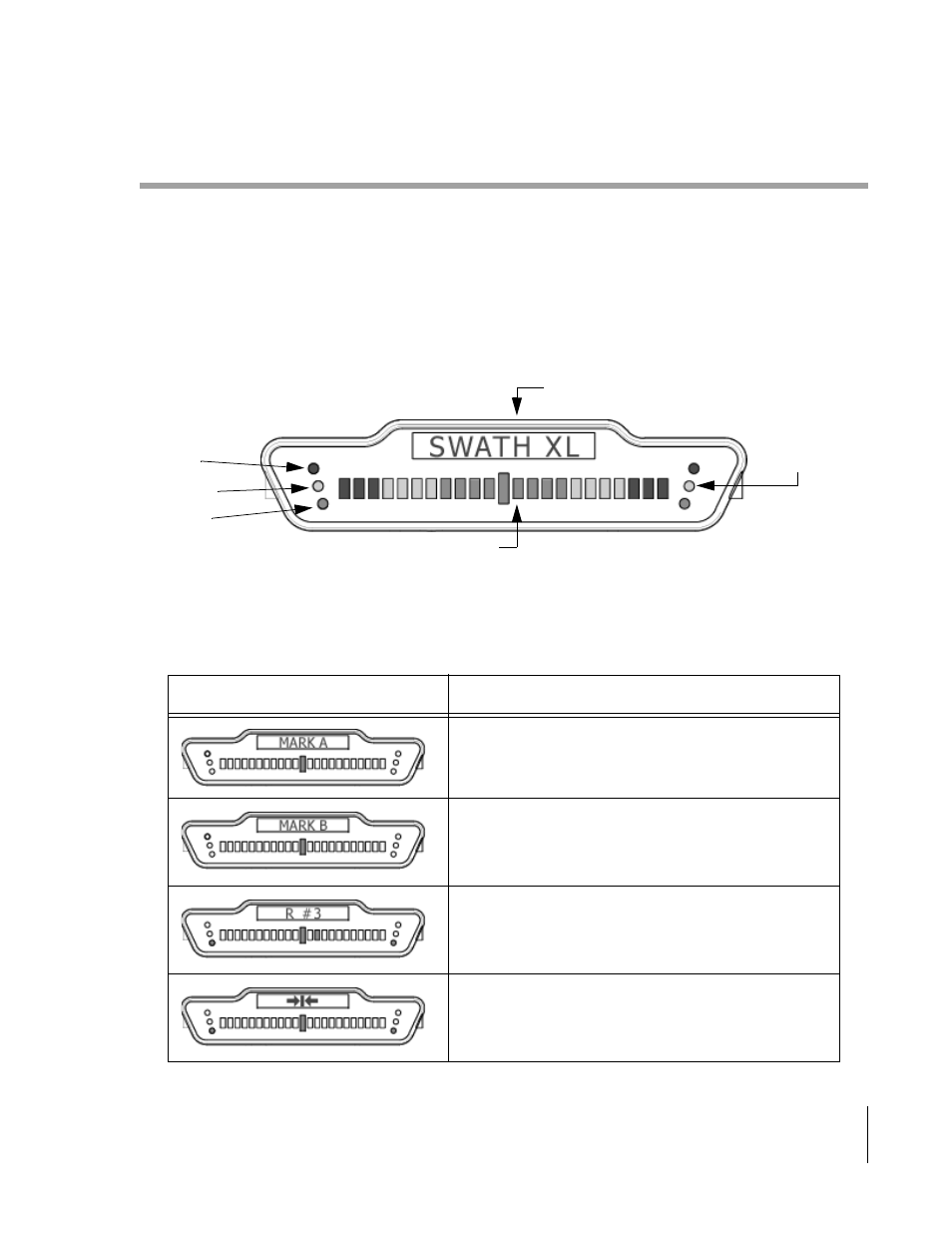

Figure 3-94: The Swath XL Lightbar
Lightbar State Description
Mark A: Displayed when establishing the guidance point A
of the initial guideline.
Mark B: Displayed when establishing the guidance point B
of the initial guideline.
Swath #: A user selected lightbar message. When not on the
initial guideline the first character is either L or R for Left or
Right of the initial guideline. The number identifies how
many lines left or right of the initial guideline.
X-Track Error: A user defined lightbar message. This cross
track error message is displayed when the vehicle is on the
guideline and there is no error.
Table 3-15: Swath XL Lightbar Index
Eight Character Text Display Window
Cross Track Error LEDs
Warning Stop
Lights
Red
Yellow
Green
