About the Real-Time Guidance Process
Swath XL
Software Version 3.00
on the Smartpad. To select or activate a highlighted button in the button bar press the key on the Smartpad.
The bottom of the view page contains the information window. Various information about the current real-time pro-
cess is displayed in this window. There is a specific Information button located in the button bar. When this button is
either highlighted or pressed, information such as total area applied is displayed. If you have a field boundary dis-
played in the map window, the area of the field boundary, in acres or hectares, is also displayed in the information
window.
Located at the bottom right corner of the view page is the key code box. This box displays which Smartpad keys are
active based on the current view page and button bar state.

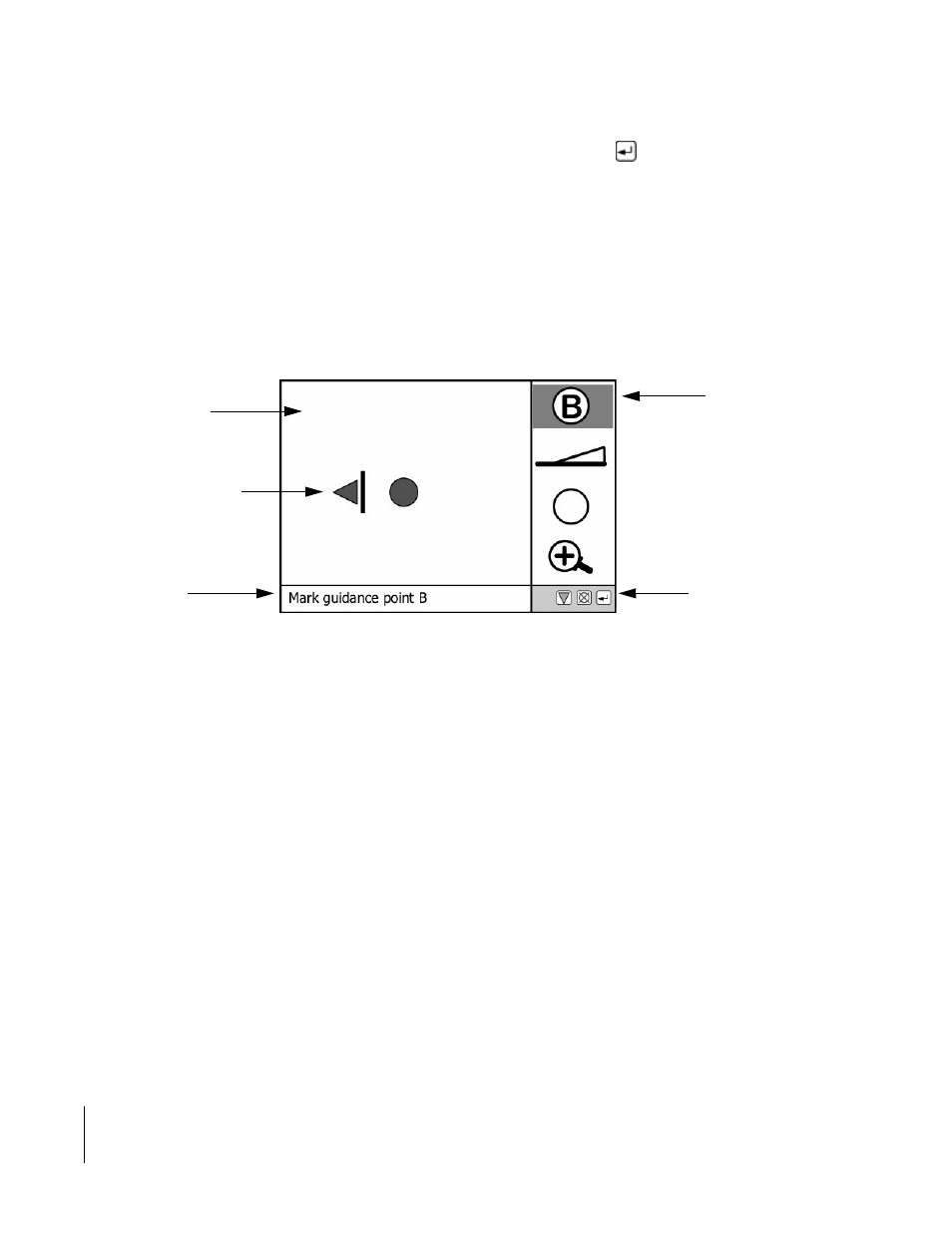

Figure 3-50: The Swath XL View Page
Map Window
Button Bar
Info Window Key Code Box
Vehicle with Point A
marked
