Chapter 4 - Waypoint Navigation

Nav 2 Point Real-Time Scenarios

Figure 4 -44 shows the buttons that would be used in the button bar for the example described in this example. The
map boundary buttons could also be used in this example if the operator had elected to map a boundary as well.

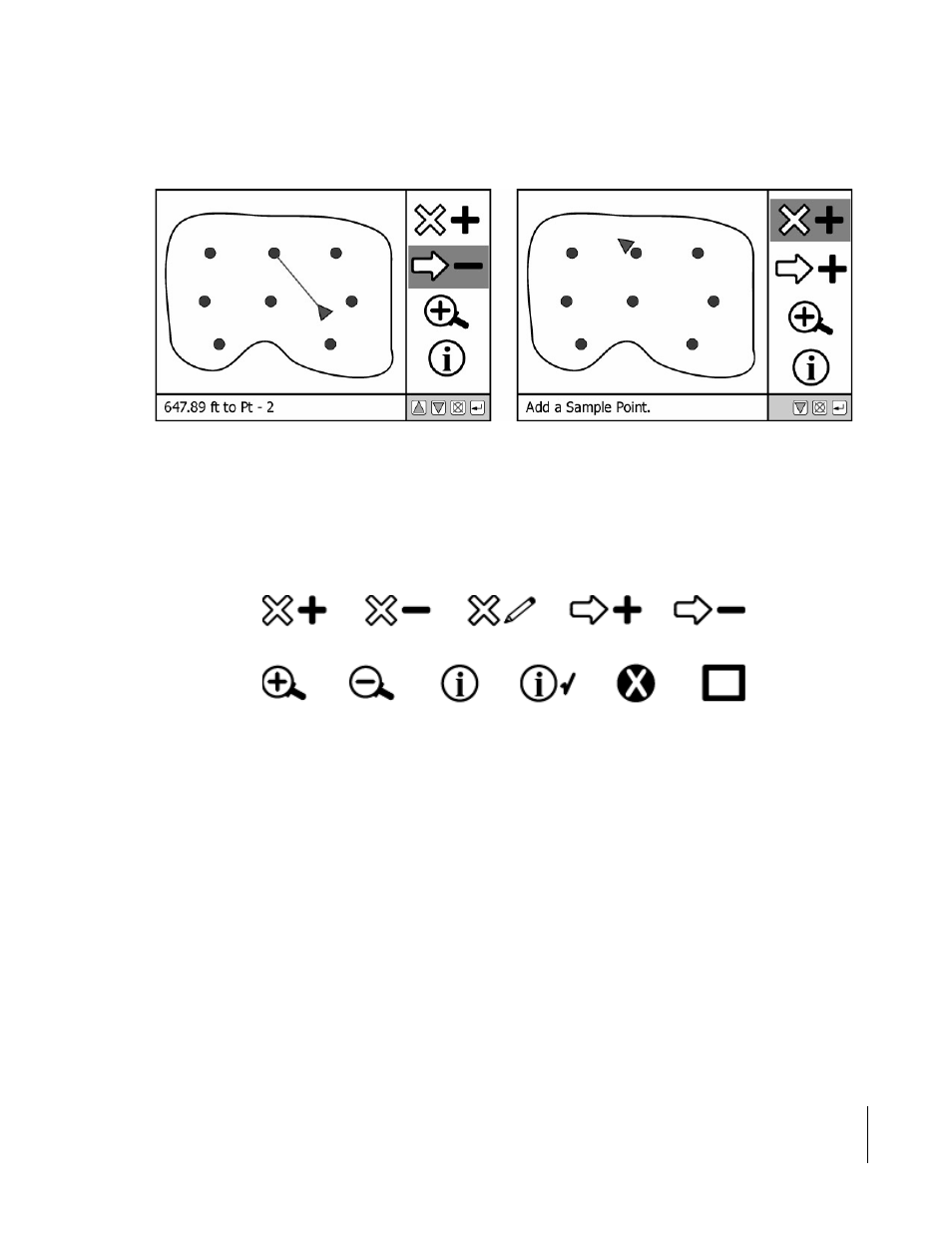

Figure 4-43: Navigating to a Point

Figure 4-44: Buttons Used in Navigating to Points Example
