Guidance Setup
Distance to Swath
The guidance parameters, Distance to Swath and Direction to Swath, are used to define the spatial relationship
between the GPS antenna and the product delivery location. Examples of a product delivery location would be the
boom on a sprayer or the spinner box on a fertilizer spreader. The position of the swath with respect to the GPS
antenna is used to accurately create an As Applied map. The Distance to Swath parameter defines the distance from
the GPS antenna to the delivery location. The GPS antenna should always be mounted on the center-line of the vehi-
cle.
To change the Distance to Swath value, highlight the Distance to Swath menu item and press . The Distance to
Swath dialog box appears. Enter the desired distance value using the arrow keys . Once the desired
value is entered, press to return to the Guidance setup menu, see Figure 3-13.

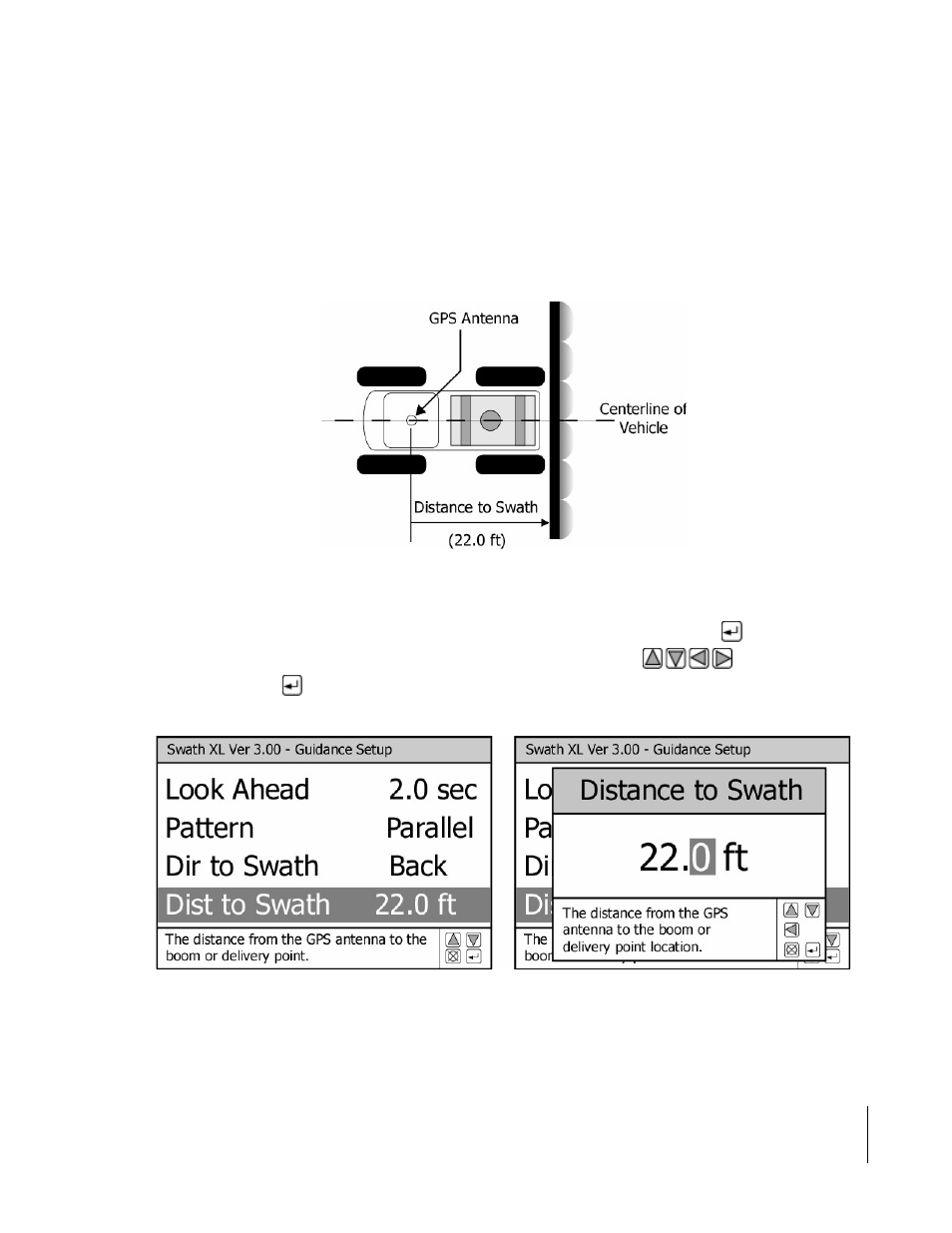

Figure 3-12: Example of Distance to Swath
Figure 3-13: The Distance to Swath Menu Item
