TeeJet Swath XL - Manual (Page 103)

Swath XL
Software Version 3.00
3-55 Chapter 3 - Real-Time Guidance
The Circle Pivot Pattern Option
Figure 3-72 shows the Swath XL real-time view page and lightbar. When applying in Circle Pivot mode, the lightbar
displays the curved vehicle path in the text display (top section of lightbar) and cross track error information is con-
veyed via the cross track LEDs. For more information on the curved vehicle path see section “Lightbar Curved Guid-
ance Graphics” on page 3-58.
Figure 3-73 shows product application in progress and Figure 3-74 shows the completed portion of the center pivot.

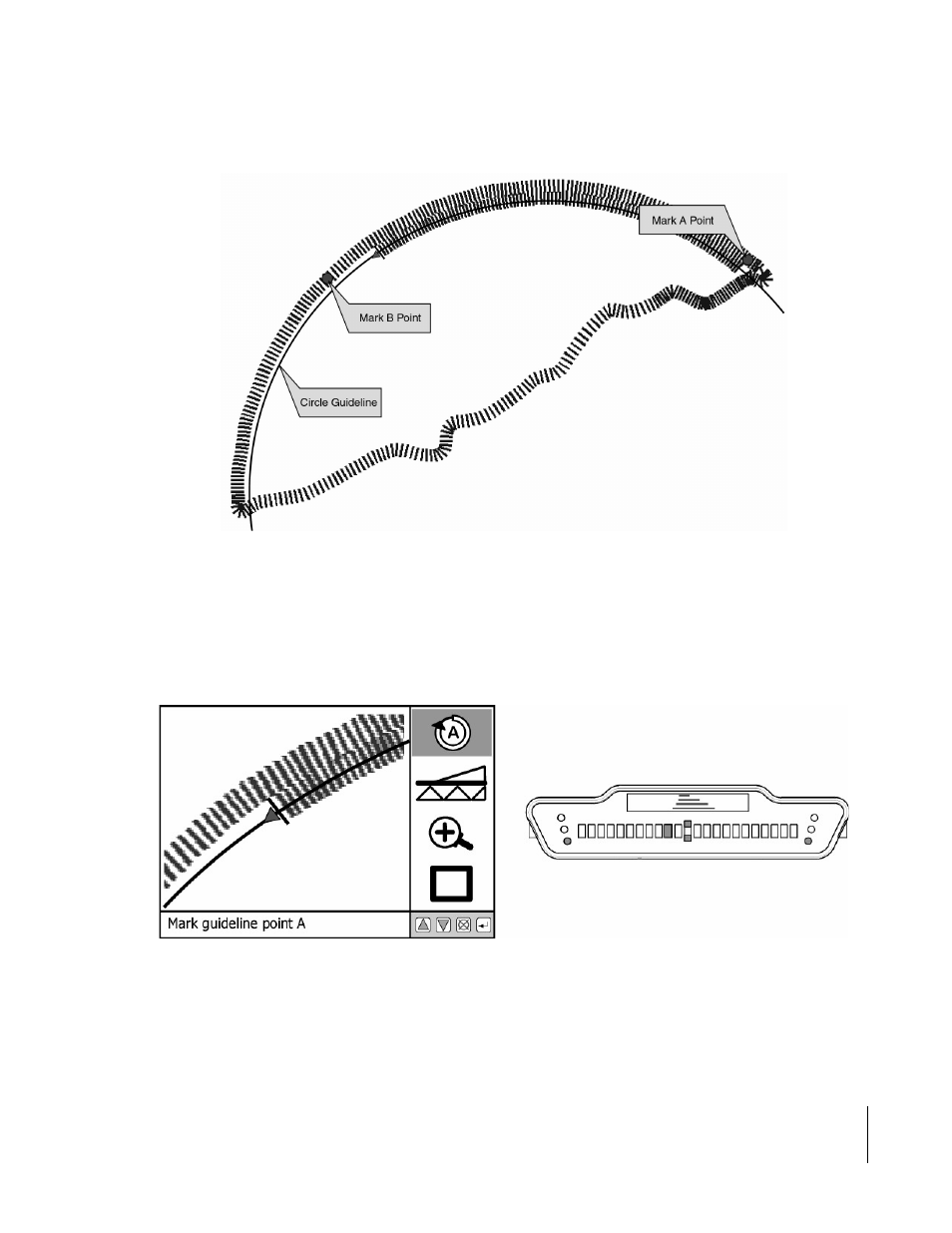

Figure 3-71: Applying Along the First Interior Swath.
Figure 3-72: Swath XL View Page and Lightbar
