Swath XL

Software Version 3.00

3-59

Chapter 3 - Real-Time Guidance

Applied Area Detection

Applied Area Detection

Swath XL software allows you to detect when the vehicle enters a previously applied area. You can also setup Swath
XL to notify you when you are approaching a previously marked hazard, see “Hazard Detection” on page 3-67. To
use applied area detection the Lightbar Setup - Alarm menu field must be setup prior to starting guidance. See Chap-
ter 2 - Lightbar Setup section of this User Guide for more details on how to set up this menu field.

Detecting A Previously Applied Area

Figure 3-78 and Figure 3-79 show how previously applied area detection works. As the vehicle enters a previously
applied area, the lightbar displays the message APPLIED and the Red stop lights illuminate. If the vehicle continues
to apply product while driving in a previously applied area the SmartPad alarm sounds. If product application is
turned off while in a previously applied area the alarm will not sound. Once the vehicle exits the previously applied
area the Red stop light turns off or changes to Green if product application is turned on. The Green illuminated light
indicates that the vehicle is completely outside of a previously applied area and product application should be turned
on.

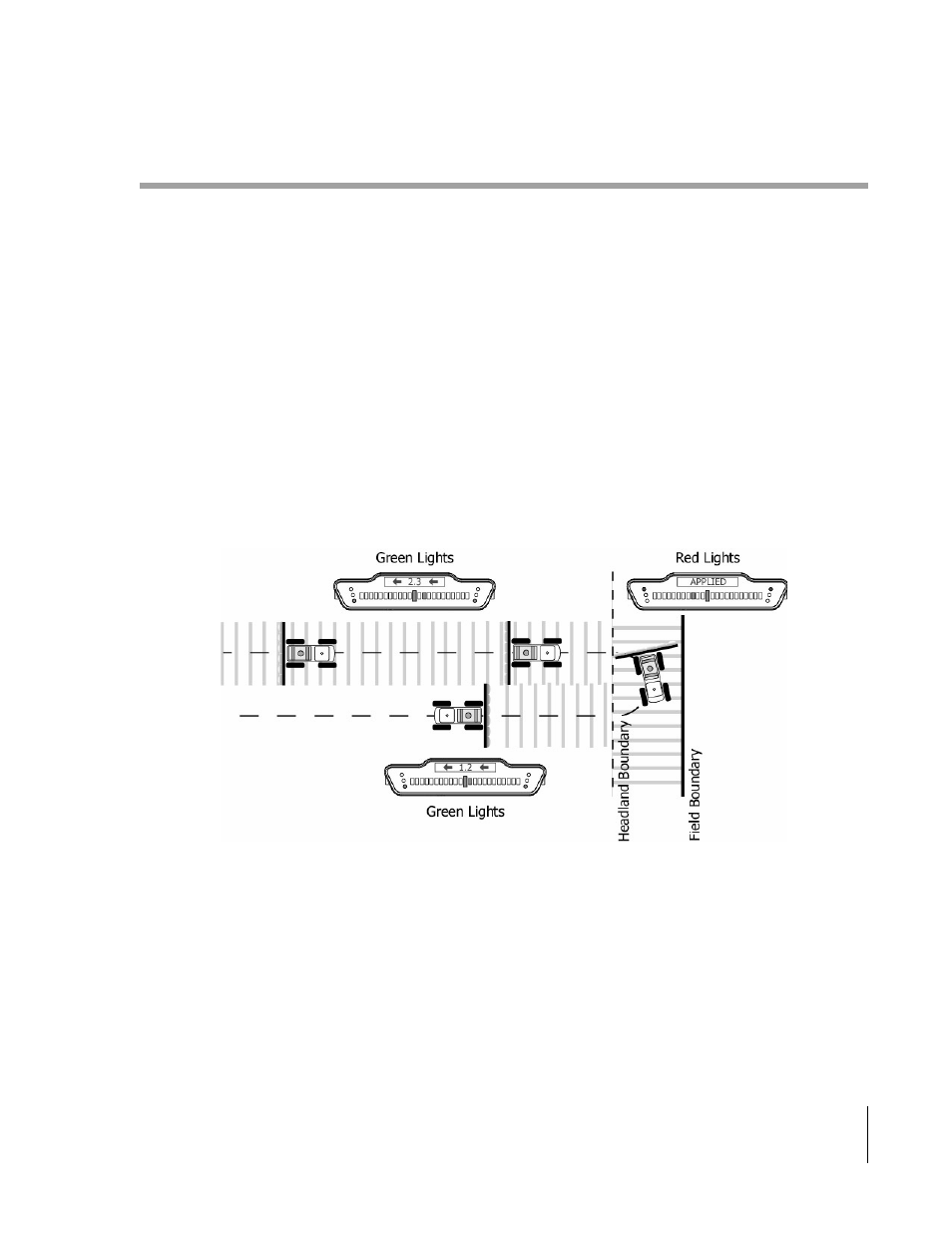

Figure 3-78: Applied Area Detection in Headlands
