3-33 Chapter 3 - Real-Time Guidance
Data Setup
Example 2: Store As Applied Data Only

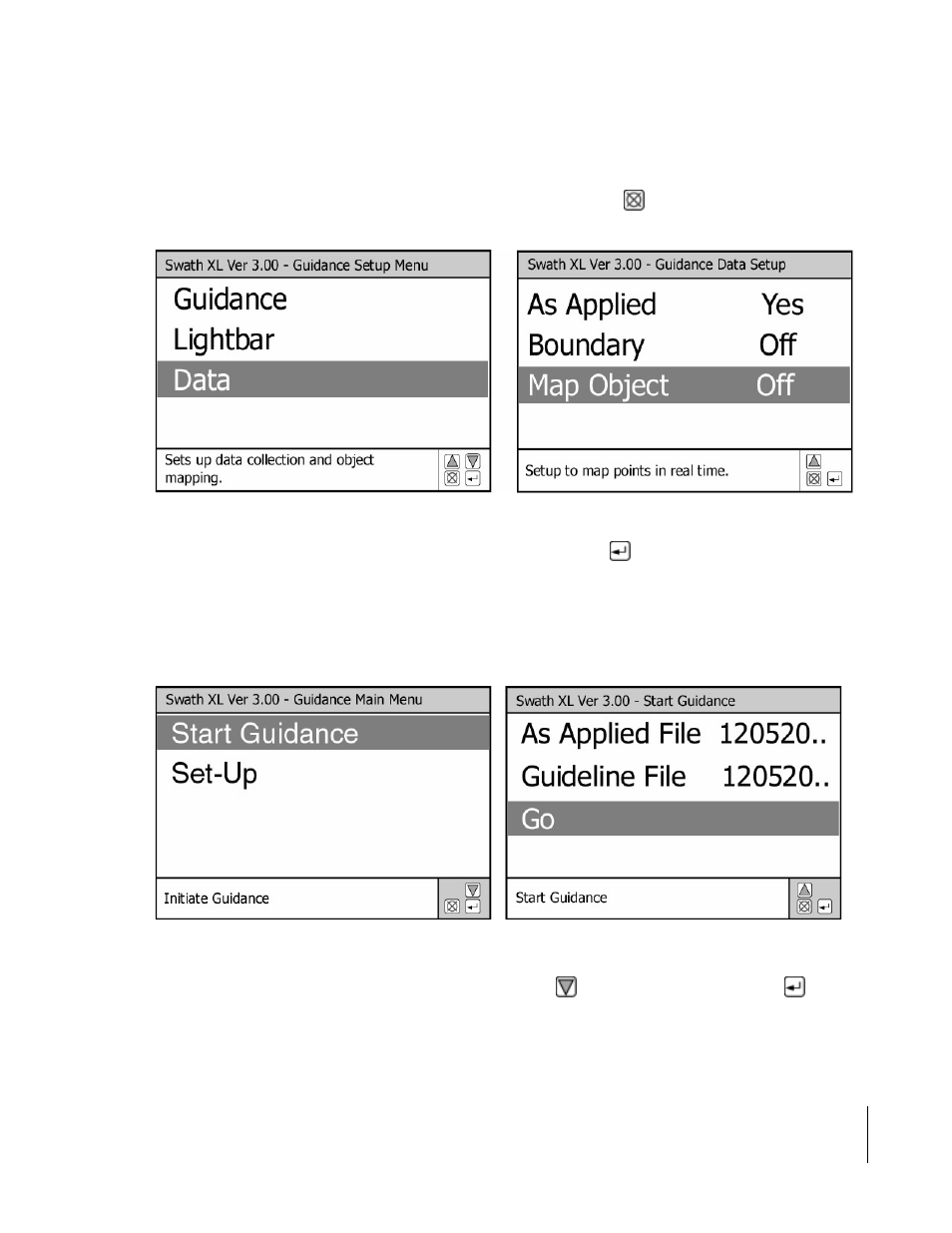

This example describes how to store As Applied data. There is no boundary mapping or object mapping. Figure 3-39
shows how the Data menu is setup for Example 2. From the Data menu press to return to the Main Menu.
Once in the Main menu and the Start Guidance menu item is pressed using , the Swath XL software does not go
directly to the real time page. First you are presented with an additional menu page containing a single menu item, As
Applied. This is the file name that the As Applied data is stored in. Figure 3-40 (right side) shows the As Applied
menu item.
To name an As Applied, highlight the As Applied menu item using , Figure 3-41 (left side). Pressing brings up
the As Applied dialog box, Figure 3-41 (right side). There are three options once in the As Applied File dialog box:
Auto Name, New File, or selecting an existing file.
The Auto Name option automatically names the As Applied file using the current date using the format mmddyyyy-
#. For example the first file saved on December 5th, 2000 is named 12052000-1.rcd. Using this naming method
Figure 3-39: Store As Applied Data Only
Figure 3-40: Starting Guidance and Storing As Applied Data
