Swath XL
Software Version 3.00
3-45 Chapter 3 - Real-Time Guidance
The Parallel Pattern Option
to the guideline point B button and the lightbar displays the MARK B message.
Mark Point B
The next step is to establish guideline point B. To establish guideline point B highlight the B button in the button bar
and press . The B point is displayed in the view page. This establishes the initial swath baseline. Figure 3-55
shows the initial baseline with the A and B points. Once the baseline is established the lightbar begins displaying the
user defined messages selected in the setup process. In Figure 3-55, the top lightbar displays the Swath message
“MARK B” and the lower lightbar displays the X-Track message.
Turning On Applied Swath
The area covered by the vehicle during product application can be displayed at any time. To view the applied swath in
the view page, highlight the Applied Swath On/Off button and press . Typically the Applied Swath is turned on
when the vehicle is applying product. The initial guideline does not have to be established prior to turning on the
Applied Swath.

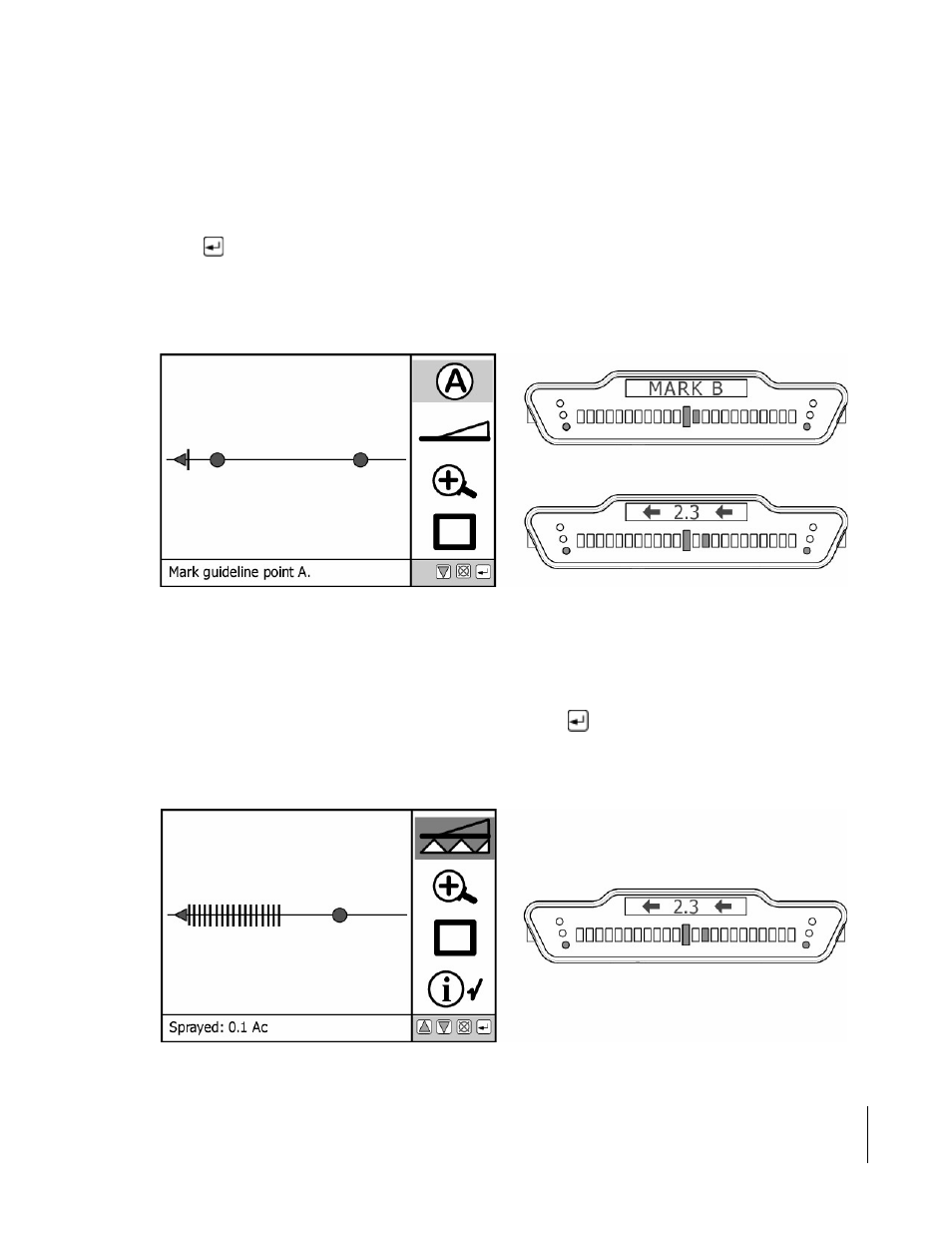

Figure 3-55: Initial Guideline Established
Figure 3-56: Turning Applied Swath On
