Swath XL

Software Version 3.00

2-7

Chapter 2 - Software Overview

Swath XL Main Launcher

Swath XL Main Launcher

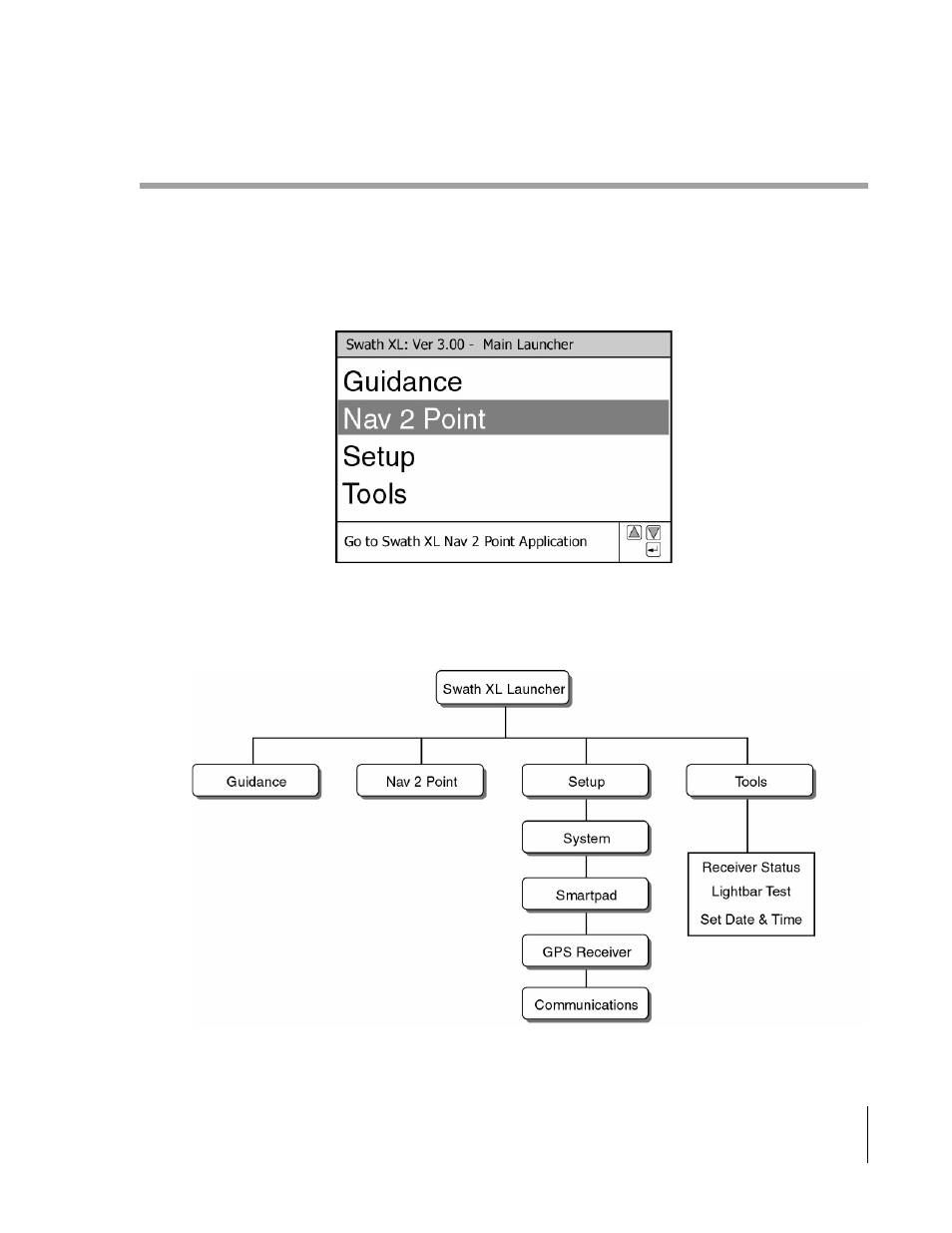

The Main Launcher is the first menu page you see after powering up the Smartpad, Figure 2-6. This is the top menu
page and from here you can launch an application (Guidance or Nav2Pt), access system level setup parameters, and
run diagnostic tools and utilities. See Figure 2-7 for an overview of the entire Swath XL software suite. Each sub-
menu is discussed in greater detail below.

Figure 2-6: The Main Launcher Menu Page

Figure 2-7: Swath XL Software Suite Flow Diagram
