Operating Instructions – MOVIMOT® MM03C - MM3XC
87
7
Startup with external AS-i binary slave MLK11A
Startup of Standard Design
Assigning slave
address via hand-
held program-
ming device An AS-i hand-held programming device can be used to assign the slave address. This
allows simple and network-independent addressing.
The AS-i hand-held programming devices offer the following functions:
• Reading and changing an AS-i slave address
• Reading the AS-i profile
• Reading and changing the data bits
• Functional test and test operation (the functional test and test operation require an
external voltage supply since hand-held programming devices do not supply suffi-
cient current for operation).

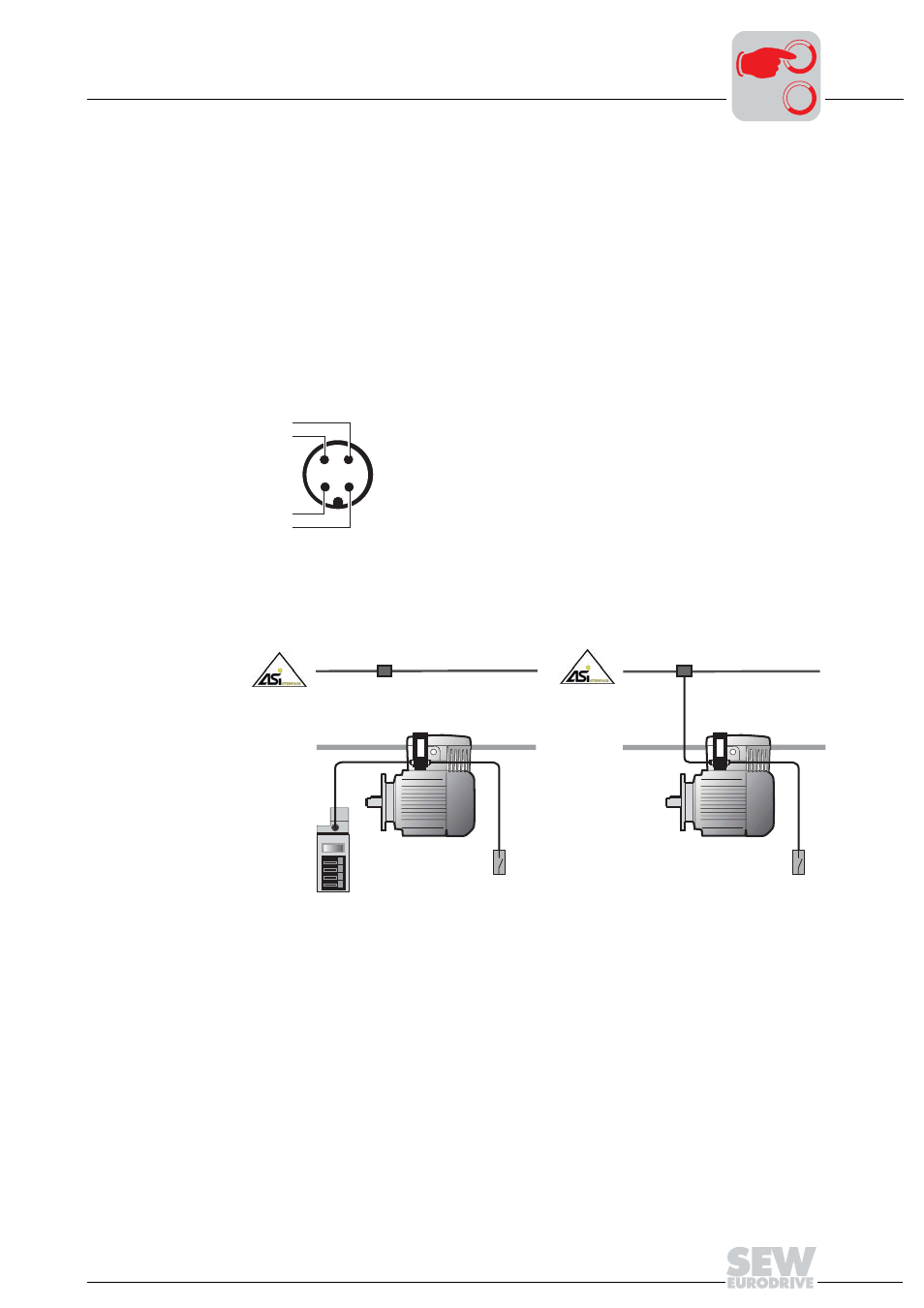

The use of a hand-held programming device requires a connecting cable that fits onto
the M12 plug connector of the MLK11A (see the following figure).
Example: Every AS-i station is individually addressed (A) and then reintegrated in the
AS-i network (B).
05135AXX
52308AXX
[1] AS-i hand-held programming
device
4
2 1
3
AS-i +
AS-i -
N.C.
N.C.
[1]
A B
0 0
I
