Diagnostics of MOVIMOT® with integrated AS-Interface
Diagnostics

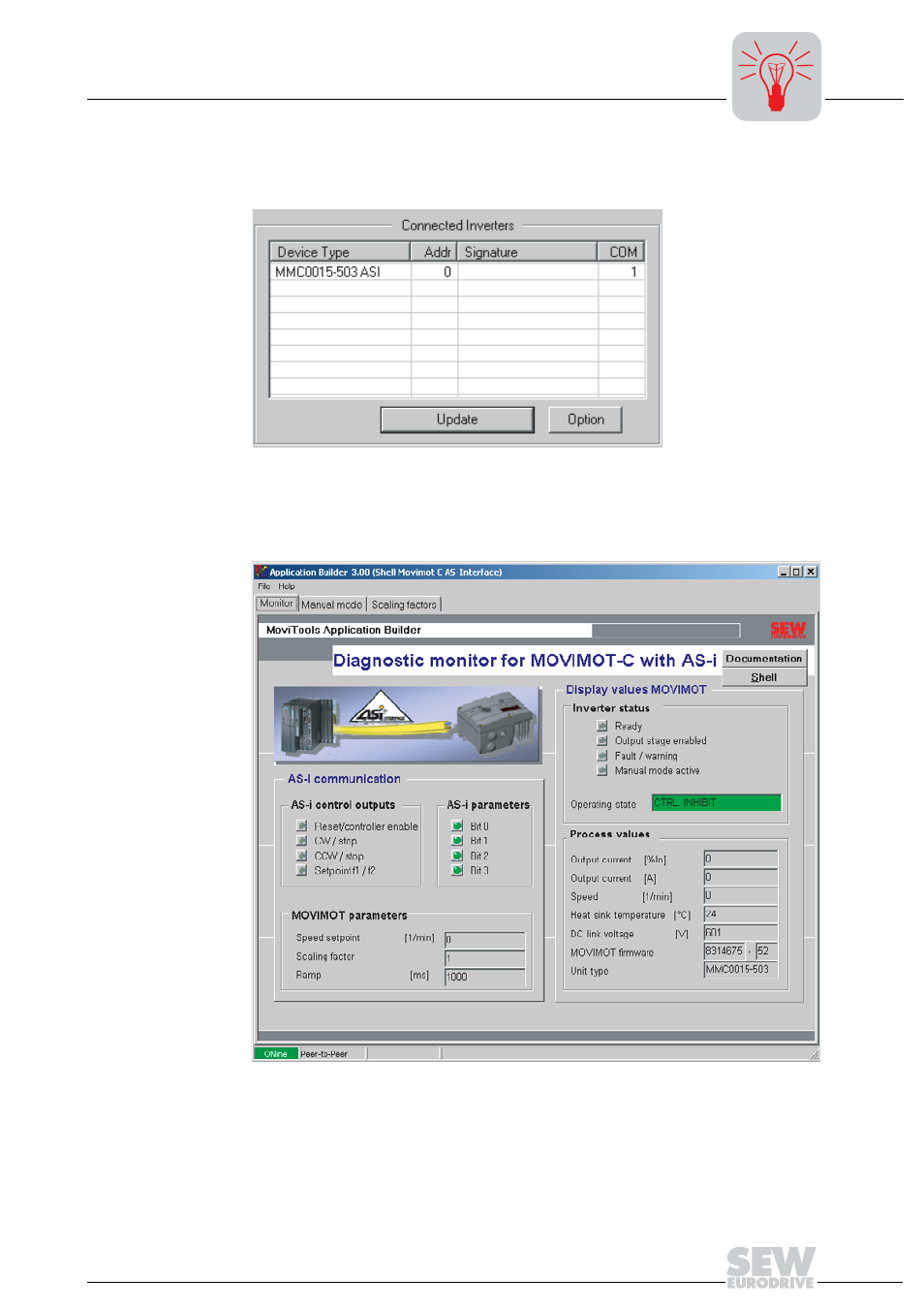

10.After clicking the "Update" button, the "Connected Inverters" window shows the
MOVIMOT
®
in use. If no inverter is shown, check the communications connection.
11.Activate the "MOVIMOT ASI" button in the "Device type" window area.
12.Clicking the "Shell" button opens the user interface for diagnostics, manual operation
and parameter setting of scaling factors (Shell) as well as a status window.
13.The buttons "Monitor", "Manual mode" and "Scaling factors" in the top left window
area can be used to select the windows of the program. Additional information about
the windows "Manual mode" and "Scaling factors" can be found in the section "Star-
tup."
06459AEN
06460AEN
