46
Operating Instructions – MOVIMOT® MM03C - MM3XC
6
Connection between MOVIMOT® and motor mounting close to the motor
Electrical Installation with Integrated AS-Interface
6.7 Connection between MOVIMOT
®
and motor mounting close to the motor
If the MOVIMOT
®
inverter with option P2.A is mounted close to the motor (only in con-
junction with modular terminal box), the connection to the motor uses a pre-fabricated
cable. The following designs are possible on the MOVIMOT
®
side:
• A: MM../P2.A/RO.A/APG4
• B: MM../P2.A/RE.A/ALA4

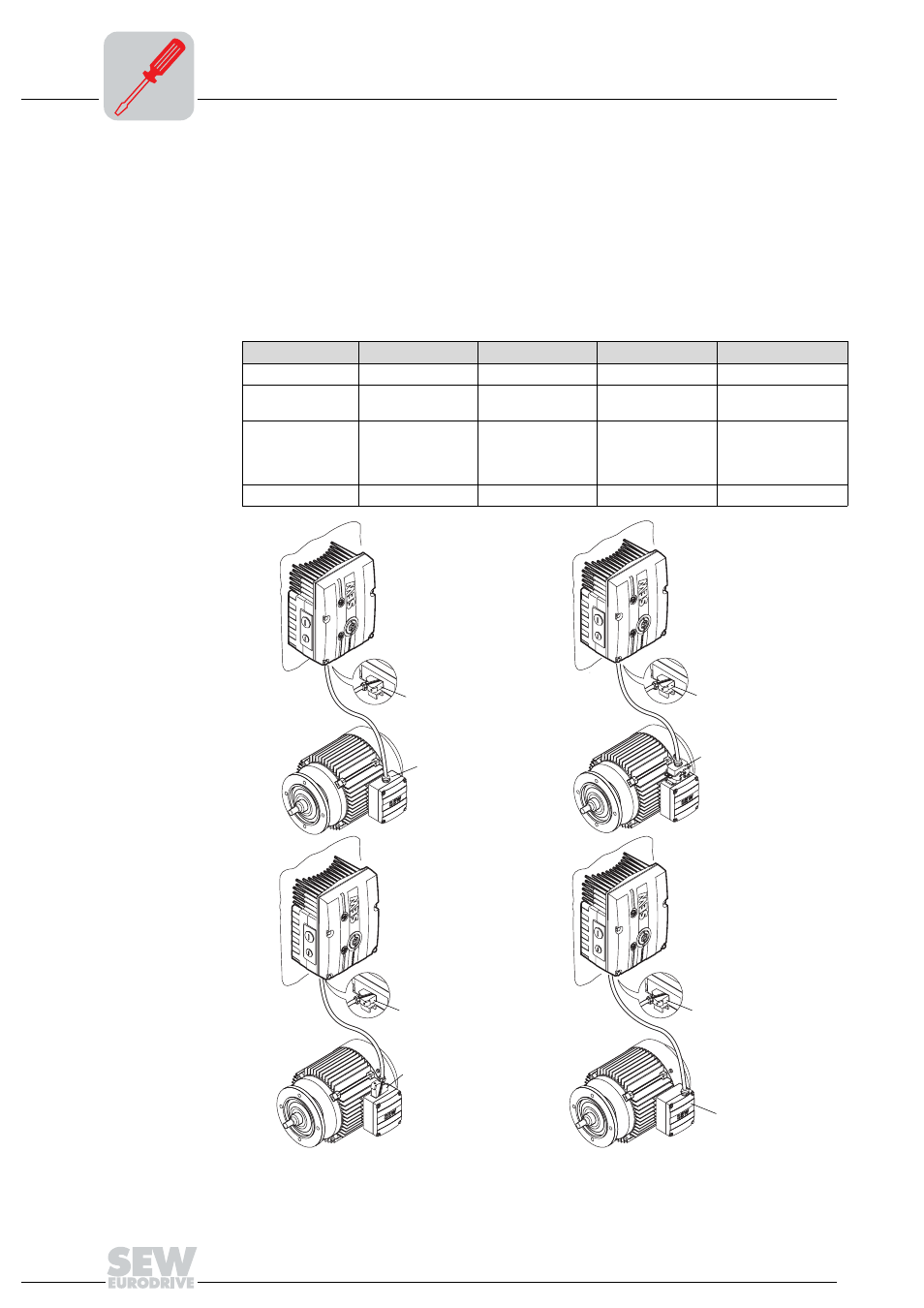

The APG4 design results in the following connection options to the motor, dependent
upon the hybrid cable used:
Design A1 A2 A3 A4
MOVIMOT ® APG4 APG4 APG4 APG4
Motor Cable gland/termi-
nals ASB4 APG4 IS
Hybrid cables 0 593 231 9 0 593 076 6 0 186 741 5 0816 325 1
Ħ
0816 326 X
Ħ
0593 278 5
ᛴ
0593 755 8
ᛴ
See also... page 48 page 48 page 49 page 49
51771AXX
[1] Connection via terminals
A2
A3
ASB4
APG4
APG4
APG4
APG4
IS
A4
A1
[1]
APG4
