Operating Instructions – MOVIMOT® MM03C - MM3XC
4
Modular terminal box
Mechanical Installation

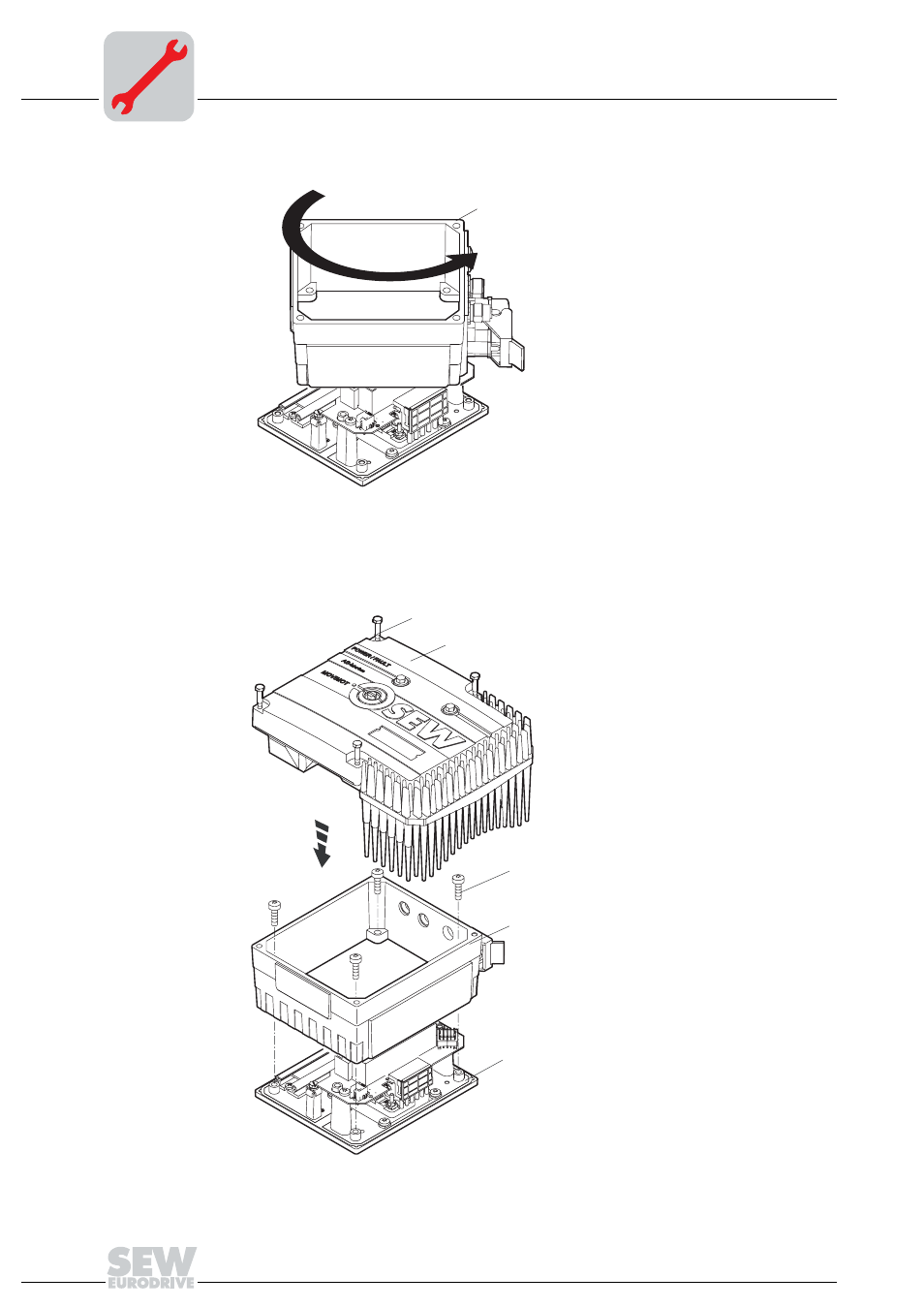

6. Turn terminal box [D] by 180°.
7. Place terminal box [D] on mounting plate [E] and fasten it with screws [C].
8. Reestablish cable connections.
9. Reattach MOVIMOT
®
inverter [B] and secure with screws [A].
51820AXX
51821AXX
180˚
[D]
[D]
[E]
[B]
[C]
[A]
