Connection between MOVIMOT® and motor mounting close to the motor
Electrical Installation of MOVIMOT® Standard Design
The ALA 4 design results in the following connection options to the motor, dependent
upon the hybrid cable used:
Design B1 B2
MOVIMOT ® ALA4 ALA4
Motor Cable gland/terminals ASB4
Hybrid cables 0 817 948 4 0 816 208 5
Additional
Information page 36 page 36

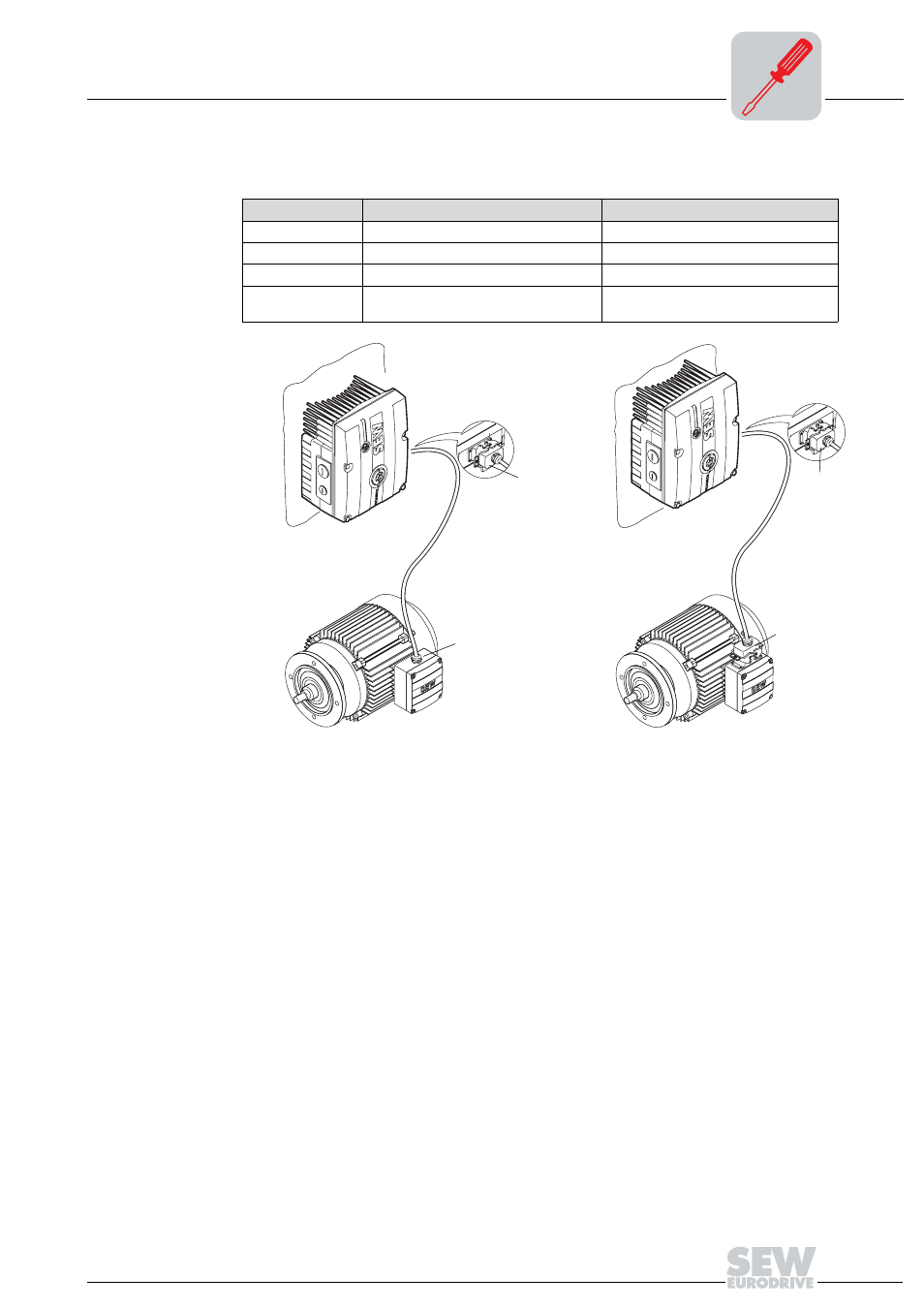

52199AXX
[1] Connection via terminals
B1 B2
ASB4
[1]
ALA4
ALA4
