Operating Instructions – MOVIMOT® MM03C - MM3XC
10
Diagnostics of MOVIMOT® with integrated AS-Interface
Diagnostics
10.2 Diagnostics of MOVIMOT
®
with integrated AS-Interface

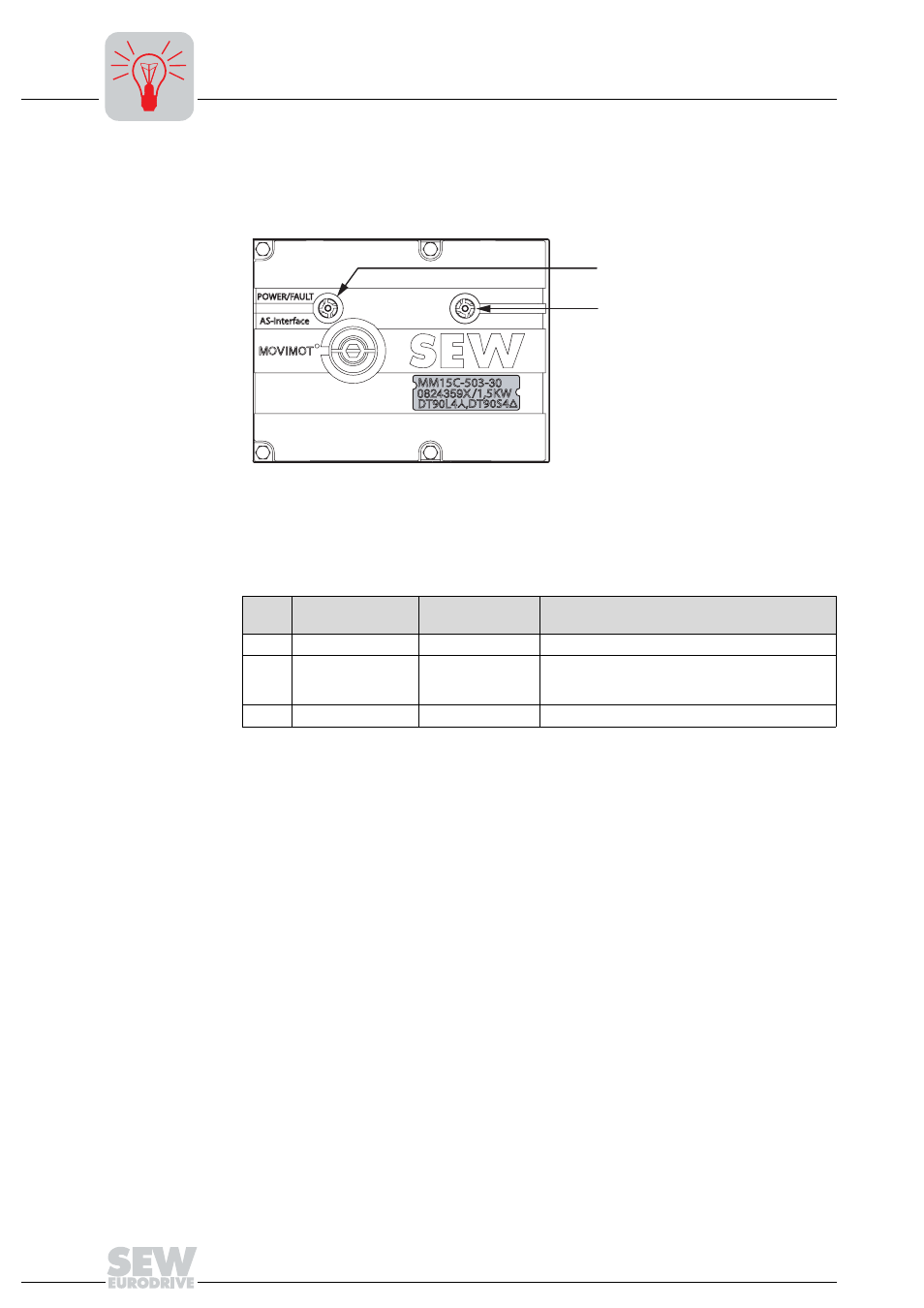

Status LED The status LED and the AS-i LED are located on the top of the MOVIMOT
®
inverter (see
the following figure).
Meaning of the
AS-i LED states
51870AXX
[1] AS-i LED
[2] MOVIMOT
®
status LED
[1]
[2]
LED
color LED status Operational status Description
– Off Not ready 24 V missing at AS-i connection
Green On Ready Normal operation
24 V present at AS-i connection
Communication present
Red On Not ready Communication is faulty or slave address 0 is set
