Operating Instructions – MOVIMOT® MM03C - MM3XC
7
Selectable special functions MM..C-503-00
Startup of Standard Design
Special function 3
MOVIMOT
®
with adjustable current limitation (switchable via terminal f1/f2), with
reduction of frequency if exceeded
Function descrip-
tion
The current limitation can be set via switch f2. The binary input terminal f1/f2 can be
used to toggle between maximum current limit and the current limitation set via switch f2.
Response after
reaching the cur-
rent limitation
•
After reaching the current limit, the unit reduces the frequency using the current lim-
itation function and if necessary stops the ramp to prevent the current from increas-
ing.
•
If the unit operates at the current limitation, the status is displayed through rapid
green flashing of the status LED.
In-system values
for setpoint f2/mini-
mum frequency
•
It is no longer possible to toggle via terminals between setpoint f1 and setpoint f2 in
terminal operation or to set the minimum frequency in bus operation.
•
The minimum frequency in bus operation is fixed at 2 Hz.

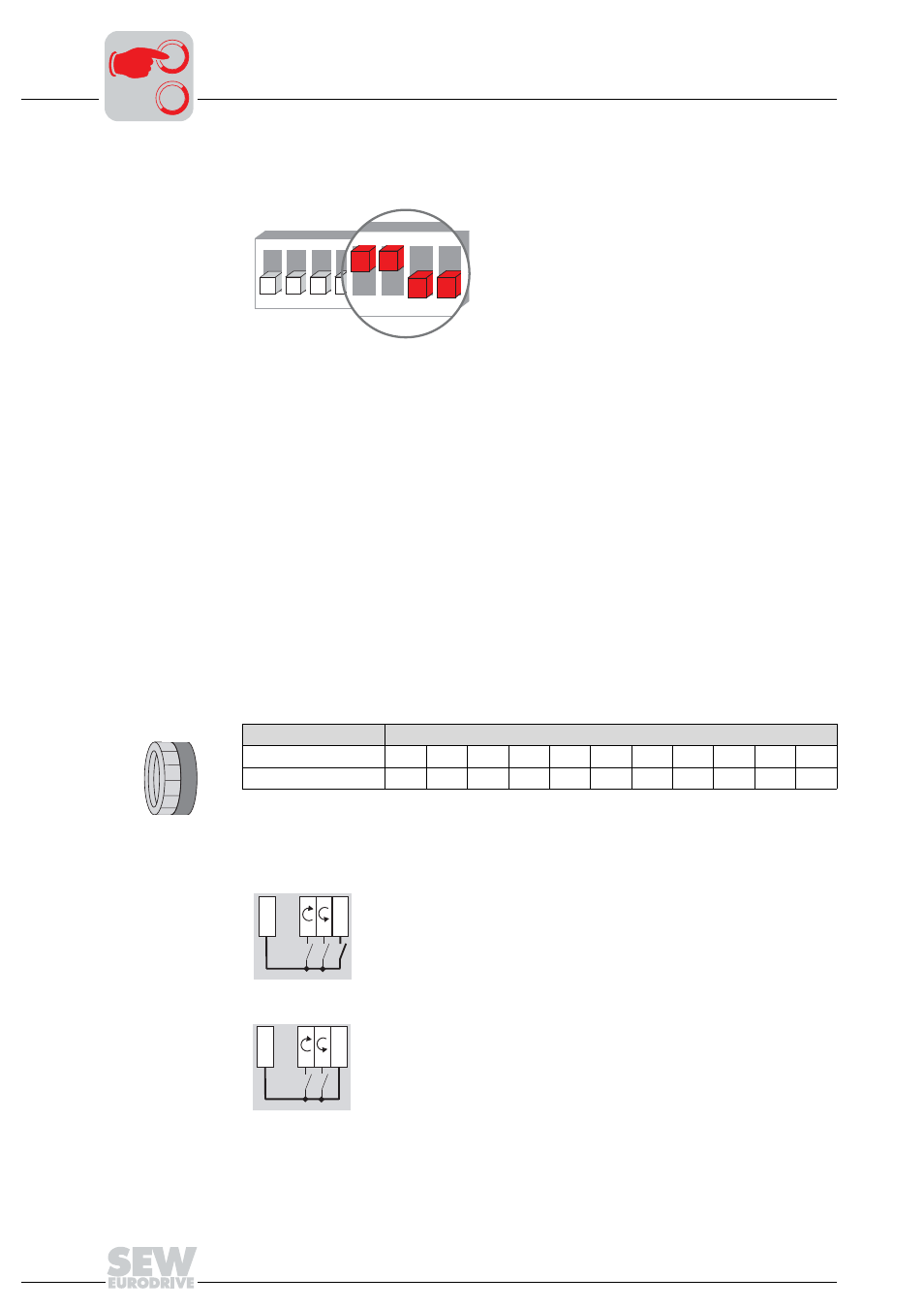

Adjustable current
limits
Selection of cur-
rent limits via
binary input termi-
nal f1/f2
05598AXX
1
6
7
8
5
4
3
2
ON
S2
6
7
8
5
3
4
5
6
7
8
Switch f2
Detent position
0
1
2
3
4
5
6
7
8
9
10
I
max
[%] of I
N
60
70
80
90
100
110
120
130
140
150
160
03819AXX
f1/f2 = "0"
160 % current limitation is active
03820AXX
f1/f2 = "1"
The current limitation set via switch f2 is active.
The selection can also be made with enabled unit.
R
L
24V
f1/f2
R
L
24V
f1/f2
0
0
I
