Operating Instructions – MOVIMOT® MM03C - MM3XC
113
8
Advanced startup with MOVITOOLS
Startup with Integrated AS-Interface

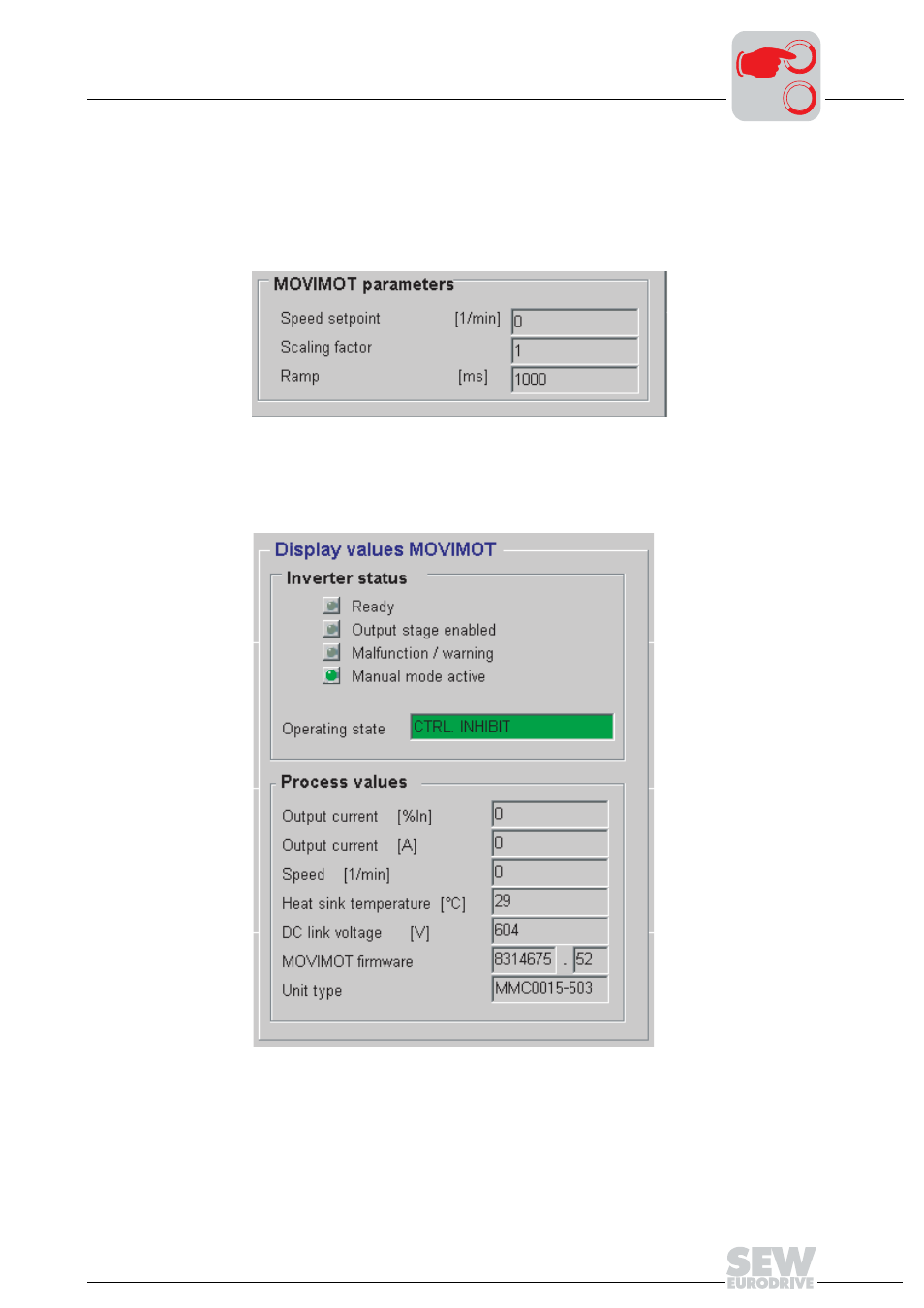

Parameter window
area • This window area displays the current speed setpoint, the scaling factor selected via
parameter bits and the ramp time set via potentiometer t1; changes cannot be per-
formed.
• If setpoint f1 is active, the effect of the scaling factor is taken into account in the
speed setpoint.
Display values win-
dow area This window area displays important information about inverter status and process val-
ues.
06371AEN
06372AEN
0 0
I
