Unit designations (MOVIMOT® with integrated AS-Interface)
Unit Design
3.4 Unit designations (MOVIMOT
®
with integrated AS-Interface)

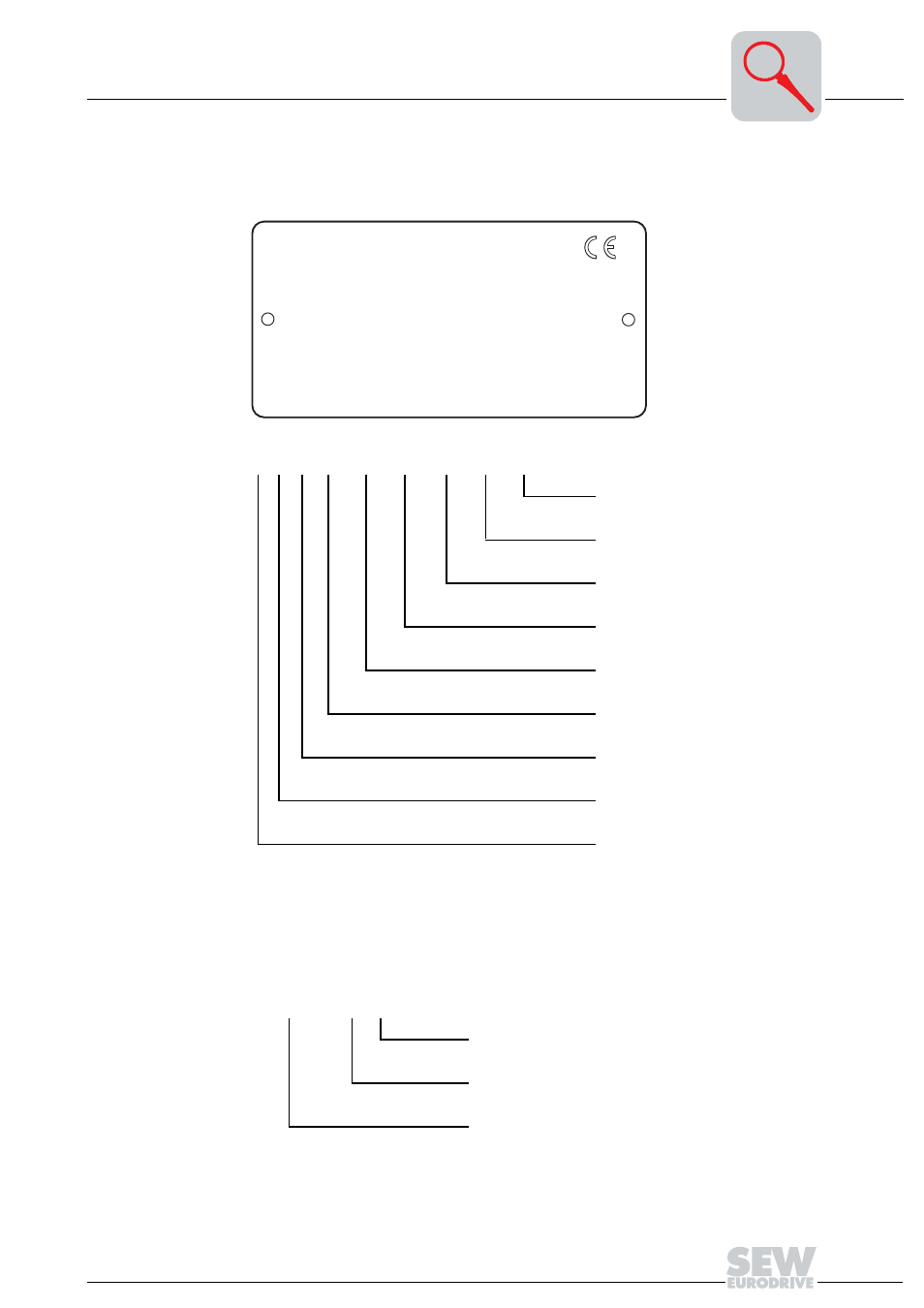

Sample motor
nameplate
Structure of sample fabrication number:
06488AXX
KA 77 DT 90L4 BMG/MM15/RJ1A/AND3/AZSK
Plug connector for AS-i and sensor
connection
Plug connector for power
Terminal box design
MOVIMOT
®
frequency inverter
Additional feature motor (brake)
Size, motor pole count
Motor series
Gear unit size 1)
1) Detailed information about geared motor combinations can be found in the catalog "MOVIMOT® Geared
Motors."
Gear unit series 2)
3009818304. 0001. 99
Final two digits of the year of manufacture
Running unit number (4 digits)
Order number (10 digits)
SEW-EURODRIVE
Typ
Nr.
KW
kg 73
50Hz
60Hz
r/min
Bremse
3009818304. 0001. 99
1,5 / 50 HZ
V 380-500
V 380-500
22/1400
V 230
Ma 665
IEC 34
B3
0,99
3,50
3,50
54
F
64,75
Kl
:1
Schmierstoff
Bruchsal / Germany
3 ~
IM
cos
A
A
IP
Gleichrichter
i
j
Nm 20
Nm
Made in Germany 184103 3.14
KA77 DT90L4/BMG/MM15/RJ1A/AND3/AZSK
