Operating Instructions – MOVIMOT® MM03C - MM3XC
25
5

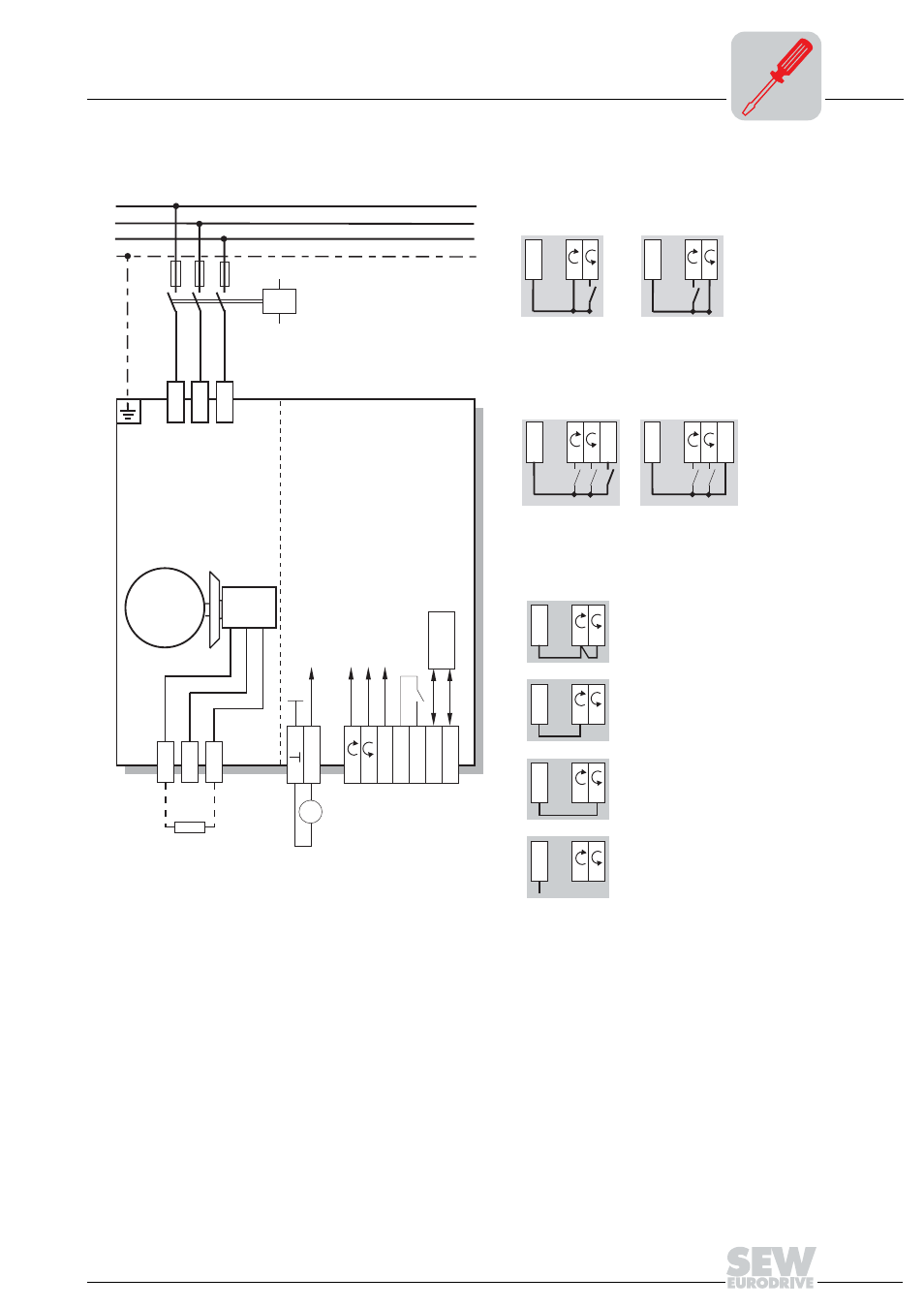

Connection of MOVIMOT® basic unit
Electrical Installation of MOVIMOT® Standard Design
5.2 Connection of MOVIMOT
®
basic unit
05614AXX
Function of terminals CW/Stop and CCW/Stop
with binary control:
Rotation
CW active Rotation
CCW active
Functions of terminals f1/f2:
Setpoint f1 active Setpoint f2 active
Function of terminals CW/Stop and CCW/Stop
with control via RS-485 interface/fieldbus:
Both directions of rotation
are enabled
Only CW rotation
is enabled,
Setpoint selections for CCW rotation
result in standstill of drive
Only CCW rotation
is enabled,
Setpoint selections for CW rotation
result in standstill
of drive
Drive is blocked or
brought to standstill
[1] 24 V
DC
supply (external or MLU../MLG.. option)
[2] CW/Stop
[3] CCW/Stop
[4] Setpoint toggle f1/f2
[5] Ready message (contact closed = ready for operation)
[6] BW.. braking resistor (in MOVIMOT
®
without mechanical brake only)
M
3~
L1
L2
L3
PE
K11
F11/F12/F13
K1
RS-485
13 14 15
L1 L2 L3
24V R L f1/f2 K1a K1b RS- RS+
=
+
-
BMG
MOVIMOT ®
RD WH
BMG
MOVIMOT ®
[1] [2] [3] [4] [5]
24 V
DC
BL
BW. [6]
R L 24V R L 24V
R L 24V f1/f2 R L 24V f1/f2
24V R L
24V R L
24V R L
24V R L
