Page 44
44
Operating Instructions – MOVIMOT® MM03C - MM3XC
6
Connection of MOVIMOT® MM../AND3/AZSK (connection option C)
Electrical Installation with Integrated AS-Interface
6.5
Connection of MOVIMOT
®
MM../AND3/AZSK (connection option C)

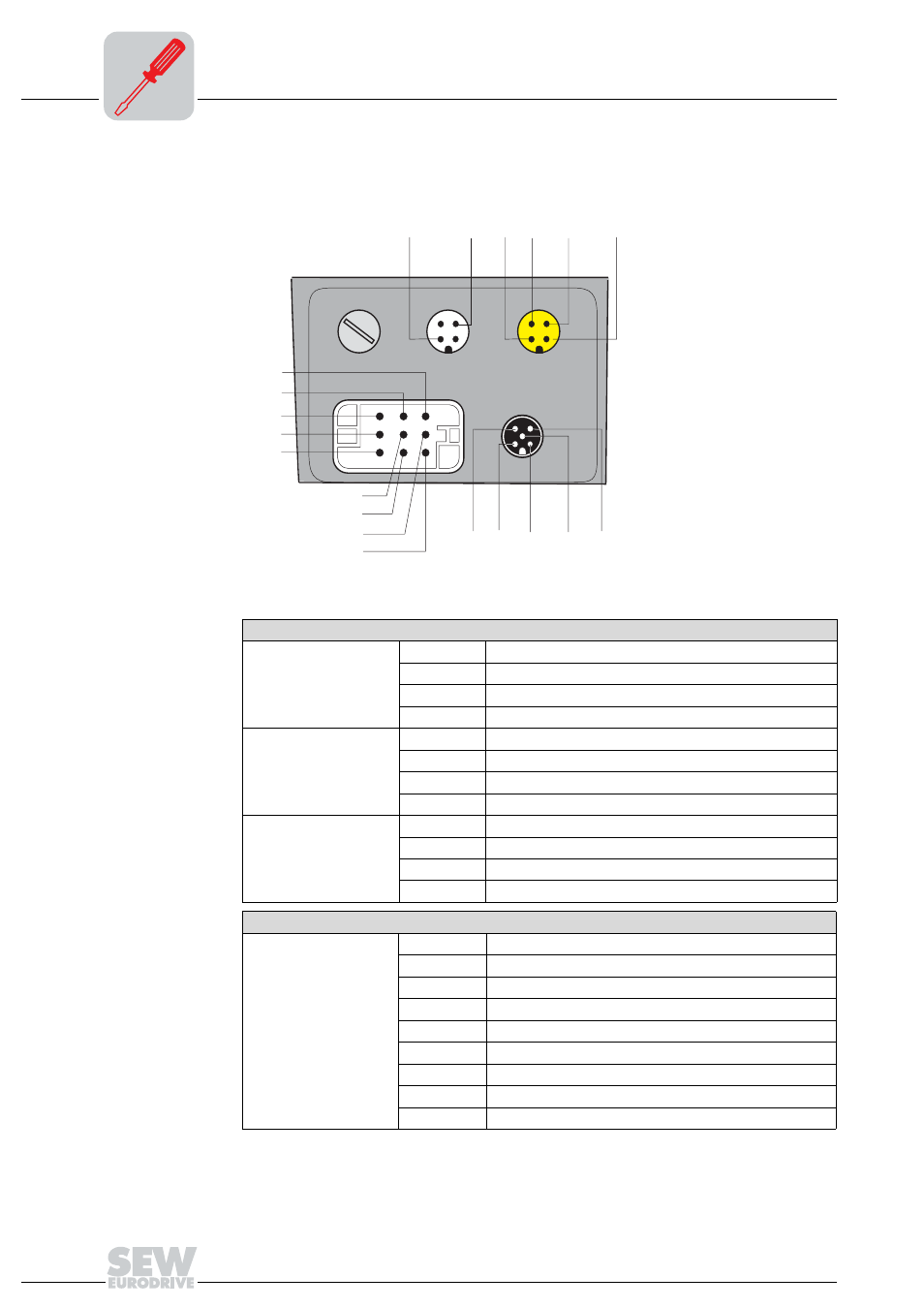

The following figure shows the connection of the MM../AND3/AZSK design.
51940AXX
AZSK plug connector
[1] M12 plug connector
(plug, black)
1
24 V
24 V supply (AUX-PWR)
2
N.C.
Not assigned
3
0 V
AUX-PWR reference potential
4
N.C.
Not assigned
[2] M12 plug connector
(plug, yellow)
1
AS-i +
AS-i data cable +
2
0 V
AUX-PWR reference potential
3
AS-i -
AS-i data cable -
4
24 V
24 V supply (AUX-PWR)
[4] M12 plug connector
(socket, black)
1
VO24
24 V voltage supply for sensors
2
DI3
Sensor input DI3
3
VO
⊥
0 V reference potential for sensors
4
DI2
Sensor input DI2
AND3 plug connector
[3] AND3 plug connector
(plug)
1
N.C.
Not assigned (reserved for N)
2
L2
Mains connection L2
3
N.C.
Not assigned
4
N.C.
Not assigned
5
N.C.
Not assigned
6
L3
Mains connection L3
7
N.C.
Not assigned
8
L1
Mains connection L1
ᛷ
PE
PE
3
1
2
4
24V
0V
ASI+
24V
ASI-
0V
0V
PE
N.C.
N.C.
L3
N.C.
N.C.
L2
L1
N.C.
DI3
DI2
24V
PE
3
1
2
4
3
1
2
4
3
1
2
4
1
2
2
1
3
3
4
4
[1]
[2]
[3]
[4]
