Page 50
50
Operating Instructions – MOVIMOT® MM03C - MM3XC
6
Connection between MOVIMOT® and motor mounting close to the motor
Electrical Installation with Integrated AS-Interface

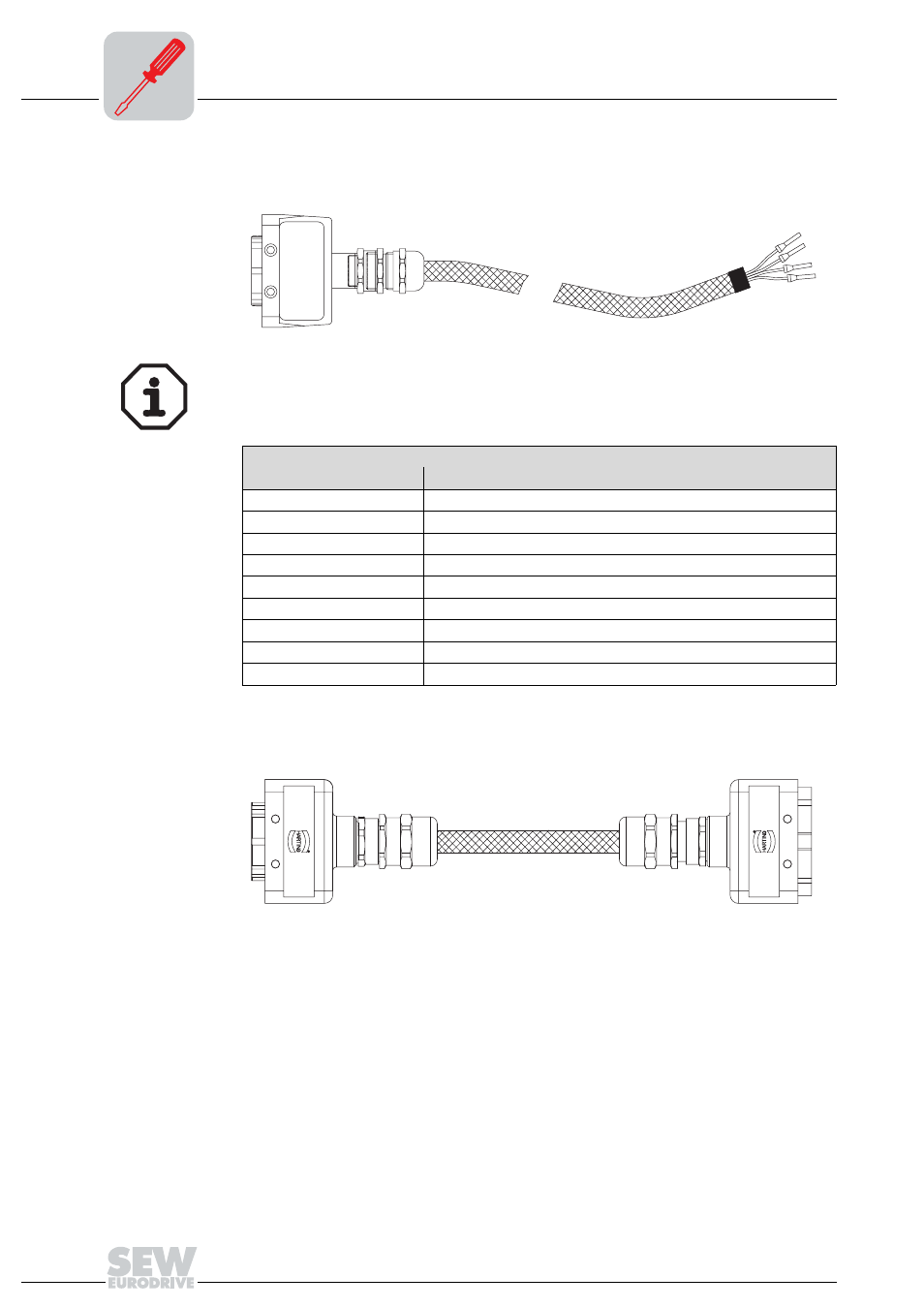

Hybrid cable
design B
•
B1 version
Part number 0 817 948 4
•
B2 version
Part number 0 816 208 5
52077AXX
The overall shield of the cable must be attached to the housing of the motor terminal box
using an EMC metal cable gland.
Cable assignment
Motor terminal
Core color / designation
U1
Black / U1
V1
Black / V1
W1
Black / W1
13
Red / 13
14
White / 14
15
Blue / 15
TH
Black / 1
TH
Black / 2
PE terminal
Green-yellow + shield end (inside shield)
52078AXX
