142
Operating Instructions – MOVIMOT® MM03C - MM3XC
11
Inspection and maintenance work on the motor
Inspection and Maintenance

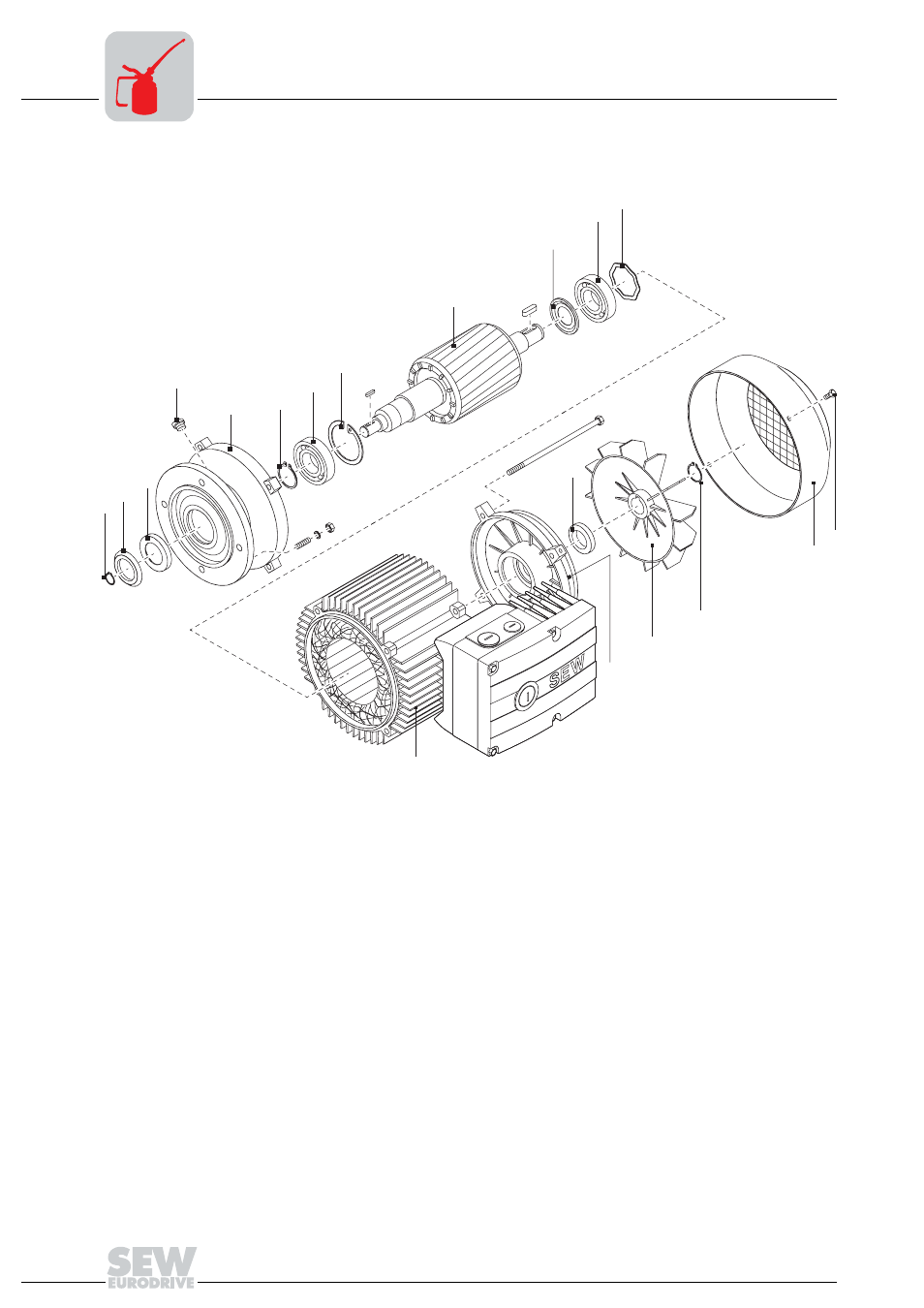

11.2 Inspection and maintenance work on the motor
02575AXX
1 Circlip
2 Oil flinger
3 Oil seal
4 Screw plug
5 Drive end bearing shield
6 Circlip
7 Ball bearing
8 Circlip
9 Rotor
10 Nilos ring
11 Ball bearing
12 Equalizing ring
13 Stator
14 Non-drive bearing shield
15 Hex head screw 16 V-ring
17 Fans
18 Circlip
19 Fan guard
20 Housing screw
1
2
3
4
5
6
7
9
10
11
12
8
13
14
17
18
19
20
16
15
