Operating Instructions – MOVIMOT® MM03C - MM3XC
41
6
Connection options with integrated AS-Interface
Electrical Installation with Integrated AS-Interface
C

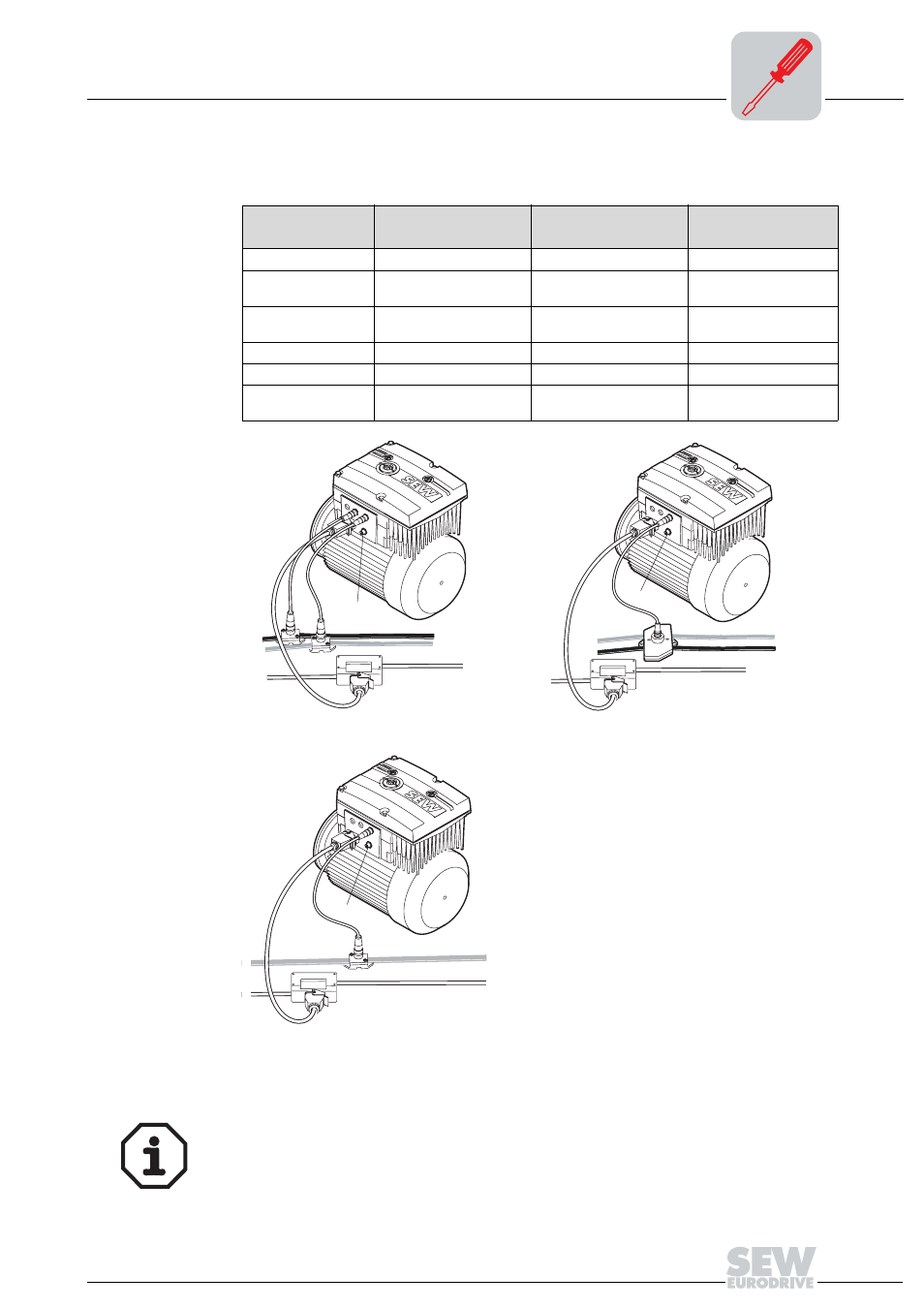

Design with AND3/AZSK plug connector
(3 x M12 plug, 1 x Han Q8/0):
Design
C1
C2
C3
Type designation
MM../RJ.A/AND3/AZSK
MM../RJ.A/AND3/AZSK
MM../RJ.A/AND3/AZSK
Switch S5
1
1
0
24 V supply
AUX-PWR cable
AUX-PWR cable (double
tap)
Yellow AS-i cable
AS-i connection
Yellow AS-i cable
Yellow AS-i cable (double
tap)
Yellow AS-i cable
Mains connection
AND3 plug connector
AND3 plug connector
AND3 plug connector
Sensor connection
M12 plug connector
M12 plug connector
M12 plug connector
Additional
Information
page 44
51761AXX
[1] Mains
2 x DI
2 x DI
AS-i (YE)
AUX-PW
(BK)
2 x DI
[1]
C1
C2
AS-i (YE)
AUX-PWR (BK)
C3
AS-i (YE)
[1]
[1]
•
The designs listed above are also valid for mounting the MOVIMOT
®
inverter with
option P2.A close to the motor.
