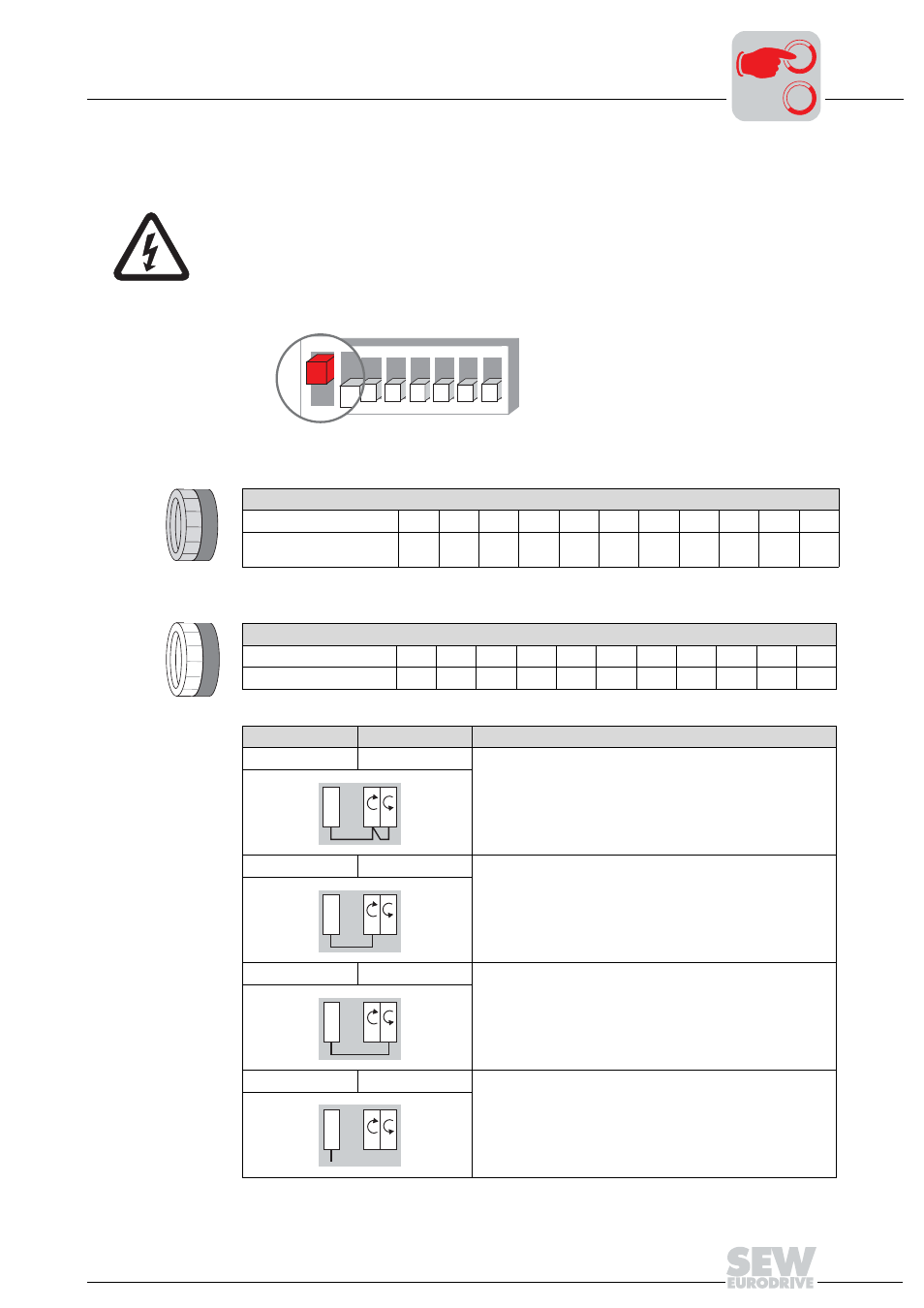

Startup with options MBG11A or MLG11A
Startup of Standard Design
7.7
Startup with options MBG11A or MLG11A
1. Isolate MOVIMOT
®
drive from the supply, safeguarding it against unintentional
power-up! Dangerous voltages may still be present for up to 1 minute after
shutdown!
2. Review correct connection of MOVIMOT
®
(see the section "Electrical Installa-
tion").
3. Set DIP switch S1/1 (on MOVIMOT
®
) to ON (= address 1).
4. Set the minimum frequency f
min
with switch f2.
5. Set the ramp time with switch t1 (ramp times in relation to a setpoint step change of
50 Hz).
6. Check whether the required direction of rotation is enabled.
05064AXX
Switch f2
Detent position
0
1
2
3
4
5
6
7
8
9
10
Minimum frequency f
min
[Hz]
2
5
7
10
12
15
20
25
30
35
40
Switch t1
Detent position
0
1
2
3
4
5
6
7
8
9
10
Ramp time t1 [s]
0.1
0.2
0.3
0.5
0.7
1
2
3
5
7
10
Terminal R
Terminal L
Message
Activated
Activated
•
Both directions of rotation are enabled
Activated
Not activated
•
Only clockwise direction of rotation is enabled
•
Preselected setpoints for counterclockwise rotation result in
standstill of drive
Not activated
Activated
•
Only counterclockwise direction of rotation is enabled
•
Setpoint selections for clockwise lead to the drive being
stopped
Not activated
Not activated
•
Unit is blocked or the drive is stopped
