62
Operating Instructions – MOVIMOT® MM03C - MM3XC
7
Selectable special functions MM..C-503-00
Startup of Standard Design
Special function 4 MOVIMOT
®
with bus parameter setting
Function descrip-
tion Potentiometer f1 and switches f2 and t1 are deactivated. The settings of the potentiom-
eter and the switches are ignored by MOVIMOT
®
. The setting of the DIP switches con-
tinues to be read in by the unit. Functions selected via DIP switches cannot be changed
using the bus.

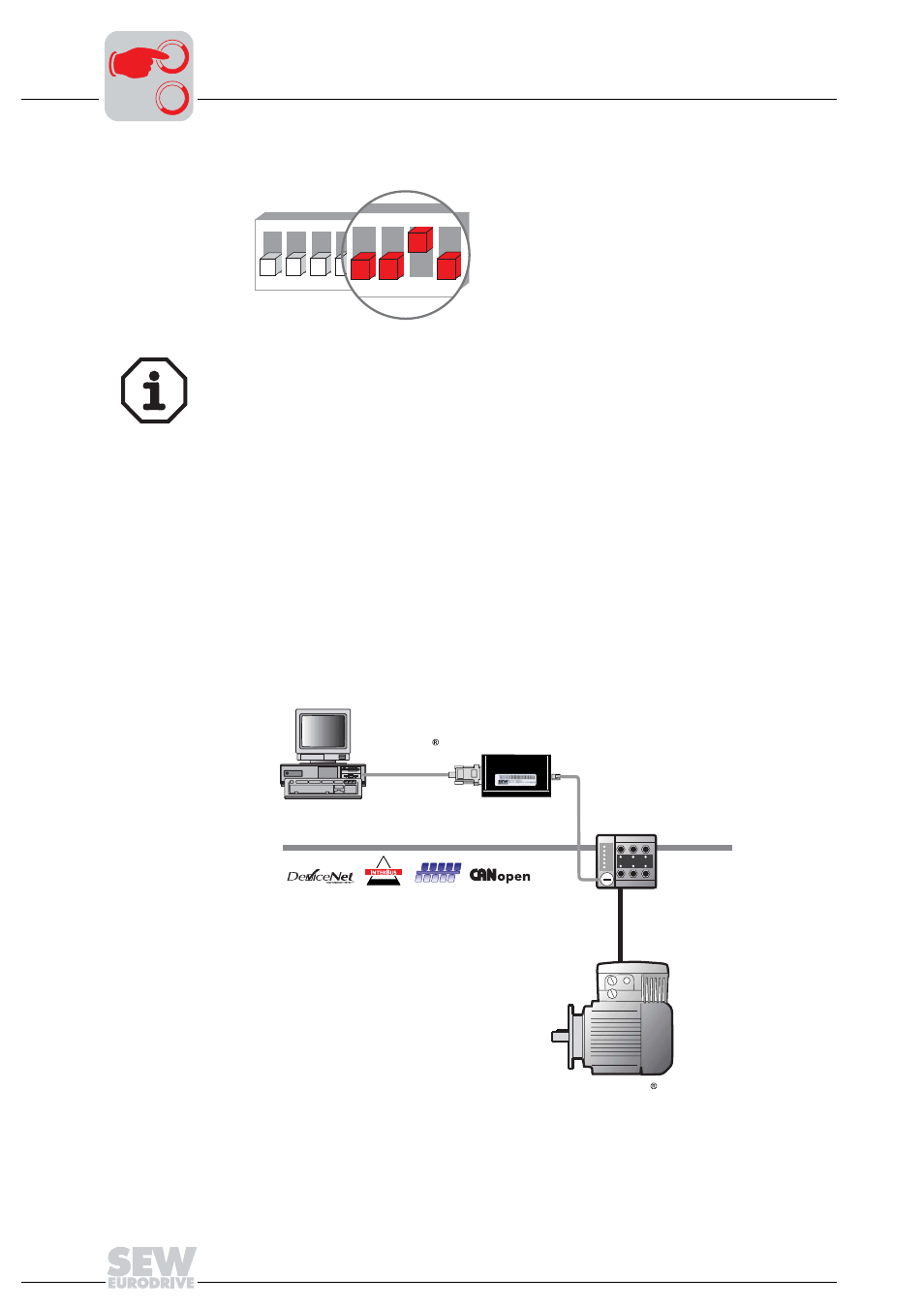

Block diagram
05599AXX
1 6 7 8 5 4 3 2
ON
S2
6 7 8 5
The function is implemented exclusively with bus operation via fieldbus interfac-
es MQ.. with integrated small control.
A parameter channel is available to operate the unit, and the values are saved in
EEPROM.
Read the following SEW-EURODRIVE manuals for additional information:
• DeviceNet/CANopen Interfaces, Field Distributors
• InterBus Interfaces, Field Distributors
• PROFIBUS Interfaces, Field Distributors
50853AXX
[1] Fieldbus
[2] Diagnostic interface
RS-485
MOVIMOT
MQ..
UWS21A
P R O F I
B U S
®
PROCESS FIELD BUS
[1]
PC +
MOVITOOLS
[2]
0 0
I
