Operating Instructions – MOVIMOT® MM03C - MM3XC

103

Startup procedure

Startup with Integrated AS-Interface

Assigning the
slave address

MOVIMOT

drives with integrated AS-Interface are supplied with address 0. The

address (address 1 to 31) can be assigned as follows:

•

Automatic address assignment within a projected AS-i system with the replacement
of a MOVIMOT

. The following requirements must be met:

– The new MOVIMOT

must have address 0.

– If several MOVIMOT

are replaced, they must be replaced one by one (in se-

quence).

•

Manual address assignment via system master (the drives must be connected to the
AS-i cable in sequence to prevent having several MOVIMOT

with the same ad-

dress).

•

Manual address assignment by means of an AS-i hand-held programming device
(before connecting the MOVIMOT

to the AS-i cable see the following section)

Assigning the
slave address via
hand-held pro-
gramming device

The AS-i hand-held programming devices offer the following functions:

•

Reading and changing an AS-i slave address

•

Reading the AS-i profile

•

Reading and changing the data and parameter bits

•

Functional test and test operation. The functional test and test operation require an
external voltage supply (AUX-PWR) since hand-held programming devices do not
supply sufficient current for operation.

The use of an addressing device requires a connecting cable that fits onto the AS-i plug
connector on the MOVIMOT

(see the following figure).

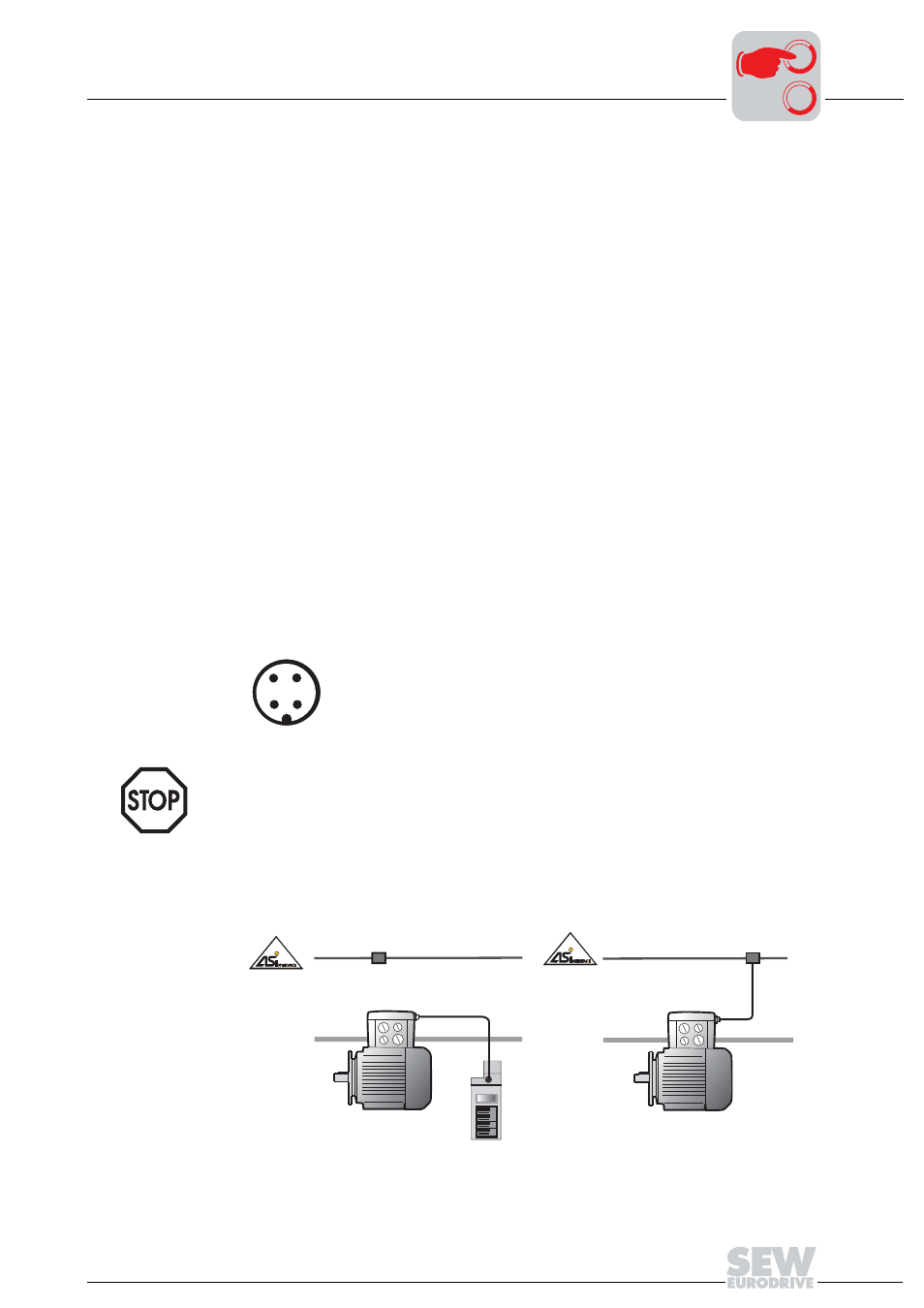

Example: Every AS-i station is individually addressed (A) and then reintegrated in the
AS-i network (B).

52149AXX

[1] Pin 2 + 4 are not required for address assignment.

1:
2:
3:
4:

AS-i +
0V24 [1]
AS-i -
24V

[1]

•

If the hand-held programming device is not floating at pin 2 + 4, pin 2 + 4 must
not be connected.

•

If addressing is carried out via hand-held programming device, switch S5 on
the wiring board must be set to position 1!

•

After addressing, switch S5 must be set according to the 24 V supply.

51894AXX

[1] AS-i hand-held programming device

[1]
