Removing the display/keypad, “front mounting, Mounting the processor unit – Rockwell Automation 1760-xxxx Pico GFX-70 Controllers User Manual User Manual
Page 42

Publication 1760-UM002B-EN-P - March 2005
2-8 Installation
Use the combination box spanner with the designation M22-MS.
Removing the Display/Keypad, “Front Mounting”
Unscrew the fixing element and remove the display/keypad.
Mounting the Processor Unit
If you wish to add expansion units to the processor unit, the DIN rail must be
fitted beforehand.
Fitting the DIN Rail
Ensure that the cutout of the DIN rail was prepared for the fixing shafts
according to the specified dimensions.

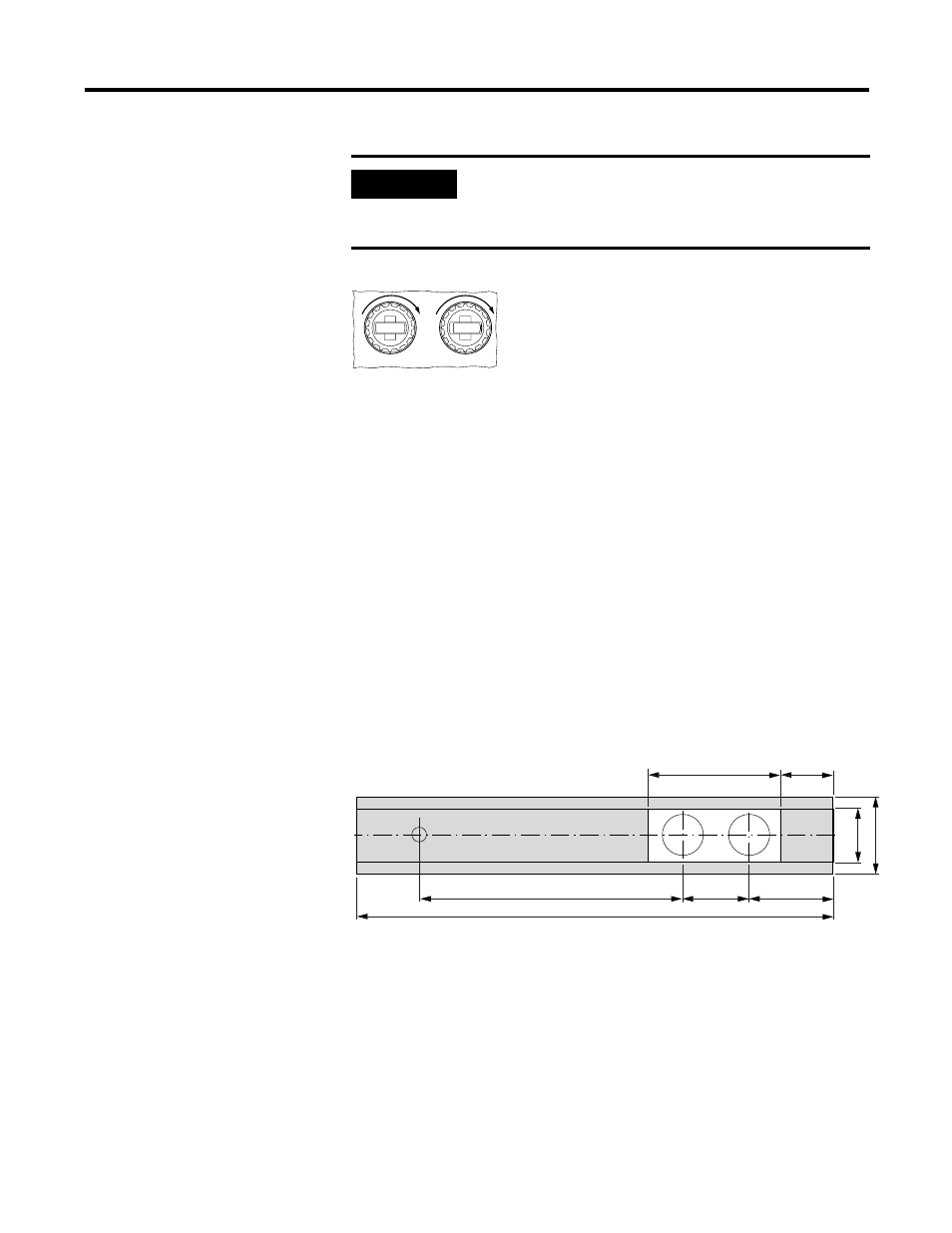

Figure 2.11 DIN rail with cutout
IMPORTANT
The tightening torque must be between 1.2 and 2 Nm.
Ensure that the correct torque is used. If the tightening
torque is too low or high, this may impair the seal.
24
35
38.75
30
120
216
23.75
60
