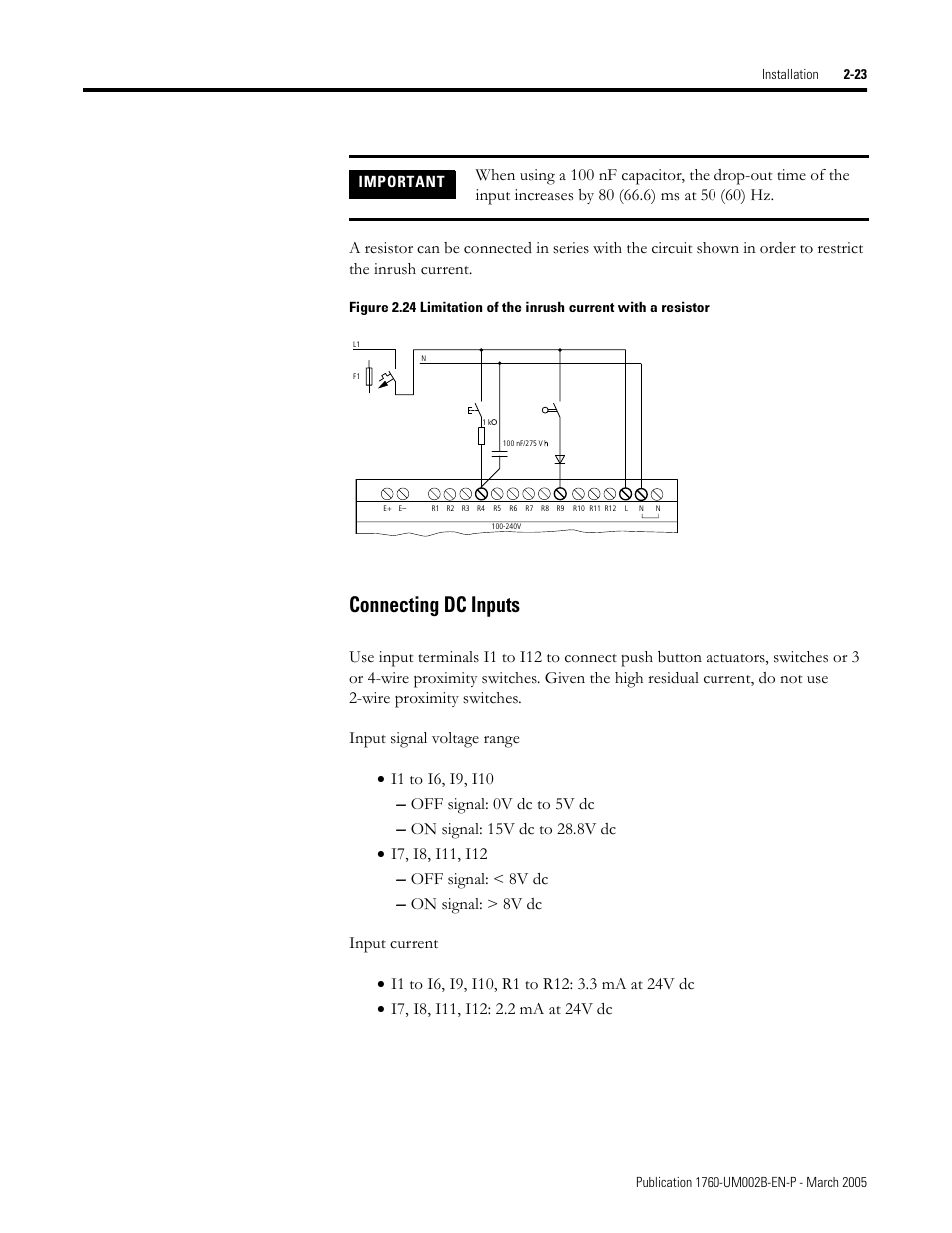

Connecting dc inputs -23, Connecting dc inputs – Rockwell Automation 1760-xxxx Pico GFX-70 Controllers User Manual User Manual
Page 57
