8 - inside pico gfx-70, Pico gfx-70 program cycle, Chapter 8 – Rockwell Automation 1760-xxxx Pico GFX-70 Controllers User Manual User Manual

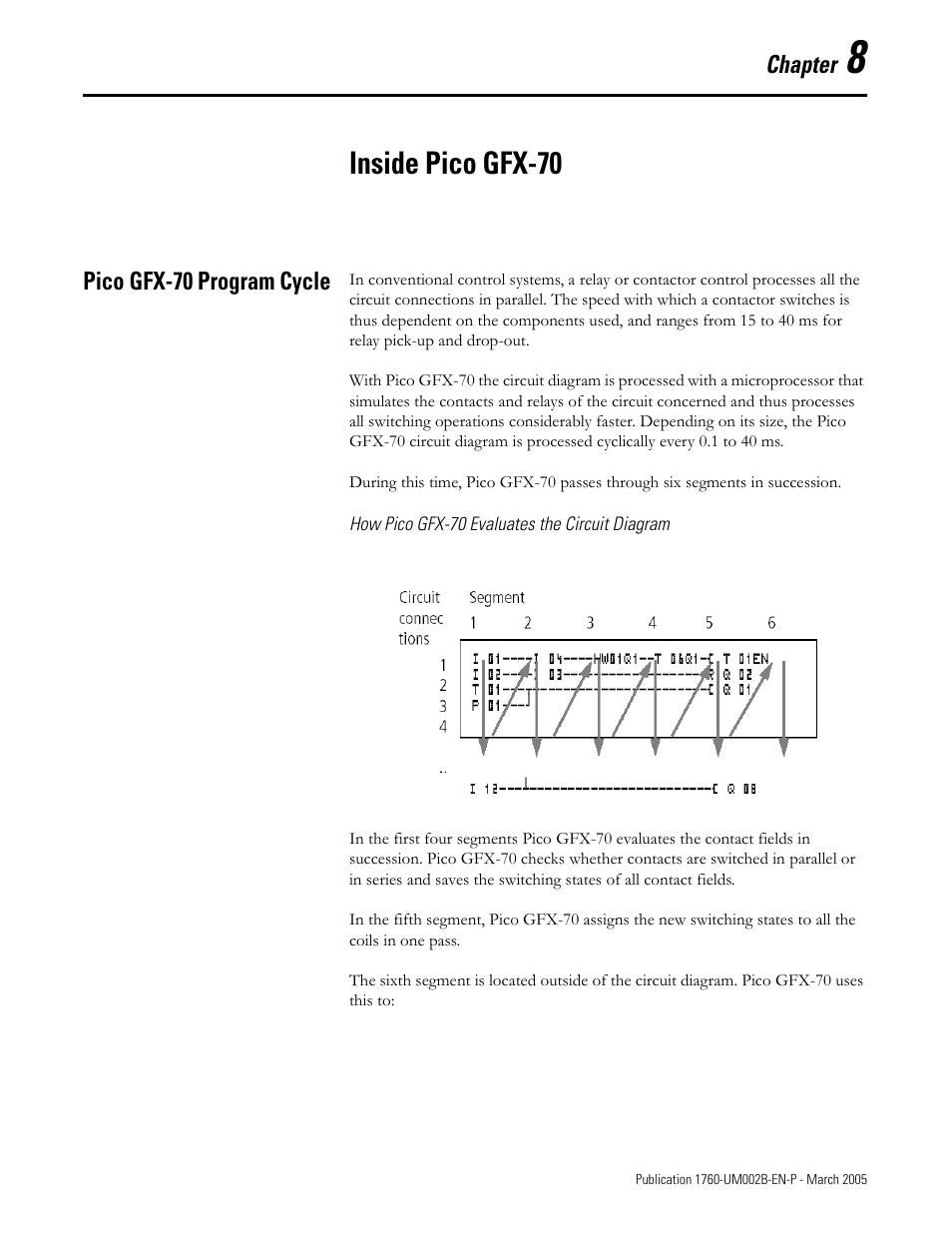

Page 355: Inside pico gfx-70, Pico gfx-70 program cycle -1
