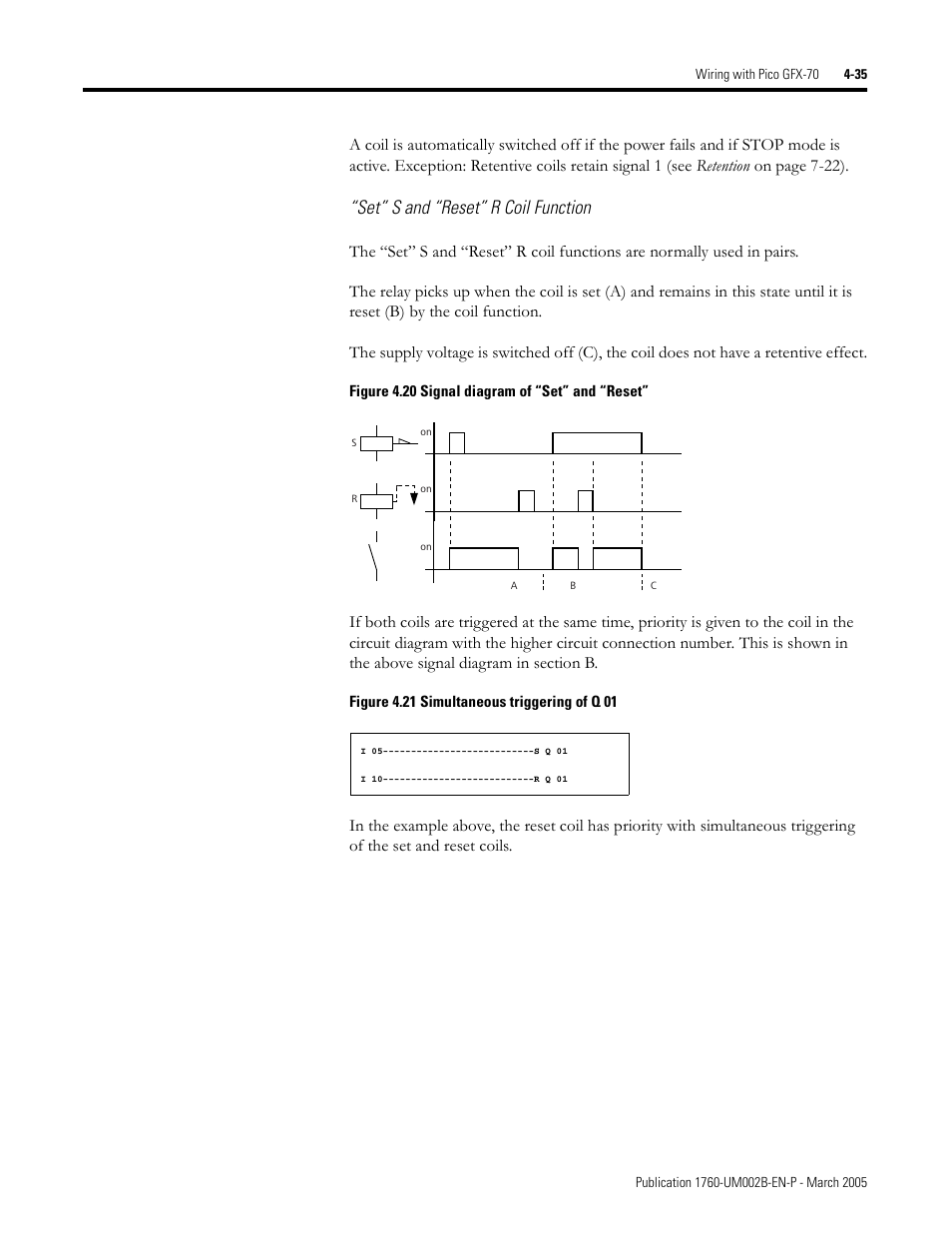

Set” s and “reset” r coil function – Rockwell Automation 1760-xxxx Pico GFX-70 Controllers User Manual User Manual
Page 145
